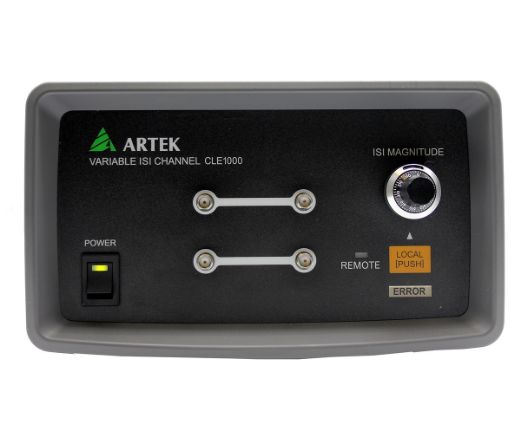

Ace Unitech, Inc. CLE1000-A2

Variable ISI Channel, SMA connector

Applied with Artek's unique technology for analog / mixed signal and advanced electro-magnetic, the CLE1000-A2 is designed as a variable Inter-Symbol-Interference (ISI) channel for high speed serial interface stress tests. The Ace Unitech CLE1000-A2 controls the insertion loss continuously at 0.1% step (1,000 steps) in its dynamic range for fine adjustment.

The differential transmission lines are totally passive and DC coupled. The adjusted insertion loss amount is reliably repeatable and stable for secure test results. The control is done by the volume dial on the front panel and/or PC remote via USB for automated calibration. Three (3) models of different loss range are prepared to cover various data rates. 4ch versions are also available. The CLE1000-A2 is a convenient ISI channel, applicable for various standard stress tests and compliance tests.

Get the Ace Unitech, Inc. CLE1000-A2 variable ISI channel for rent or purchase from TRS-RenTelco with 24/7, year-long customer support. If you wish to purchase this equipment, we also offer a 12 months part and labor warranty. The equipment is calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by an experienced team of technicians and metrologists. Request a quote today.

Read More
  • Configurations
  • Resources
  • FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable USB-A - USB-B

    Qty: 1
  • CD Product Documentation

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What is the Ace Unitech, Inc. CLE1000-A2?

It is a variable Inter-Symbol-Interference (ISI) channel designed for high-speed serial interface stress tests, offering fine adjustment of insertion loss

How does the CLE1000-A2 control insertion loss?

It controls insertion loss by 1000 steps within its dynamic range, utilizing passive and DC coupled differential transmission lines.

What are the key features of the CLE1000-A2?

The device features continuous, passive, and DC-coupled adjustment, ensuring repeatable and stable insertion loss for reliable test results.

Can the CLE1000-A2 be controlled remotely?

Yes, it supports USB interface for remote control, compatible with IEEE Std488-2/SCPI-1990, and includes a GUI for easier operation.

What are the specifications for connectors and delay on the CLE1000-A2 model?

It uses SMA female connectors and has a delay of approximately 3.8ns +/- 600ps.

What power supply does the CLE1000-A2 require?

It operates on AC 85V~264V, 50/60Hz, with a maximum power consumption of 70VA.

What are the physical dimensions of the CLE1000-A2?

The device measures 190mm in width, 110mm in height, and 400mm in depth.
