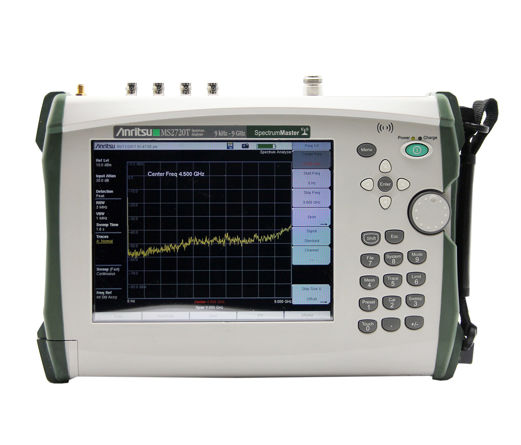

Anritsu MS2720T-743

43 GHz Hand Held Spectrum Analyzer, 2.92 mm(m)

The MS2720T-743 represents the cutting edge in spectrum analyzers from Anritsu. The MS2720T forms part of the brand's 'Spectrum Master' series of devices, and comes packed with features that make it a stand out performer.

Anritsu Spectrum Master MS2720T-743 Highlights:

  • Frequency Ranges: 9 kHz to 43 GHz
  • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Mask, Spurious Emissions, Field Strength
  • 3G and 4G Measurement options for LTE (FDD & TDD), CDMA, W-CDMA, WiMAX, GSM, and TD-SCDMA
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
  • Dynamic Range: > 106 dB in 1 Hz RBW @ 2.4 GHz
  • DANL: 164 dBm in 1 Hz RBW @ 1 GHz preamp On
  • Phase Noise: 112 dBc/Hz @ 10 kHz offset at 1 GHz
  • 1 Hz to 10 MHz Resolution Bandwidth (RBW)
  • Tracking Generator

The Anritsu MS2720T-743 is available at TRS-RenTelco for rent and lease purchase. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.

Read More
  • Configurations
  • Resources
  • FAQsAI
--, 009, 031, 431, 743
See Configuration Details
  • 009

    Demodulation Hardware

  • 031

    GPS Receiver

  • 431

    Coverage Mapping

  • 743

    Frequency Range 9 KHz to 43 GHz

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • AC Adapter

    Qty: 1
  • Adapter Automotive 12 VDC

    Qty: 1
  • Cable USB-A - USB-MiniB

    Qty: 1
  • Cable RJ45 Straight Thru

    Qty: 1
  • Bag Logo Accessory Large

    Qty: 1
  • Antenna GPS

    Qty: 1
  • Caution Card

    Qty: 1
  • Battery Lithium Ion High Capacity 81W

    Qty: 1
  • Carrycase Soft with Shoulder Strap

    Qty: 1

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What is the Anritsu MS2720T-743?

It's a high-performance handheld spectrum analyzer, part of the Spectrum Master series, optimized for field applications.

What frequency range does the MS2720T-743 cover?

The device operates from 9 kHz to 43 GHz.

What are the key features of the MS2720T-743?

Features include a dynamic range greater than 106 dB, low phase noise, and various measurement capabilities.

What applications is the MS2720T-743 suitable for?

Suitable for spectrum monitoring, interference analysis, and signal strength mapping among others.
