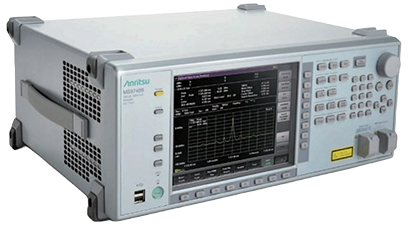

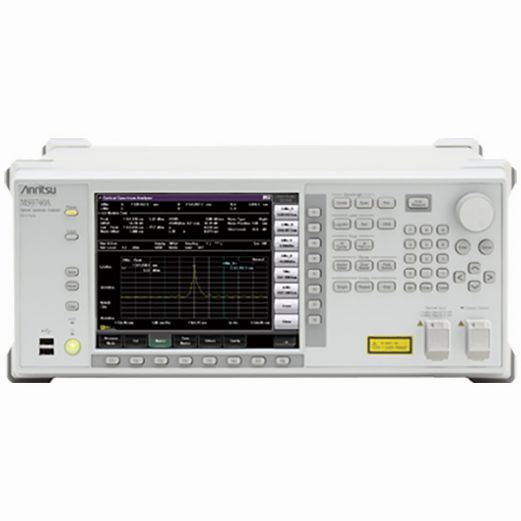

Anritsu MS9740A

Optical Spectrum Analyzer

The Anritsu MS9740A is a benchtop optical spectrum analyzer used to measure the power distribution (spectrum) of optical wavelengths, with a wavelength measurement range of 60 nm to 1750nm. The MS9740A offers high-performance optical resolution and high-speed measurements to support the needs of device and component manufacturers. With enhanced performance such as fast sweep speed, high dynamic range, superior Rx sensitivity, the MS9740A adds exceptional stability and reliability to the basic functions of a spectrum analyzer.

The MS9740A reduces the total time from waveform sweeping, and data transfer to external control equipment, while supportings simple analysis procedures, it offers excellent cost performance and better productivity. The ideal analyzer for monitoring production of optical parts and optical communications circuits, the Anritsu MS9740A, combines improved usability with better data management using the Windows OS and other interfaces, along with various applications to support users with faster and more accurate measurements.

Anritsu MS9740A - Features and Specifications:

  • Minimum resolution bandwidth of 30 pm
  • Supports single mode (SM) and multimode (MM) fibers
  • Applications dedicated for assessing active optical devices
  • High-speed measurement with sweep times of less than 300 ms/500 nm
  • Optical input of 23 dBm (200 mW) max
  • Dynamic range performance =60 dB
  • Rx Sensitivity of -90 dBm (1 pW)
  • High wavelength accuracy of plus/minus 20 pm
  • 50% less power consumption
  • Lightweight

Get the Anritsu MS9740A for rent or lease at TRS-RenTelco with 365-day customer support. Contact us to learn more or request a quote today.

Read More
  • Configurations
  • Resources
  • FAQsAI
--, 001, 002, 040
See Configuration Details
  • 001

    GPIB Interface

  • 002

    Light Source for Wavelength Calibration

  • 040

    SC Connectors

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Connector SC (Option 40)

    Qty: 2
  • Power cord Right Angle

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

Price: $30,664 $13,798

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 001, 002, 037
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Void- USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What is the wavelength range of the MS9740A?

It covers 600 nm to 1750 nm.

What dynamic range does the MS9740A support?

It offers a dynamic range up to 70 dB.

What is the minimum resolution bandwidth of the MS9740A?

The minimum resolution is 30 pm.

Can the MS9740A perform WDM analysis?

Yes, it supports WDM signal evaluation and can measure up to 300 channels.

Does the MS9740A support multimode fiber measurements?

Yes, with the Multimode Fiber Interface option.
