Product Overview
Antenna / Base Station Test Sets

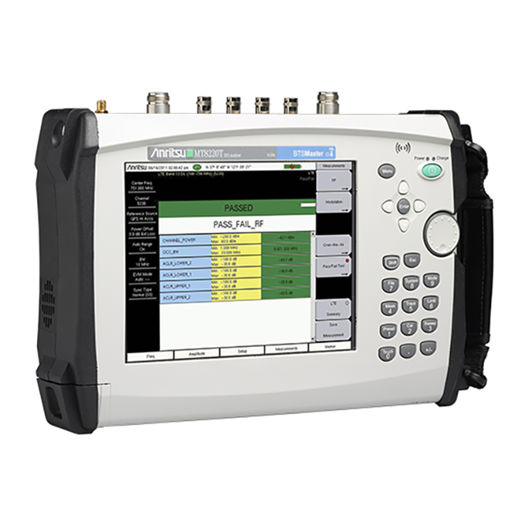

Anritsu MT8220T
Product 1

Anritsu MT8220T

BTS Master, 2-Port Cable and Antenna Analyzer (400 MHz to 6 GHz), Type N(f)
Quick Quote View Configurations

Rent or Lease

Anritsu - MT8220T

Anritsu introduces the next-generation, high-performance handheld Base Station Analyzer for installation and maintenance of wireless networks. The MT8220T BTS Master is the only all-in-one, touchscreen handheld tool that combines cable and antenna testing, signal analysis for all cellular standards, ultra-sensitive spectrum analysis, sophisticated interference tracking, and a vector signal generator for receiver testing in a compact, easy-to-use instrument.

MT8220T Product Highlights

• 400 MHz to 6.0 GHz Cable and Antenna Analyzer

• 150 kHz to 7.1 GHz Spectrum Analyzer

• 10 MHz to 7.1 GHz Power Meter

• Lightweight and Portable

Anritsu & TRS-RenTelco

TRS-RenTelco is a proud partner of Anritsu and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry.  Our close relationship with Anritsu allows us to ensure we have the right Wireless Test solution for your job.

Renting Wireless Test

With TRS-RenTelco, renting Wireless Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.

Links to Additional Information

Anritsu Products from TRS-RenTelco

Other Wireless Test from TRS-RenTelco

Anritsu Home Page



Read More
  • Configurations
  • Resources
  • FAQsAI
--, 0010, 0883, 0884, 1091-27-R, 15NN5015C, 15RCN5015R, 2000-1528R, 2000-1751R, 760-243-R, OSLN50-1
See Configuration Details
  • 0884

    CDMA/EVDO Measurements

  • 0010

    High Voltage Variable Bias Tee

  • 0883

    LTE FDD/TDD Measurements

  • 1091-27-R

    Adapter, DC to 18 GHz, N(m) to SMA(f), 50 Ohm

  • 15NN5015C

    Test Port Extension Cable, Armored

  • 15RCN5015R

    Interchangeable Adaptor Phase Stable Test Port Cables

  • 2000-1528R

    Magnet Mount GPS Antenna (Active 3-5 V) with SMA Connector and 4.6 Meters (15 Ft) Extension Cable (Required for Units with Option 31)

  • 2000-1751R

    LTE Dipole Antenna

  • 760-243-R

    Transit Case

  • OSLN50-1

    Precision N(m) Open/Short/Load, 42dB, 6.0 GHz, 50 Ohm

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • Cable Test Port Extension 6.0 GHz 1.5 m

    Qty: 1

  • Cable Ethernet Cat5 7 ft

    Qty: 1

  • Adapter N(m) - SMA(f)

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-Mini-B

    Qty: 1

  • Case Transit with 2 Plastic Accessory Boxes

    Qty: 1

  • Antenna GPS

    Qty: 1

  • Caution Card

    Qty: 1

  • n/a

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Power Supply AC/DC

    Qty: 1

  • Stylus with Coiled Tether

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Case Accessory Brown

    Qty: 2

  • Antenna LTE Dipole SMA (m) 698 MHz - 960 MHz 1710MHz - 2170 MHz 2500 MHz - 2700 MHz

    Qty: 1

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • Kit Changeable Interface - Test Port Extension Cable with 4 Different Adapters

    Qty: 1

  • Cal Kit Open Short Load 8 GHz

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0025, 0880, 0881, 0883, 0884, MA24106A
See Configuration Details
  • 0884

    CDMA/EVDO Measurements

  • MA24106A

    True-RMS USB Power Sensor, 50 MHz to 6 GHz (Includes P/N 2000-1566-R Cable)

  • 0025

    Interference Analyzer

  • 0010

    High Voltage Variable Bias Tee

  • 0019

    High Accuracy Power Meter (Requires USB Power Sensor)

  • 0880

    GSM/GPRS/EDGE Measurements

  • 0881

    WCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • AC Adapter

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Cable RJ45 Straight Thru

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Caution Card

    Qty: 1

  • Power Sensor USB

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • Cable Assembly USB-A - USB-MiniB with Thumbscrew 6 ft

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0025, 0027, 0880, 0881, 0882, 0883, 0884, MA24106A
See Configuration Details
  • 0025

    Interference Analyzer

  • 0010

    High Voltage Variable Bias Tee

  • 0019

    High Accuracy Power Meter (Requires USB Power Sensor)

  • 0027

    Channel Scanner

  • 0880

    GSM/GPRS/EDGE Measurements

  • 0881

    WCDMA/HSPA+ Measurements

  • 0882

    TD-SCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

  • 0884

    CDMA/EVDO Measurements

  • MA24106A

    True-RMS USB Power Sensor, 50 MHz to 6 GHz (Includes P/N 2000-1566-R Cable)

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • AC Adapter

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Cable RJ45 Straight Thru

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Caution Card

    Qty: 1

  • Power Sensor USB

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • Cable Assembly USB-A - USB-MiniB with Thumbscrew 6 ft

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0881, 0883, 0884, MA24106A
See Configuration Details
  • 0010

    High Voltage Variable Bias Tee

  • 0019

    High Accuracy Power Meter (Requires USB Power Sensor)

  • 0881

    WCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

  • 0884

    CDMA/EVDO Measurements

  • MA24106A

    True-RMS USB Power Sensor, 50 MHz to 6 GHz (Includes P/N 2000-1566-R Cable)

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • AC Adapter

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Cable RJ45 Straight Thru

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Caution Card

    Qty: 1

  • Power Sensor USB

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • Cable Assembly USB-A - USB-MiniB with Thumbscrew 6 ft

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0025, 0027, 0431, 0881, 0883, 0884, MA24106A
See Configuration Details
  • 0025

    Option 25; Interference Analyzer. Supplied With 3 Year Warranty Coverage.

  • 0010

    Option 10, High Voltage Variable Bias Tee

  • 0019

    Option 19, High Accuracy Power Meter (Requires Usb Power Sensor, Sold Separately)

  • 0881

    Option 881, W-Cdma/Hspa+ Measurements

  • 0883

    Option 883, Lte Fdd/Tdd Measurements

  • MA24106A

    Accessory True-Rms Usb Power Sensor, 50 Mhz To 6 Ghz (Includes P/N 2000-1566-R)

  • 0027

    Option 27; Channel Scanner. Supplied With 3 Year Warranty Coverage.

  • 0431

    Option 431; Coverage Mapping. Supplied With 3 Year Warranty Coverage.

  • 0884

    Option 884, Cdma/Ev-Do Measurements

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • AC Adapter

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Cable RJ45 Straight Thru

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Caution Card

    Qty: 1

  • Power Sensor USB

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • Cable Assembly USB-A - USB-MiniB with Thumbscrew 6 ft

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0025, 0027, 0750, 0880, 0881, 0883, 1-15NNF50, 1010-121-R, 1091-27-R, 1091-417-R, 1091-418-R, 2-15NNF50, 2000-1374-R, 2000-1412-R, 2000-1414-R, 2000-1528-R, 2000-1636-R, 2000-1659-R, 34NN50A, 42N50A-30, 633-75, 760-243-R, MA24105A, OSLN50-1, SM/PL-1
See Configuration Details
  • 0025

    Interference Analyzer

  • 0010

    High Voltage Variable Bias Tee

  • 0019

    High Accuracy Power Meter (Requires USB Power Sensor)

  • 0027

    Channel Scanner

  • 0750

    CPRI Analyzer Option

  • 0880

    GSM/GPRS/EDGE Measurements

  • 0881

    WCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

  • 1-15NNF50

    Test Port Extension Cable, Armored, 1.5 Meters, DC to 6.0 GHz, N(m) to N(f), 50 Ohm.

  • 2-15NNF50

    Test Port Extension Cable, Armored, 1.5 Meters, DC to 6.0 GHz, N(m) to N(f), 50 Ohm.

  • 1091-27-R

    Adapter, DC to 18 GHz, N(m) to SMA(f), 50 Ohm

  • 1091-417-R

    Adapter, DC to 6 GHz, N(m) to QMA(f), 50 Ohm

  • 1091-418-R

    Adapter, DC to 18 GHz, N(m) to QMA(m), 50 Ohm

  • 42N50A-30

    Attenuator, 30 dB, 50 Watt, DC to 18 GHz, N(m) to N(f)

  • 34NN50A

    Prec is ion Adapter, DC to 18 GHz, N(m) to N(m), 50 Ohm.

  • 633-75

    Battery Pack, 7500 mAh

  • 760-243-R

    Transit Case

  • MA24105A

    Inline Peak Power Sensor, 350 MHz to 4 GHz (Includes 2000-1606-R Cable).

  • OSLN50-1

    Precision N(m) Open/Short/Load, 42dB, 6.0 GHz, 50 Ohm

  • SM/PL-1

    Precision N(m) Load, 6.0 GHz, 42dB

  • 1010-121-R

    Attenuator, 40 dB, 100 Watt, DC to 18 GHz, N(m) to N(f), Uni-Directional

  • 2000-1374-R

    External Charger for Li-Lon Batteries

  • 2000-1412-R

    Portable Yagi Antenna, 885 to 975 MHz, N(f), 10 dBd.

  • 2000-1414-R

    Portable Yagi Antenna, 1850 to 1990 MHz, N(f), 9.3 dBd.

  • 2000-1528-R

    Magnet Mount GPS Antenna (Active 3-5 V) with SMA Connector and 4.6 Meters (15 Ft) Extension Cable (Required for Units with Option 31)

  • 2000-1636-R

    Antenna Kit

  • 2000-1659-R

    Portable Yagi Antenna 698 to 787 MHz, N(f), 8 dBd.

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Load Precision 6 GHz Ret Loss 42 dB N(m)

    Qty: 1

  • Cord Power

    Qty: 2

  • Cable Test Port Extension

    Qty: 2

  • Adapter Precision N(m) - N(m) DC - 18 GHz

    Qty: 1

  • Attenuator Precision 30 dB 50 W

    Qty: 1

  • Charger Dual with AC Adapter and Power Cord

    Qty: 1

  • AC Adapter

    Qty: 1

  • Adapter N(m) - SMA(f)

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Antenna 2.4 GHz - 2.5 GHz

    Qty: 1

  • Antenna 896 MHz - 941 MHz

    Qty: 1

  • Antenna 806 MHz - 869 MHz

    Qty: 1

  • Antenna 1.71 GHz - 1.88 GHz

    Qty: 1

  • Antenna 1.85 GHz - 1.99 GHz

    Qty: 1

  • Antenna 2400-2500 MHz & 5725-5825 MHz antenna

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Case Transit with 2 Plastic Accessory Boxes

    Qty: 1

  • Cable RJ45 Straight Thru

    Qty: 1

  • Accessory Bag with Logo Small 18 in x 15 in

    Qty: 1

  • Antenna GPS

    Qty: 1

  • Caution Card

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 2

  • Case Accessory Brown

    Qty: 2

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • Cable USB InteRFace Power Sensor

    Qty: 1

  • Case Soft

    Qty: 1

  • Power Sensor Inline Peak

    Qty: 1

  • Adapter QMA(m) - N(m)

    Qty: 1

  • Adapter QMA(f) - N(m)

    Qty: 1

  • Attenuator Fixed DC 18 GHz 40 dB 100 W

    Qty: 1

  • Antenna Directional YAGI 1850 MHz - 1990 MHz 9.3 dBd - 11.4 dB i (N(f) Connector )

    Qty: 1

  • Antenna Directional YAGI 885 MHz - 975 MHz 10.2 dBd - 12.3 dB i (N(f) Connector )

    Qty: 1

  • Antenna Directional YAGI 689 MHz - 787 MHz 8 dBd (6-Element)

    Qty: 1

  • Void SOFTWARE AND MANUALS ON USB

    Qty: 1

  • Cal Kit Open Short Load 8 GHz

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0025, 0027, 0881, 0883, 0884
See Configuration Details
  • 0881

    WCDMA/HSPA+ Measurements

  • 0010

    High Voltage Variable Bias Tee

  • 0025

    Interference Analyzer

  • 0027

    Channel Scanner

  • 0883

    LTE FDD/TDD Measurements

  • 0884

    CDMA/EVDO Measurements

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • Adapter 7/16 DIN(m) - N(m)

    Qty: 1

  • Adapter 7/16 Din(m) - N(f)

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Antenna GPS

    Qty: 1

  • Caution Card

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Power Supply AC/DC

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Adapter 7/16 Din(m) - 7/16 DIN(m)

    Qty: 1

  • Adapter 7/16 Din(f) - N(m)

    Qty: 1

  • Adapter 7/16 Din(m) - 7/16 Din(f)

    Qty: 1

  • Adapter 7/16 Din(f) - 7/16 Din(f)

    Qty: 1

  • Adapter 7/16 Din(f) - N(f)

    Qty: 1

  • Cal Kit Open Short Load 8 GHz

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0025, 0027, 0431, 0752, 0759, 0760, 0881, 0883, 0884, 2-15RNFNF50-1.5-R, 2000-1528-R, 760-243-R, MA24106A, OSLN50A-8
See Configuration Details
  • 0025

    Interference Analyzer

  • 0010

    High Voltage Variable Bias Tee

  • 0019

    High Accuracy Power Meter (Requires USB Power Sensor)

  • 0027

    Channel Scanner

  • 0431

    Coverage Mapping

  • 0752

    CPRI LTE RF Software (Requires Option 759)

  • 0759

    RF Over Fiber Hardware (Must Be Ordered with Option 752 or 753)

  • 2-15RNFNF50-1.5-R

    Test Port Extension Cable, Armored, with Reinforced Grip, 1.5 Meters, N(m) to N(f), 6 GHz, 50 Ohm.

  • 0760

    BBU Emulation Alcatel-Lucent (Nokia) LTE (Requires Option 752 CPRI RF Measurements).

  • 0881

    WCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

  • 0884

    CDMA/EVDO Measurements

  • OSLN50A-8

    Precision N(m) Open/Short/Load, 42dB, 8.0 GHz, 50 Ohm.

  • 2000-1528-R

    Magnet Mount GPS Antenna (Active 3-5 V) with SMA Connector and 4.6 Meters (15 Ft) Extension Cable (Required for Units with Option 31)

  • 760-243-R

    Transit Case

  • MA24106A

    True-RMS USB Power Sensor, 50 MHz to 6 GHz (Includes P/N 2000-1566-R Cable)

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • Cable Ethernet Cat5 7 ft

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Case Transit with 2 Plastic Accessory Boxes

    Qty: 1

  • Caution Card

    Qty: 1

  • Power Sensor USB

    Qty: 1

  • Cable Test Port Extension

    Qty: 2

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Power Supply AC/DC

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Case Accessory Brown

    Qty: 2

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • N Tap Three Channel 9UM/SM/LC 50/50 Split Ratio

    Qty: 1

  • Void- USB Drive with Software and Manuals

    Qty: 1

  • Cal Kit Open Short Load 8 GHz

    Qty: 1

  • Void- SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0025, 0027, 0752, 0759, 0760, 0761, 0881, 0883, 2-15RNFNF50-1.5-R, 2000-1528-R, 760-243-R, MA24106A, OSLN50A-8
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Void- SOFTWARE AND MANUALS ON USB

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Void- USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, MA24106A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0019, 0025, 0431, 0883, MA24106A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0880, 0881, 0882, 0883, 0884, MA24106A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0881, 0883, MA24106A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0019, 0025, 0431, 0881, 0883, 0884, MA24106A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0025, 0027, 0883, 0884
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Void- SOFTWARE AND MANUALS ON USB

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0751, 0760
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Battery Lithium Ion High Capacity 81W

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0019, 0881, 0883, 0884, 0886, MA24106A
See Configuration Details
  • 0010

    High Voltage Variable Bias Tee

  • 0019

    High Accuracy Power Meter (Requires USB Power Sensor)

  • 0881

    WCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

  • 0884

    CDMA/EVDO Measurements

  • 0886

    256-QAM Demodulation

  • MA24106A

    True-RMS USB Power Sensor, 50 MHz to 6 GHz (Includes P/N 2000-1566-R Cable)

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • Cable Assembly USB-A - USB-MiniB with Thumbscrew 6 ft

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Antenna GPS +2.5 VDC - 3.7 VDC

    Qty: 1

  • AC Adapter

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Power Sensor USB

    Qty: 1

  • Caution Card

    Qty: 1

  • Cable RJ45 Straight Thru

    Qty: 1

  • USB Drive with Software and Manuals

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 0010, 0025, 0027, 0881, 0883, 0884, 0886
See Configuration Details
  • 0010

    High Voltage Variable Bias Tee

  • 0025

    Interference Analyzer

  • 0027

    Channel Scanner

  • 0881

    WCDMA/HSPA+ Measurements

  • 0883

    LTE FDD/TDD Measurements

  • 0884

    CDMA/EVDO Measurements

  • 0886

    256-QAM Demodulation

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.

  • Cord Power

    Qty: 1

  • Antenna GPS

    Qty: 1

  • Carrycase Soft with Shoulder Strap

    Qty: 1

  • Power Supply AC/DC

    Qty: 1

  • Battery Lithium Ion High Capacity 81W

    Qty: 1

  • Adapter Automotive 12 VDC

    Qty: 1

  • Cable USB-A - USB-MiniB

    Qty: 1

  • Bag Logo Accessory Large

    Qty: 1

  • Adapter 7/16 Din(m) - 7/16 DIN(m)

    Qty: 1

  • Adapter 7/16 Din(f) - 7/16 Din(f)

    Qty: 1

  • Adapter 7/16 Din(m) - 7/16 Din(f)

    Qty: 1

  • Adapter 7/16 Din(f) - N(m)

    Qty: 1

  • Adapter 7/16 Din(f) - N(f)

    Qty: 1

  • Adapter 7/16 DIN(m) - N(m)

    Qty: 1

  • Adapter 7/16 Din(m) - N(f)

    Qty: 1

  • Caution Card

    Qty: 1

  • Cal Kit Open Short Load 8 GHz

    Qty: 1

  • SOFTWARE AND MANUALS ON USB

    Qty: 1
Rent or Lease

Add to cart to request a quote.

Add to Cart
*This item has already been added to your cart. Check your cart for quantity and availability.
View More
document

Anritsu MT8220T Spec Sheet

Download Now
Show More

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What is the Anritsu MT8220T BTS Master and what testing capabilities does it combine?

The Anritsu MT8220T BTS Master is a high-performance handheld base station analyzer that combines cable and antenna testing (400 MHz to 6 GHz), spectrum analysis (150 kHz to 7.1 GHz), a power meter (10 MHz to 7.1 GHz), and signal analysis for all major cellular standards into a single touchscreen instrument. It is specifically designed for installation and maintenance of wireless networks, with unique capabilities including CPRI and OBSAI LTE RF measurements, BBU emulation, PIM over CPRI, remote electrical tilt antenna control, and a built-in vector signal generator for receiver testing.

What cable and antenna analyzer measurements can the MT8220T perform?

The MT8220T cable and antenna analyzer operates from 400 MHz to 6 GHz and supports VSWR, return loss, cable loss, distance-to-fault (both VSWR and return loss modes), 1-port and 2-port phase, 2-port gain, and Smith Chart measurements. It achieves greater than 100 dB 2-port dynamic range (110 dB typical) from 400 MHz to 2800 MHz, with 2-port gain measurement uncertainty under 0.45 dB. Calibration options include both standard OSL and FlexCal methods.

What spectrum analyzer sensitivity and dynamic range does the MT8220T achieve?

The MT8220T spectrum analyzer covers 150 kHz to 7.1 GHz and achieves a DANL of negative 137 dBm maximum from 3 MHz to 1 GHz with preamp off, improving to negative 161 dBm maximum (negative 163 dBm typical) with the standard internal preamp enabled. Dynamic range exceeds 95 dB at both 600 MHz and 3.5 GHz, calculated as 2/3 (TOI minus DANL) in 1 Hz RBW. SSB phase noise is negative 100 dBc/Hz at 10 kHz offset from the carrier.

What CPRI and fronthaul testing capabilities does the MT8220T support?

With Option 752, the MT8220T performs CPRI LTE RF measurements directly over the fiber link between the baseband unit and remote radio head. Option 753 adds OBSAI LTE RF measurements for networks using that standard. Option 760 provides BBU emulation for Nokia and ALu LTE systems, allowing technicians to activate and test remote radio heads without a live baseband unit. Option 754 enables PIM over CPRI measurements to detect passive intermodulation issues through the digital interface.

How does the MT8220T interference analyzer identify and locate interference sources?

The MT8220T interference analyzer (Option 25) provides spectrogram data collection for up to one full week, RSSI logging over the same extended period, and signal strength indication with both visual and aural feedback for walking toward a source. Its Signal ID feature can identify up to 12 simultaneous FM, GSM, W-CDMA, CDMA, or Wi-Fi signals based on their RF bandwidth characteristics. Interference mapping plots signal strength bearings from GPS locations on an on-screen map with triangulation to pinpoint the source.

What vector signal generator features does the MT8220T offer for receiver testing?

The MT8220T vector signal generator (Option 23) covers 400 MHz to 6 GHz with CW output power from negative 124 dBm to 0 dBm and modulated output to negative 8 dBm. It supports signal bandwidths up to 10 MHz for a single signal or two 5 MHz signals simultaneously, plus additive white Gaussian noise. Standard modulation patterns include W-CDMA Pilot, EDGE, DECT, DVB-C, and various AM/FM/pulsed CW formats, with CW level accuracy of plus or minus 1.0 dB from 400 MHz to 2 GHz.

What RF immunity does the MT8220T cable and antenna analyzer provide near active transmitters?

The MT8220T is designed to operate near active base station transmitters without measurement corruption. It provides on-channel interference immunity up to +17 dBm at distances greater than 1.0 MHz from the carrier frequency, and on-frequency immunity up to +10 dBm within plus or minus 10 kHz of the carrier. This high RF immunity, combined with selectable high and low output power modes and adjustable RF immunity settings, makes it well suited for testing antennas and feedlines on live cell sites.

What are the physical dimensions, weight, and battery life of the MT8220T?

The MT8220T measures 315 mm x 211 mm x 102 mm (12.4 in x 8.3 in x 4.0 in) and weighs 4.7 kg (10.3 lb), maintaining a handheld form factor despite its comprehensive multi-function capabilities. Battery operation time is 2.5 hours, and the instrument reaches full specified performance after less than 5 minutes of warm-up (10 minutes for all specifications). Data transfer is supported via both Ethernet and USB, and it comes backed by a standard 3-year warranty.
