Anritsu MT8862A
Wireless Connectivity Test Set
Rent or Lease

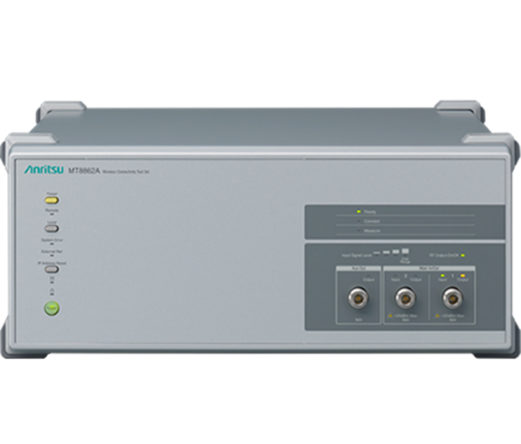

Anritsu - MT8862A
The Wireless Connectivity Test Set MT8862A (WLAN Tester) is for measuring the RF TRx characteristics of WLAN IEEE 802.11a/b/g/n/ac/ax/be (2.4 GHz, 5 GHz and 6 GHz bands) devices. The MT8862A has standard WLAN protocol messages (WLAN Signalling) to connect with the device under test (DUT) for measuring each TRx performance item as Network Mode, and features built-in Direct Mode to support flexible test environment.
MT8862A Product Highlights
- RF Performance Measurement under Realistic Operation Conditions (Network Mode)
By using the MT8862A Network Mode, RF TRx characteristics, such as Tx power, modulation accuracy (EVM), etc., can be measured with the WLAN devices in realistic operation conditions. No necessary to put the DUT into a dedicated test mode with directly controlling the DUT, the DUT RF performance can be quantified under the firmware conditions at actual shipment.
- Wi-Fi 7 RF Evaluation Capability with Network Mode
Because WLAN signal quality characteristics vary with each data rate, per-data-rate signal evaluation is very important. The MT8862A enables RF evaluation at all data rates of the major WLAN standards including Wi-Fi 7 by the per-data-rate signal control technology.
- Easy Measurement Environment Configuration
The MT8862A can simulate access points (AP) and stations (STA) to establish the DUT network connection using IEEE 802.11a/b/g/n/ac/ax/be WLAN protocol messaging. When the connection is established, RF measurements can be made using general WLAN communications procedures without requiring special tools and control procedures, eliminating the need for configuring a special measurement environment.
- 2x2 MIMO Rx sensitivity and Tx power measurement functions
Measures Rx sensitivity and Tx power at 2x2 MIMO communications using two MT8862A units; ideal for evaluating RF characteristics of finished products at 2x2 MIMO communications
- Device Measurement with encrypted signal
The WEP, WPA-Personal, WPA2-Personal and WPA3-Personal encoding technologies are supported to enable connection and measurement without disabling DUT security settings.
- Unique Data Rate Control Algorithm for Tx Measurements
The MT8862A has a unique built-in algorithm for controlling the data rate to perform Tx measurements in the Network Mode at the user-specified data rate.
- Rx Sensitivity Measurements using ACK Frame Count for Bathtub Curve Generation
The MT8862A supports Rx sensitivity measurements using the ACK frame count; counting the ACK frames sent by the DUT versus the test packets sent from the MT8862A supports calculation of the packet error rate (PER). Packets can be sent while lowering the power level by setting the power level range (-120 to 0 dBm) and step size, and the Rx sensitivity Bathtub curve can be generated automatically. Packets including MAC address and payload length can be configured in real-time for measurement at various data rates.
- Web Browser GUI Operation Immediately after Connection
Connect the MT8862A to the external PC using an Ethernet cable for instant access from the Web browser to complete setup of the GUI operation environment without requiring test setup operation.
The Web-browser based GUI eliminates usage worries about version matching with the main frame firmware. Additionally, the MT8862A remote control port supports the DHCP client function and both host and domain name settings offer easy control simply by connecting the PC controller and MT8862A to the same network.
- Frame Capture Logging for Troubleshooting Connection Problems
With built-in frame capture logging function, the MT8862A can capture and save frame logs for troubleshooting DUT connection problems. Captured logs are in the *.pcap format for viewing by supported applications, making it easier to analyze DUT connection problems.
- IP Data Transfer using Connection Verification Test
The Ethernet port on the back panel of the MT8862A can be used for exchanging IP data with an external server; IP connections between the client PC connected to the DUT and the external server connected to the MT8862A can be checked using the ping function, etc.
Anritsu & TRS-RenTelco
TRS-RenTelco is a proud partner of Anritsu and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Anritsu allows us to ensure we have the right Wireless Test solution for your job.
Renting Wireless Test
With TRS-RenTelco, renting Wireless Test equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Anritsu Products from TRS-RenTelco
- Configurations
--, 001, 002, 010, MX886200A, MX886200A-001, MX886200A-020, MX886200A-030
See Configuration Details
-
001
RF frequency 2.4GHz;5GHz
-
002
RF Frequency 6GHz
-
010
Extended RF Hardware
-
MX886200A
WLAN Measurement software
-
MX886200A-001
WLAN 802.11ac option
-
MX886200A-020
WLAN Security Function
-
MX886200A-030
160MHz Bandwidth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
MT8862A Documentation on DVD
Qty: 1
