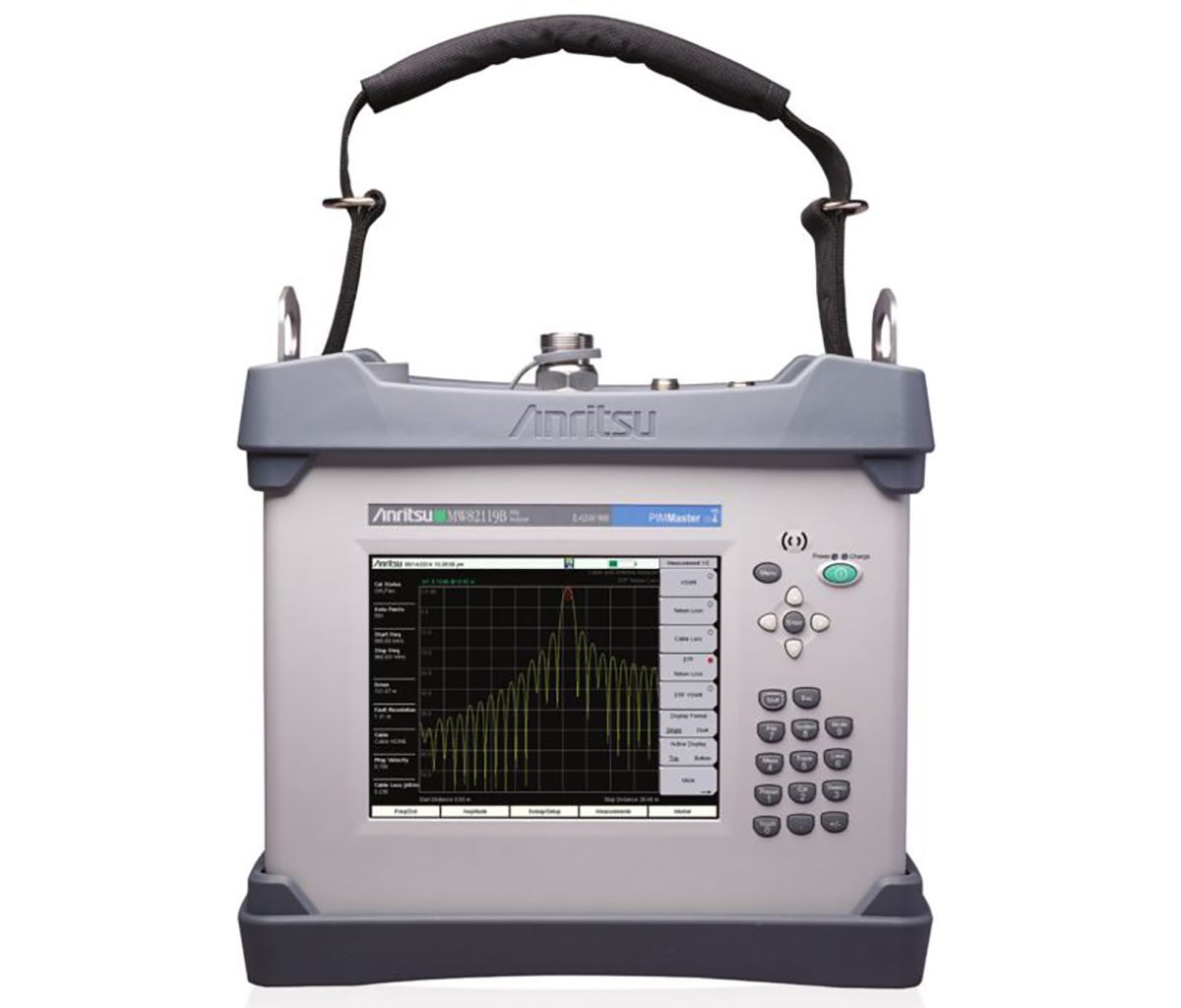

Anritsu MW82119B-0701

PIM Master, APT 700 MHz PIM Master, 7/16 DIN(f)

 The Anritsu MW82119B-0701 APT PIM Master is a battery-operated, high power portable, Passive Intermodulation (PIM) analyzer with optional cable and antenna analyzer. The Anritsu MW82119B-0701 comes with a variety of standard features, which can be augmented and made more capable with the addition of optional extras as well. Here are the details about standard features and other options.


  • Passive Intermodulation (PIM) Analyzer
  • PIM vs. Time, Swept PIM, Distance-to-PIM, Noise Floor
  • Battery Operated: >3 hour
  • 20 dBm (0.1 Watt) to 46 dBm (40 Watt)
  • Field-proven design: Rugged, compact, daylight viewable display
  • Standard three-year warranty (battery one-year warranty)


  • Site Master Cable and Antenna Analyzer
    • 2 MHz - 3 GHz
    • Return Loss, VSWR, Cable Loss, Distance-to-Fault, Smith Chart, 1-Port Phase
  • GPS, High Accuracy Power Meter

TRS-RenTelco is an authorized distributor of ConcealFab PIM Hunting and Mitigation Soluitions.  See the catalog on the resource tab.

Get the Anritsu MW82119B-0701 APT PIM Master analyzer from TRS-RenTelco for rent or for lease. We ship the product with minimal lead time. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today and get equipment with 24/7, year-long customer support.

Read More
  • Configurations
  • Resources
--, 0031, 0701, 760-259-R
See Configuration Details
  • 0701

    APT 700 MHz Frequency

  • 0031

    GPS Receiver

  • 760-259-R

    Transit Case

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • AC Adapter

    Qty: 1
  • Adapter Automotive 12 VDC

    Qty: 1
  • Cable USB-A - USB-MiniB

    Qty: 1
  • Cable RJ45 Straight Thru

    Qty: 1
  • Antenna GPS

    Qty: 1
  • Caution Card

    Qty: 1
  • Battery Lithium Ion High Capacity 81W

    Qty: 1
  • Adapter 7/16 Din(m) - 7/16 Din(f)

    Qty: 1
  • Case Accessory Brown

    Qty: 2
  • Case Transit

    Qty: 1
  • Carrycase Soft

    Qty: 1

    Qty: 1
