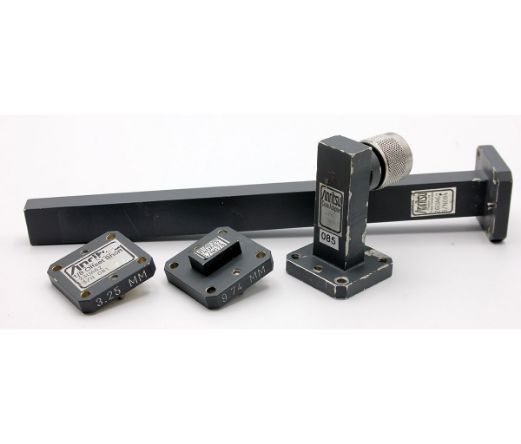

Anritsu WG62

Waveguide Kit, 12.4 GHz to 18 GHz
12.4 TO 18 GHz Waveguide Adapters Includes: 23UA62 -1/8 offset short, 12.40 to 18.0 Ghz 24UA62 -3/8 offset short, 12.40 to 18.0 Ghz 26UA62 -Precision Termination, 12.40 to 18.0 Ghz 35UA62N -Coaxial Adapter, N(m), 12.40 Ghz to 18.0 Ghz
Read More
  • Configurations
  • Resources
  • FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Offset Short 1/8 in

    Qty: 1
  • Offset Short 3/8 in

    Qty: 1
  • Termination Precision

    Qty: 1
  • Adapter Coaxial N(m) 12.40 GHz - 18.0 GHz

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What are Anritsu WG62 Waveguide Components?

Anritsu WG62 waveguide components include precision offset shorts and precision loads designed for high-frequency applications, facilitating accurate waveguide system characterizations and calibrations.

What is the purpose of the 23 Series Offset Shorts?

The 23 Series Offset Shorts are used in waveguide calibrations as an alternative to coaxial SOLT (Short-Open-Load-Thru) calibrations due to the typically low reflectivity of an open waveguide standard. They are utilized in SSLT (Short-Short-Load-Thru) and LRL/LRM (Line-Reflect-Line/Match) calibrations.

How do Offset Shorts contribute to waveguide calibrations?

Offset shorts provide a known reflection point within the waveguide, which, when used in conjunction with precision loads and a through connection, allows for accurate characterization of waveguide components and calibration of measurement systems.

What are the 26 Series Precision Loads used for?

The 26 Series Precision Loads are used in waveguide calibrations as highly accurate terminations, providing a minimal reflection point to ensure the integrity of calibration procedures such as SSLT and LRL/LRM.

What is the significance of the VSWR values listed for the Precision Loads?

The Voltage Standing Wave Ratio (VSWR) values indicate the reflection characteristics of the Precision Loads. Lower VSWR values imply better impedance matching and less reflected energy, which is critical for accurate calibrations and measurements.

How does the offset length of the Offset Shorts affect waveguide measurements?

The offset length in the Offset Shorts determines the phase shift introduced by the short within the waveguide. This phase shift is used in calibration procedures to ascertain the electrical length and properties of the waveguide components being tested.

What are the frequency ranges covered by the Anritsu WG62 waveguide components?

The components cover a wide range of frequency bands, specifically for the WR62 waveguide size, which operates within the 12.4 GHz to 18 GHz frequency range.

What factors should be considered when selecting waveguide components for a specific application?

Factors include the operating frequency range, waveguide size (designated by WR numbers), the specific calibration or measurement procedure being performed, and the required accuracy and repeatability of the measurements.

Why are precision flanges used in some waveguide components?

Precision flanges are used to ensure a high degree of mechanical and electrical repeatability in waveguide connections. They are critical for maintaining measurement accuracy, especially in high-frequency applications where even minor discrepancies can significantly impact results.

What maintenance and care are required for WG62 series components?

Maintenance for WG62 series components involves regular inspection for physical damage, cleaning of connector surfaces to prevent contamination, and proper storage to avoid mechanical stress. Periodic verification of component performance through standard calibration procedures is also advisable to ensure they continue to provide accurate measurements.
