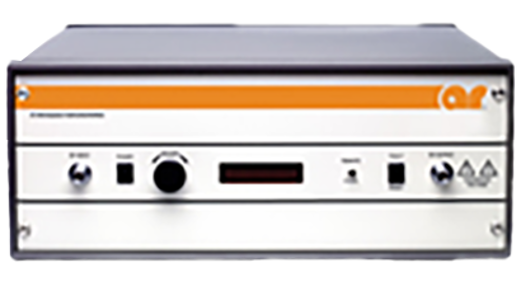

AR RF/Microwave Instrumentation 30S1G6

30 Watt CW, 0.7 - 6 GHz SOLID STATE AMP

AR RF/Microwave Instrumentation - 30S1G6

The Model 30S1G6 is a solid-state, Class A design, self-contained, air-cooled, broadband power amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. It will provide a minimum of 30 W across its operating bandwidth of 0.7 - 6.0 GHz. Protection from input overdrive beyond 0 dBm is provided as well as protection from various failure conditions including over-temperature and power supply faults.

30S1G6 Product Highlights

• 30 W CW, 0.7 – 6 GHz

• Class A design

• 100% mismatch tolerant

• Built-in fault monitoring and protection

• Remote control: Ethernet, USB, GPIB, fiber-optic serial, RS-232

• Modular design for easy maintenance and service

AR RF/Microwave Instrumentation & TRS-RenTelco

TRS-RenTelco is proud to offer a wide range of AR RF/Microwave Instrumentation rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our AR RF/Microwave Instrumentation product offering allows us to ensure we have the right Amplifiers solution for your job.

Renting Amplifiers

With TRS-RenTelco, renting Amplifiers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.

Links to Additional Information

AR RF/Microwave Instrumentation Products from TRS-RenTelco

Other Amplifiers from TRS-RenTelco

AR RF/Microwave Instrumentation Home Page

Read More
  • Configurations
  • Resources
  • FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Software and Manuals

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.

Content is AI-generated. Verify critical details with manufacturer-provided resources.

What is the AR RF/Microwave Instrumentation 30S1G6?

The 30S1G6 is a solid-state, Class A design, self-contained, air-cooled, broadband power amplifier designed for applications requiring instantaneous bandwidth, high gain, linearity, and a minimum of 30 watts of RF power across a frequency range of 0.7 GHz to 6.0 GHz.

What applications are suitable for the 30S1G6?

The amplifier is ideal for testing wireless and communication components and subsystems, suitable for a wide bandwidth including 5G testing applications. Its Class A design also makes it suitable for EMC test applications where operation into high VSWR loads, including open and short circuits, is required.

What is the rated power output of the 30S1G6?

The amplifier provides a minimum of 30 watts of power across its operating bandwidth, with typical output reaching 40 watts and maximum output exceeding 50 watts under specific conditions.

What are the key features of the 30S1G6?

Key features include a 100% mismatch tolerance, built-in fault monitoring and protection, and a wide range of remote control options such as Ethernet, USB, GPIB, fiber-optic serial, and RS-232.

How does the 30S1G6 handle mismatched loads?

The amplifier is 100% mismatch tolerant and will operate without damage or oscillation with any magnitude and phase of source and load impedance, thanks to its robust design.

What are the modulation capabilities of the 30S1G6?

The 30S1G6 is capable of reproducing AM, FM, or pulse modulation appearing on the input signal, ensuring versatility for various signal processing applications.

What cooling method is employed in the 30S1G6?

The amplifier uses forced air cooling with self-contained fans to maintain optimal operating temperatures.

What are the remote control interfaces available for the 30S1G6?

The 30S1G6 supports remote control via GPIB/IEEE-488, RS-232 (both hardwire and fiber optic), USB 2.0, and Ethernet interfaces, providing extensive control and monitoring capabilities.

What are the mechanical specifications of the 30S1G6?

With the cabinet, the amplifier measures 50.3 cm x 15.5 cm x 37.6 cm and weighs approximately 18.2 kg. It utilizes forced air (self-contained fans) for cooling, and the typical acoustical noise level is around 59 dBA.

What regulatory compliances does the 30S1G6 meet?

The 30S1G6 complies with EMC EN 61326-1, safety standards such as UL 61010-1, CAN/CSA C22.2 #61010-1, and CENELEC EN 61010-1, and is RoHS compliant as per Directive 2011/65/EU. Its export classification is EAR99.
