AR RF/Microwave Instrumentation 75S1G6C
75 Watt CW, 1 - 6 GHz SOLID STATE AMP
AR RF/Microwave Instrumentation - 75S1G6C

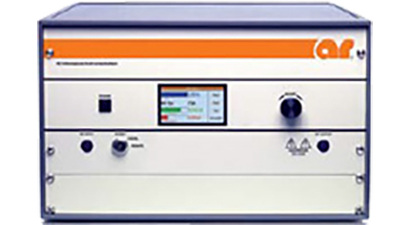

The Model 75S1G6C is a solid-state, Class A design, self-contained, aircooled, broadband power amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. It will provide a minimum of 75 W across its operating bandwidth. Protection from input overdrive beyond 0 dBm is provided as well as protection from various failure conditions including over-temperature and power supply faults.
75S1G6C Product Highlights
• 75 Watts CW, 1.0 - 6.0 GHz
• Class A design
• 100% mismatch tolerant
• Built-in fault monitoring and protection
• Remote control: Ethernet, USB, GPIB, fiber-optic serial, RS-232
• Modular design for easy maintenance and service
• Low acoustical noise
AR RF/Microwave Instrumentation & TRS-RenTelco
TRS-RenTelco is proud to offer a wide range of AR RF/Microwave Instrumentation rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our AR RF/Microwave Instrumentation product offering allows us to ensure we have the right Amplifiers solution for your job.
Renting Amplifiers
With TRS-RenTelco, renting Amplifiers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
AR RF/Microwave Instrumentation Products from TRS-RenTelco
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Manuals on USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
AR RF/MW Instrumentation 75S1G6C Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the AR RF/Microwave Instrumentation 75S1G6C?
The 75S1G6C is a solid-state, Class A, self-contained, air-cooled broadband power amplifier designed for applications where instantaneous bandwidth, high gain, and linearity are required. It provides a minimum of 75 watts of RF power across its operating bandwidth of 1.0 to 6.0 GHz.
What are the typical applications for the 75S1G6C?
This amplifier is suited for EMC testing in military, aviation, automotive, and commercial fields, general-purpose antenna and component testing, radiated and conducted EMC testing, and it is particularly suitable for 5G testing applications due to its wide bandwidth.
What are the key features of the 75S1G6C amplifier?
Key features include a Class A design, 100% mismatch tolerance, built-in fault monitoring and protection, and multiple remote control options including Ethernet, USB, GPIB, fiber-optic serial, and RS-232. It also boasts a modular design for easy maintenance and service, coupled with low acoustical noise.
How does the 75S1G6C handle mismatched loads?
The amplifier is 100% mismatch tolerant, ensuring continued operation into high VSWR loads including open and short circuits, making it ideal for EMC Test applications.
What are the modulation capabilities of the 75S1G6C?
The Class A design allows the 75S1G6C to handle a wide variety of modulations, making it suitable for complex signal processing in communication systems testing and EMC test applications.
What cooling method is employed in the 75S1G6C?
The 75S1G6C uses forced air cooling with self-contained fans, with side inlets and rear outlet for effective thermal management.
What are the remote control interfaces available for the 75S1G6C?
The amplifier supports comprehensive remote control and monitoring capabilities via GPIB/IEEE-488, RS-232 (both hardwire and fiber optic), USB 2.0, and Ethernet interfaces.
What are the physical dimensions and weight of the 75S1G6C?
With the cabinet, the amplifier measures 51.0 x 17.0 x 65.3 cm and weighs 26.5 kg. Without the cabinet, for 3U 19” rack mounting, it measures 48.3 x 13.4 x 65.3 cm and weighs 15.8 kg.
What safety features are included in the 75S1G6C?
The amplifier includes protection from input overdrive beyond 0 dBm, over-temperature protection, and power supply fault protection. A front panel display indicates the operational status and fault conditions.
What are the regulatory compliances of the 75S1G6C?
The 75S1G6C complies with EMC standard EN 61326-1, safety standards UL 61010-1, CAN/CSA C22.2 #61010-1, and CENELEC EN 61010-1. It is also RoHS compliant according to Directive 2011/65/EU, and its export classification is 3A001.
