Berkeley Varitronics Systems GATOR-LTE

Gator Transmitter LTE

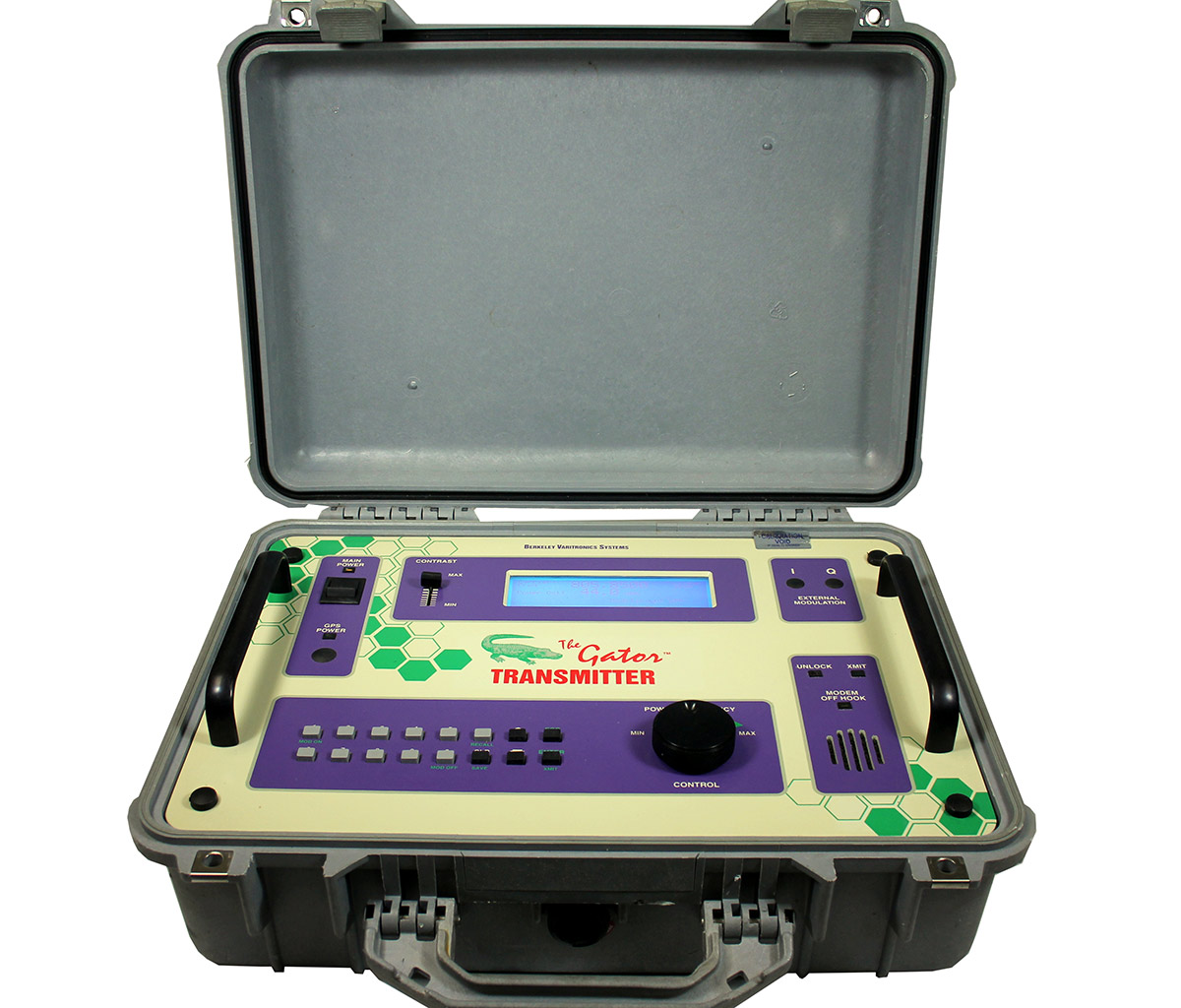

The Berkeley Varitronics Systems GATOR-LTE transmitter is a Class A Power Amplifier, which is rugged, lightweight, and comes with weatherproof design. The power level, channel, and frequency can be adjusted remotely using this device. It comes with VSWR antenna protection and dual cooling fans with built-in thermal overhead protection for the amplifier.

Key Features of the Berkeley Varitronics Systems GATOR-LTE:

  • 20Watt Class A  PN:0040-20A-PZ   24 TO 43DBM
  • Transmits (CW) - Continuous Wave
  • NEW: internal clock displays units runtime
  • NEW: displays the total transmitting time
  • Internal110 -220 VAC Auto switching power supply
  • Externally powered from(12 VDC for PCS, 24 VDC for Cellular)
  • DTMF control of output power with on & off functions
  • Built-in power meter, both forward and reverse
  • Infinite SWR protection, Internal thermal protection
  • Power adjustable in 0.5 dB increments
  • AC Power cord, DC cable, calibration certificate
  • T-handles, GatorManual, Serial cable,  Spare Fuses...N(F) INPUT CONNECTOR
  • Gator controllersoftwareV3.00 (Windows 95/98/2000)CD ROM
  • Weighs only 23 pounds (lightest transmitter in the industry)

TRS-RenTelco offers the Berkeley Varitronics Systems GATOR-LTE Transmitter for rent or lease with 24/7 customer support. Our products are calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by expert metrologists and technicians. Request a quote today.

Read More
  • Configurations
  • Resources
--, TX1-20W, 698 - 806 MHz
See Configuration Details
  • TX1-20W, 698 - 806 MHz

    Single Output 20 Watts, 698 to 806 MHz

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable Serial DB-9(m) - DB-9(f)

    Qty: 1
  • Manual

    Qty: 1
  • Screwdriver T-Handle Hex Driver 1/8 in

    Qty: 1
  • USB Drive with Software

    Qty: 1
  • Cable DC Power

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

Buy Used

Price: $15,065 $1,500
