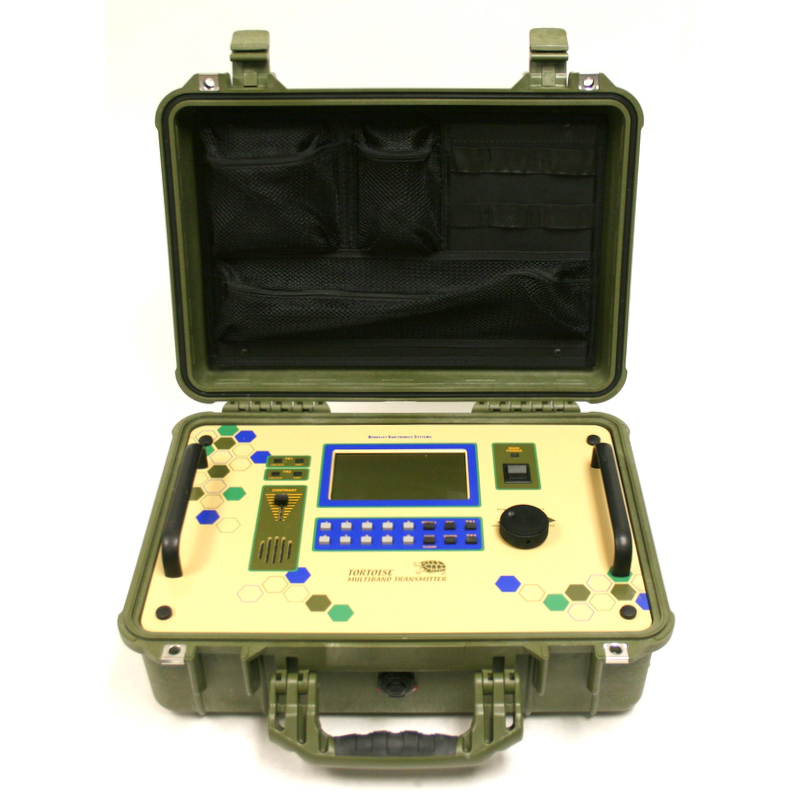

Berkeley Varitronics Systems TORTOISE-CEL-PCS-AWS

Tortoise Multi-Band, Dual Output, CW Transmitter

The Berkeley Varitronics Systems Tortoise-CEL-PCS-AWS is a portable, heavy duty multi-band transmitter. The Tortoise-CEL-PCS-AWS comes with two dynamically controlled Class AB amplifiers that allows the user to transmit two separate frequency bands at the same time without the addition of extra transmitters.

Tortoise-CEL-PCS-AWS Key Features:

  • CW module combos include frequencies for CDMA, Cellular, PCS, Paging, ETACS, iDEN, SMR, ISM, LMR, UMTS, GSM, LTE, WiMAX, Wi-Fi, AWS & more
  • Optional LTE, UMTS, CDMA IS-95 or WiMAX Modulators for base station simulation
  • Two independent transmitter module bays
  • Power amplifier with continuous adjustable power output 0.1 dB over 17 dB range
  • Water resistant, rugged 18 x 15 x 6 inch ABS plastic case
  • Microprocessor-controlled 640 x 240 LCD with front panel soft-keys or remotely controlled with an internal modem for user programmable modulation schemes, power levels, channels, and frequencies
  • Calibration/Usage integrated hours meter
  • VSWR antenna protection and internal forward and reverse measurement
  • Quad cooling fans with built-in thermal overheat protection for amplifier
  • Weighs under 20 pounds
  • Powered from 110-240 VAC 50-60 Hz
  • All parameters can be adjusted remotely via USB connection to any PC
  • Designed and manufactured entirely in the USA

You can rent or lease the Berkeley Varitronics Systems TORTOISE-CEL-PCS-AWS from TRS-RenTelco. Request a quote today.

Read More
  • Configurations
  • Resources
--, TX1-25W, 800-960MHz, TX2-20W,1800-2200MHz
See Configuration Details
  • TX1-25W, 800-960MHz

    First Ouput 25 Watts 800 to 960 MHz

  • TX2-20W,1800-2200MHz

    Second Output 20 Watts 1800 to 2200 MHz

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable USB-A - USB-B

    Qty: 1
  • Screwdriver T-Handle Hex Driver 1/8 in

    Qty: 1
  • Card Reader

    Qty: 1
  • SD Memory Card

    Qty: 1
  • Manual

    Qty: 1
  • CD PC Software 2.5 WiMAX Packet Generator Users Guide

    Qty: 1
