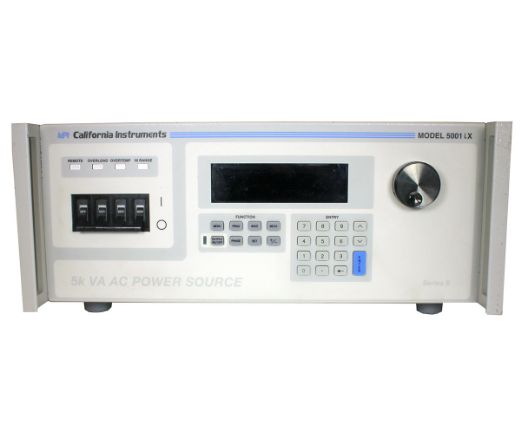

California Instruments 5001IX-II

5000VA Single-Phase AC & 3500 W DC Power Source

The California Instruments 5001iX-II is part of this iX series, and can be used as a 5000VA Single-Phase AC and a 3500 W DC Power Source.

The iX Series is a full featured source offering transient generation, arbitrary waveform generation, standard measurements, harmonic analysis, waveform acquisition and programmable impedance. Single phase, 5000 VA AC and 3500 W DC power. Input 208 Vac L-L, 3 Phase , 47-63 Hz. Output voltage ranges: 0-135 V,150 V,270 V, 300V.

Here's the list of specifications of the 5001iX-II power source:

  • Operating Modes: AC DC
  • AC Mode Output: Frequency Range: 16 - 500/819 Hz, Resolution: 0.01 Hz < 81.91 Hz 0.1 Hz > 82.0 Hz
  • Power: Maximum AC power per phase at full scale voltage: 5000 VA
  • Load Power Factor: 0 to unity at full output VA
  • Load Regulation: < 0.5% DC to 100 Hz, < 0.6 % 100 Hz to 500 Hz in high voltage range, < 2.2 % 100 Hz to 500 Hz in low voltage range
  • Line Regulation: < 0.1% for 10 % line change
  • Output Noise: < 250 mVrms typ., < 500 mVrms max. (20 kHz to 1 MHz)
  • Harmonic Distortion: Less than 1% from 16 - 66 Hz, Less than 2% at 400 Hz (into linear load)
  • DC Offset: < 20 mV
  • External Amplitude: Depth: 0 - 10 %, Frequency: DC - 2 KHz

You can rent or lease the 5001iX Series II from TRS-RenTelco. Our skilled technicians and metrologists calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant lab. Request a quote now.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Bracket Protection

    Qty: 2
  • Cable DB 9(f) - DB 9(f)

    Qty: 1
  • Shipping Crate Small Streamline Cable Assembly

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Strain Relief for Safety Covers

    Qty: 1
  • Bushing Rubber

    Qty: 1
  • Cover Safety for Input/Output

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
704
See Configuration Details
  • 704

    MIL-STD 704D/E Test Firmware Sequence / A, B, C, & F Software

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Bracket Protection

    Qty: 2
  • Cable DB 9(f) - DB 9(f)

    Qty: 1
  • Shipping Crate Small Streamline Cable Assembly

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Strain Relief for Safety Covers

    Qty: 1
  • Bushing Rubber

    Qty: 1
  • Cover Safety for Input/Output

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 160
See Configuration Details
  • 160

    DO160D / EUROCAE Test Firmware / DO-160A-F Software

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Bracket Protection

    Qty: 2
  • Cable DB 9(f) - DB 9(f)

    Qty: 1
  • Shipping Crate Small Streamline Cable Assembly

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Strain Relief for Safety Covers

    Qty: 1
  • Bushing Rubber

    Qty: 1
  • Cover Safety for Input/Output

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 160, 704
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cable DB 9(f) - DB 9(f)

    Qty: 1
  • Strain Relief for Safety Covers

    Qty: 1
  • Bushing Rubber

    Qty: 1
  • Cover Safety for Input/Output

    Qty: 1
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
