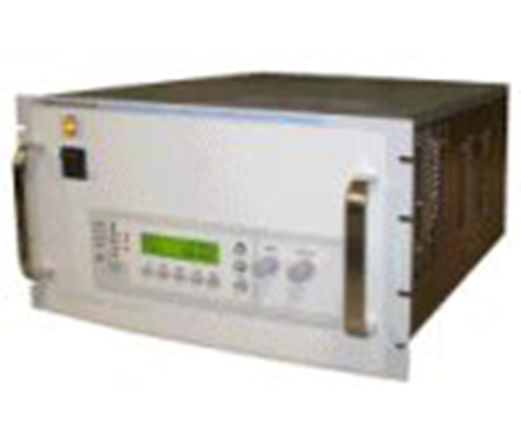

California Instruments 6000LS-3-EHV

6000VA Single / 3-Phase AC Power Source
The Ls Series is an improved version of the classic California Instruments L Series AC power sources. It provides many basic AC source capabilities at an economical cost. Additional capabilities such as arbitrary waveform generation and harmonic measurements can be added as options. Three phase configuration. 6 kVA power level in a single chassis. Multiple chassis can be combined for power levels up to 18 kVA. The Ls Series is completely microprocessor controlled and can be operated from a simple front panel keypad. A pair of analog controls located next to the backlit alphanumeric LCD display allows output voltage and frequency to be slewed up or down dynamically. For more advanced operations, a series of menus is provided using a dual line high contrast LCD display. L Series Backward Compatibility The Ls Series offers functional and bus compatibility with the CI L Series AC power sources. Using the APE (Abbreviated Plain English) command syntax, the Ls Series can be used in existing test systems without the need to modify program code. The APE language is part of the -GPIB option, which also adds the GPIB/ IEEE-488 interface. Transient Programming To simulate common line disturbance occurrences, the Ls Series offers a list of transient steps. These steps can be programmed from the front panel or downloaded over the interface using the GUI program supplied. The GUI allows libraries of commonly used line disturbances to be created on disk for quick recall. Once downloaded, the transient program can be executed from the PC or from the front panel. AC transient generation allows the effect of rapid changes in voltage, frequency, and phase angle and waveform shape on the unit under test to be analyzed. The following standard measurements are available from the front panel or via the bus:
  • Frequency
  • Phase
  • Voltage (rms)
  • Current(rms)
  • Peak Current
  • Crest Factor
  • Real Power
  • Apparent Power
  • Power Factor
  • Read More
    • Configurations
    • Resources
    • FAQsAI
    ADV, BASE, EHV, GPIB, MODE
    See Configuration Details
    • ADV

      Advanced Measurement Functions

    • EHV

      Hi Voltage Output Range (200 / 400 V)

    • GPIB

      GPIB Interface + APE Language

    • MODE

      Allows Single / 3-Phase Operation

    • BASE

      Base Unit

    Standard Rental Accessories*
    * Leased or Buy Used product accessories will be confirmed with quote.
    • Strain Relief for Safety Covers

      Qty: 2
    • Bracket Protection

      Qty: 2
    • Cable RS232

      Qty: 1
    • Bushing Rubber

      Qty: 2
    • Connector J6 sense HSG 4-Pin

      Qty: 1
    • Cover Safety for Input/Output

      Qty: 2
    • Shipping Crate Large Streamline Cable Assembly

      Qty: 1
    • USB Drive with Software and Manuals

      Qty: 1
    Rent or Lease

    Check out first to get details on the cost.

    *This item has already been added to your cart. Check your cart for quantity and availability.
    6000LS-3, ADV, EHV, GPIB, MODE
    See Configuration Details
    • 6000LS-3

      6va Ac Source W / Rs-232/Usb I/F

    • ADV

      Advanced Measurement Functions

    • EHV

      Hi Voltage Output Range (200 / 400 V)

    • GPIB

      GPIB Interface + APE Language

    • MODE

      Allows Single / 3-Phase Operation

    Standard Rental Accessories*
    * Leased or Buy Used product accessories will be confirmed with quote.
    • Strain Relief for Safety Covers

      Qty: 2
    • Bracket Protection

      Qty: 2
    • Cable RS232

      Qty: 1
    • Bushing Rubber

      Qty: 2
    • Connector J6 sense HSG 4-Pin

      Qty: 1
    • Cover Safety for Input/Output

      Qty: 2
    • Shipping Crate Large Streamline Cable Assembly

      Qty: 1
    • USB Drive with Software and Manuals

      Qty: 1
    Rent or Lease

    Check out first to get details on the cost.

    *This item has already been added to your cart. Check your cart for quantity and availability.

    Content is AI-generated. Verify critical details with manufacturer-provided resources.

    What is the California Instruments 6000LS-3-EHV used for?

    The California Instruments 6000LS-3-EHV is a versatile AC power source used for generating stable, high-power AC signals for testing electrical and electronic equipment.

    What is the power output of the California Instruments 6000LS-3-EHV?

    It provides up to 6000 VA of power in a single chassis, with options to combine multiple chassis for up to 18 kVA.

    What output voltage ranges does the 6000LS-3-EHV support?

    It supports high voltage output ranges of 200V and 400V, making it suitable for various high voltage testing applications.

    What types of measurements can the 6000LS-3-EHV perform?

    The device can measure frequency, phase, voltage (rms), current (rms), peak current, crest factor, real power, apparent power, and power factor.

    Does the California Instruments 6000LS-3-EHV support transient generation?

    Yes, it supports transient generation and arbitrary waveform generation, allowing for detailed simulation of power disturbances.

    What control interfaces are available on the 6000LS-3-EHV?

    It includes GPIB and RS232 interfaces, along with a front panel keypad and LCD display for easy operation and programming.

    Is the 6000LS-3-EHV compatible with previous L Series models?

    Yes, it offers backward compatibility with the L Series, allowing integration into existing test systems without modifying program code.

    What standard rental accessories are included?

    The rental package includes safety covers, brackets, RS232 cable, rubber bushings, 4-pin connector, and a shipping crate with a USB drive containing software and manuals.

    What advanced functions are available with the 6000LS-3-EHV?

    It includes advanced measurement functions, high voltage output range options, and the ability to operate in single or three-phase modes.

    What rental and leasing options are available for the 6000LS-3-EHV?

    TRS-RenTelco offers flexible rental, lease, and purchase options to meet diverse testing needs and budgets.
