Dranetz HDPQ-XPLORER-A
HDPQ Xplorer
Rent or Lease
Dranetz - HDPQ-XPLORER-A

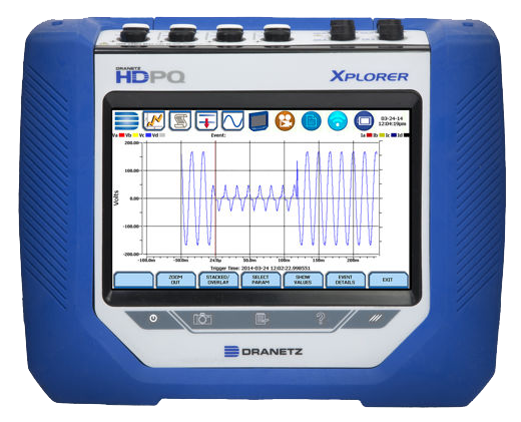

The Dranetz HDPQ XPLORER-A is a power quality analyzer from the Dranetz' HDPQ family of high quality testing products. When you order the Dranetz HDPQ, you get the instrument only. The specifications of the HDPQ XPLORER include the following: 50/60HZ, 16/20HZ, AC/DC, 512 samples/cycle, 1MHZ high speed digitized transients, 8 channels (4 differential voltage, 4 current), 10K cycle recording depth, WVGA touch LCD display, Ethernet, Wi-Fi, Bluetooth, battery charger, voltage cable set with pouch, Answer Modules.
HDPQ-XPLORER-A Product Highlights
• High Definition PQ & Energy Monitoring - 1000Vrms, AC/DC, 512 samples/cycle
• High Speed Digitized Transients - 1us, 10 to 2000Vpk
• Eight channels, 4 voltage & 4 current
• AnswerModules - Sag directivity, PF capacitor identification, motor - automatic event categorization
• Advanced PQ - IEC 61000-4-30 Class A & IEEE 1159 compliant
• Harmonics - IEC 61000-4-7, IEEE 519 (2014)
• Transient capabilities - V & I - waveshape triggers, high speed. Well beyond standards requirements
• IEEE 1459 Advanced Power Measurements
• 10,000 cycle pre/post trigger buffer
• EN 50160 Ed 3
Dranetz & TRS-RenTelco
TRS-RenTelco is a proud partner of Dranetz and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Dranetz allows us to ensure we have the right Electrical & Industrial Test Equipment solution for your job.
Renting Electrical & Industrial Test Equipment
With TRS-RenTelco, renting Electrical & Industrial Test Equipment equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Links to Additional Information
Dranetz Products from TRS-RenTelco
Other Electrical & Industrial Test Equipment from TRS-RenTelco
- Configurations
- Resources
- FAQsAI
--, SCC-HDPQ
See Configuration Details
-
SCC-HDPQ
Soft Carry Case
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Lead Jumper Banana(m) - Banana(m) Shrouded Short
Qty: 4 -
Cable Pouch
Qty: 1 -
Cable Voltage White
Qty: 4 -
USB Drive 4 GB
Qty: 1 -
Cable USB-A - USB-MicroB
Qty: 1 -
Dolphin Clip Black 1000 V 10 A or Higher
Qty: 4 -
Battery Pack Nickel-Metal Hydride (Ni-MH) 9.6 V 22 W
Qty: 1 -
Clip Dolphin White
Qty: 4 -
Marker Wire Voltage Kit
Qty: 1 -
Cable Assembly Black 6 ft
Qty: 4 -
Marker Wire Current Kit
Qty: 1 -
AC Adapter Wall Transformer
Qty: 1 -
Bluetooth Adapter USB
Qty: 1 -
Manual Quick Reference
Qty: 1 -
Carrycase Soft
Qty: 1 -
Stylus
Qty: 1 -
USB Drive Software and Manuals
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, GOPROHDPQ, SCC-HDPQ
See Configuration Details
-
GOPROHDPQ
GoPRO HDPQ Driver
-
SCC-HDPQ
Soft Carry Case
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Lead Jumper Banana(m) - Banana(m) Shrouded Short
Qty: 4 -
Cable Pouch
Qty: 1 -
Cable Voltage White
Qty: 4 -
USB Drive 4 GB
Qty: 1 -
Cable USB-A - USB-MicroB
Qty: 1 -
Dolphin Clip Black 1000 V 10 A or Higher
Qty: 4 -
Battery Pack Nickel-Metal Hydride (Ni-MH) 9.6 V 22 W
Qty: 1 -
Clip Dolphin White
Qty: 4 -
Marker Wire Voltage Kit
Qty: 1 -
Cable Assembly Black 6 ft
Qty: 4 -
Marker Wire Current Kit
Qty: 1 -
AC Adapter Wall Transformer
Qty: 1 -
Bluetooth Adapter USB
Qty: 1 -
Manual Quick Reference
Qty: 1 -
Carrycase Soft
Qty: 1 -
Stylus
Qty: 1 -
USB Drive Software and Manuals
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Dranetz HDPQ-XPLORER-A Brochure
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What power quality standards does the Dranetz HDPQ Xplorer meet?
The HDPQ Xplorer is designed to meet both IEEE 1159 and IEC 61000-4-30 Class A standards for accuracy and measurement requirements. It includes a statistical package called Quality of Supply (QOS) with monitoring and setup protocols configured to determine voltage measurement compliance for EN50160 monitoring. The European standard EN50160 requires that measurement parameters must be within a specified percentage for 95% of the time, and the Xplorer is specifically designed to validate this compliance.
How many channels can the HDPQ Xplorer monitor simultaneously?
The HDPQ Xplorer is an eight-channel power quality meter that can monitor four voltage channels and four current channels simultaneously. This configuration allows comprehensive monitoring of three-phase four-wire wye systems, three-phase delta systems, split-phase, single-phase, and other power configurations. The instrument can capture detailed voltage and current waveforms on all channels at once for complete power quality analysis.
What is the display size and interface technology on the Xplorer?
The Xplorer features a 7-inch WVGA wide screen color LCD with integrated touch screen technology. The touch screen is operable using a finger, stylus, or even with lineman gloves on, making it practical for field use. The display includes an intuitive taskbar with interactive icon graphics for navigation, a work window for viewing data and functions, and soft function keys that change based on the context of the active screen.
Can the HDPQ Xplorer operate on battery power in the field?
Yes, the HDPQ Xplorer includes a field-replaceable battery pack that provides extended operation without AC power. The instrument can be operated from a 50/60 Hz, 120/240V AC power source with or without the battery pack installed, and the AC adapter serves as a battery charger. The internal UPS feature ensures continuous operation during power interruptions, and the battery fully charges in approximately three hours.
What voltage rating do the measurement inputs support?
The standard voltage measurement cables for the HDPQ Xplorer are rated at 1000V CAT III Vrms maximum for direct connection. For measuring voltages greater than 1000 Vrms, potential transformers (PTs) must be used. Optional fused voltage adapter kits are available and rated up to 1000V AC/DC applications, providing additional protection when fused inputs are required for safety compliance.
How does the Xplorer handle data storage and connectivity?
The HDPQ Xplorer provides multiple connectivity options including Ethernet, two USB ports for flash drives and direct computer connection, WiFi, Bluetooth PAN, and GPS receiver capability. Data can be downloaded remotely via network connections or directly via USB. The instrument features 4GB of internal memory with monitoring status displays showing available memory in GB and percentage of memory used for extended recording sessions.
What real-time meter modes are available on the Xplorer?
The Xplorer offers multiple real-time meter display modes including Scope Mode for waveform viewing, Dial Meters with graphical displays, Text Display Meters in tabular format, Dashboard for comprehensive overview, Harmonics analysis display, Phasor Display for phase relationships, and Strip Chart Recorder for trending. Each mode provides different visualization of voltage, current, and calculated power quality parameters, allowing technicians to select the most appropriate view for their specific testing needs.
Can the HDPQ Xplorer generate compliance and energy reports?
Yes, the Xplorer includes comprehensive reporting capabilities including Voltage Compliance Reports for EN50160 standards, Energy and Demand Reports for monitoring power consumption and utility costs, and Harmonics Statistics Reports. The instrument features a mini-report viewer and allows users to capture screen snapshots, which can be saved to mini-reports for documentation. Reports can be viewed on the instrument display or exported for further analysis using compatible Dranetz software such as Dran-View.
