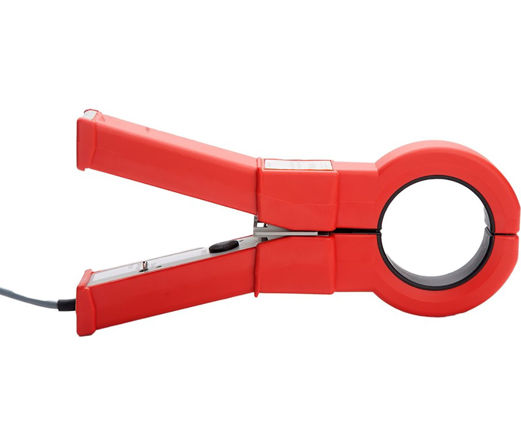

Dranetz PR1500/SP8B

150A-1500A Hall Effect CT (9v Battery Powered)

The Dranetz PR1500/SP8B is a highly reliable and efficient AC/DC current clamp that provides accurate current readings without interfering with the circuit. Weighing about 600 gm., this rugged clamp measures both AC and DC currents.

Dranetz PR1500/SP8B - Features and Specifications:

  • The probes are supplied with a 9V battery that can last for nearly 75 hours.
  • Probes can be operated in two ranges of AC/DC current- 150A (PR150) and 1500A (PR1500).
  • Operating temperatures -10 degrees C to 50 degrees C
  • Output sensitivity 1 mV/A
  • Frequency range DC to 5 kHz (-3dB)
  • Minimum load impedance > 10 k ohm and = 100 pF
  • Maximum conductor size - 52 mm diameter

The Dranetz PR1500/SP8B AC/DC Current Clamp is available for rent or lease at TRS-RenTelco. Request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Battery 9 V

    Qty: 1
  • Manual User Instructions

    Qty: 1
Rent or Lease

Check out first to get details on the cost.
