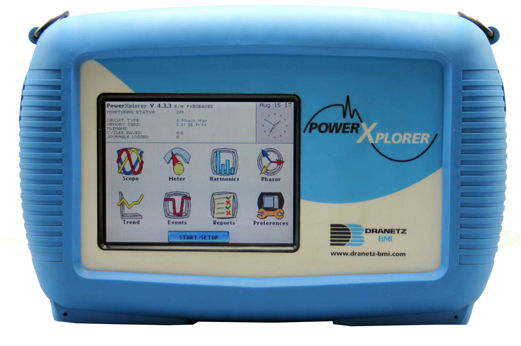

Dranetz PX-5 400
Power Analyzer (400 Hz)
The PowerXplorer PX5-400 integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this unit simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes.
The measurement capabilities include the capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize non-sinusoidal and unbalanced systems. Users can select from a multitude of data displays such as phasors, waveforms, meters and harmonic spectrums. Requires current transformers.
Features and Specifications
- 7 Monitoring Modes
- 400Hz Monitoring
- 4 Transient Triggers
- Samples at 256 samples/cycle
- THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd at 50/60 Hz
- AC mode or Battery mode
- 8 channels, 4 voltage and 4 current
The Dranetz PX5-400 is available for rent or purchase from TRS-RenTelco with 365-day customer support.
- Configurations
- Resources
64M FLASH, SCC-4300
See Configuration Details
-
64M FLASH
64M Flash Card
-
SCC-4300
Soft Carry Case
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Carrycase Soft
Qty: 1 -
Lead Jumper Banana(m) - Banana(m) Shrouded Short
Qty: 4 -
Cable Pouch
Qty: 1 -
Cord Power
Qty: 1 -
Cable Voltage Red
Qty: 1 -
Cable Voltage Yellow
Qty: 1 -
Cable Voltage Blue
Qty: 1 -
Cable Voltage White
Qty: 4 -
Alligator Clip Red
Qty: 4 -
Alligator Clip Black 1000 V
Qty: 4 -
Cable Voltage Gray
Qty: 1 -
Cover Battery Door
Qty: 1 -
Battery Nickel-Metal Hydride (Ni-MH) 21 W
Qty: 1 -
AC Adapter 12 V
Qty: 1 -
Memory Card 4 GB
Qty: 1 -
Card Reader
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
128M FLASH, SCC-4300
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery Nickel-Metal Hydride (Ni-MH) 21 W
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
256M FLASH, SCC-4300
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Battery Nickel-Metal Hydride (Ni-MH) 21 W
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
