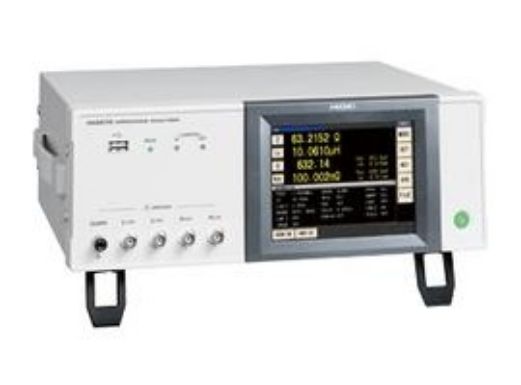

Hioki IM3570

Hioki LCR Meters and Impedance 4 Hz to 5 MHz

Make frequency sweeps and LCR measurements with one instrument. The Hioki IM3570 works as an impedance analyzer and LCR meter. It has numerous applications in testing electronic components that need a low-ESR measurement of the order of several milliohms.

The IM3570 is ideal for testing the resonance characteristics of piezoelectric elements, C-D and low-ESR measurement of functional polymer capacitors, and DCR and L-Q measurement of inductors like coils and transformers because of its superior low-impedance repeatability.

The Hioki IM3570 is a single device solution for high-speed testing and frequency sweeping.

Hioki IM3570 - Features and Specifications:

  • Maximum speeds of 1.5ms (1 kHz) and 0.5ms (100 kHz) in LCR mode
  • Highly accurate measurements with plus or minus 0.08% basic accuracy of Z parameter
  • Measurement range of 100 m omega to 100 M omega
  • Measurement frequency of 4 Hz to 5 MHz
  • 5.7 inch color TFT display

Get Hioki IM3570 LCR meters and impedance analyzers for rent or lease at TRS-RenTelco with 24/7 customer support for all your needs. Request a quote or contact us for details.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
  • Stylus

    Qty: 1
Rent or Lease

Check out first to get details on the cost.
