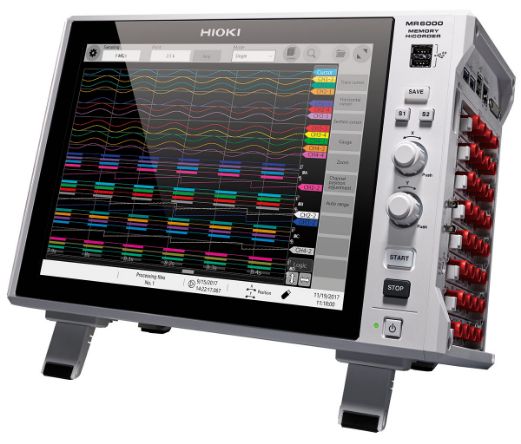

Hioki MR6000

Multi-Channel Data Acquisition Sys.(UP TO 8 MODULES)

Perform accurate measurement, testing, recording, and analysis with the Hioki MR6000 multi-channel data acquisition system.

The MR6000 offers world-class specifications, outstanding operability, and exceptional design to deliver unparalleled performance for waveform recording. This data acquisition system provides high-speed optical isolated measurements along with real-time save function and an intuitive touchscreen user interface.

The Hioki MR6000 can help deliver efficient and convenient operations in power electronics, renewable energy, and automotive industries.

Hioki MR6000 Features and Specifications:

  • Number of input units: Eight units maximum
  • Number of channels:
    - Maximum 32 analog channels (when using the U8975)
    - 128 logic channels (when using the 8973)
  • Measurement ranges (20 div full-scale):
    - 10mV to 400V f.s., 12 ranges (when using the U8976), resolution: 1/1,600 of range
    - 4V to 200V f.s., 6 ranges (when using the U8975), resolution: 1/32,000 of range
  • Maximum allowable input:
    - 400V DC (when using the U8976)
    - 200V DC (when using the U8975)
  • Frequency characteristics:
    - DC to 30MHz (when using the U8976)
    - DC to 2MHz (when using the U8975)
  • Maximum sampling rate: 200MS/s, all channels simultaneously (when using the U8976)
  • External sampling: 10MS/s
  • Storage memory capacity: 1 G-words
  • Power supply: 100V to 240V AC (50Hz/60Hz) (300VA maximum)

The Hioki MR6000 multi-channel data acquisition system is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
  • Resources
MR6000-1, U8332, Z4003, Z5021
See Configuration Details
  • Z5021

    ProbePower Unit

  • U8332

    SSD Unit

  • Z4003

    8GB SD Card

  • MR6000-1

    Memory HiCorder

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Mouse Optical

    Qty: 1
  • Memory Card SD 8 GB

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

Buy Used

Checkout first to get details on the cost.
