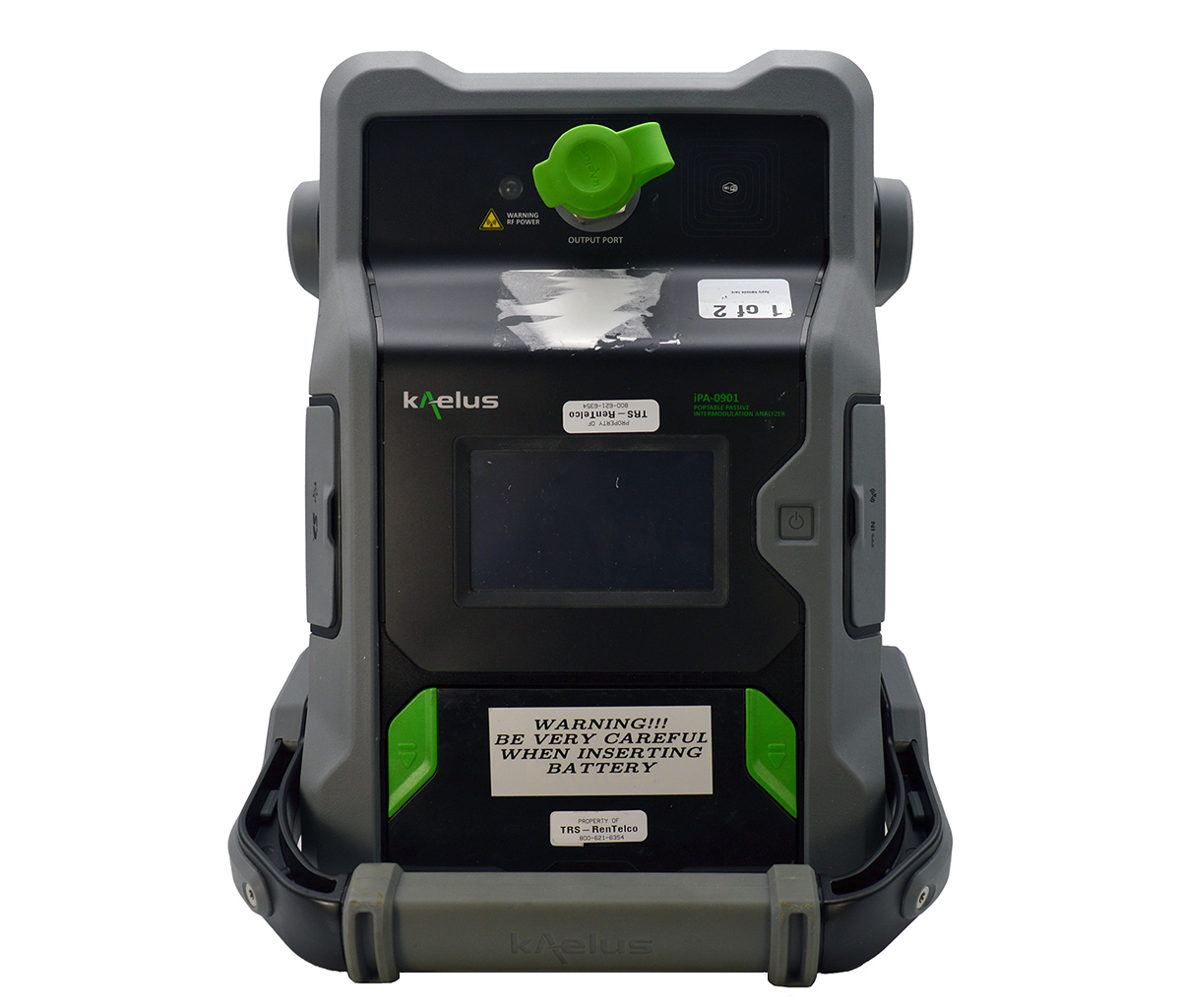

Kaelus IPA-0901A
PIM Test Set EGSM 900, 20 W, 7/16 DIN(f)
The iPA is a battery powered PIM Test Analyzer versatile enough to support multiple test scenarios such as testing at the top of the tower, base of tower, roof top and in-building for DAS systems. This Kaelus PIM test analyzer offers an innovative design that's focused on increasing efficiency and safety.
The iPA is an IEC compliant high-power instrument that is highly portable, rugged, and reliable. Each iPA comes equipped with a protected touch screen interface for local control as well as an iPad Mini for remote control allowing the operator hands-free dynamic testing to ensure an easy and efficient portable field testing experience.
The key features and specifications of Kaelus (formerly Summitek) iPA-0901A include:
- Rugged and reliable; designed with tower climbers in mind
- Frequency increment in steps of 100kHz to any frequency in the specified transmit bands
- Calculates the IM product frequencies automatically
- Tablet computer with Wi-Fi included to transfer control of iPA
- Simple to operate iPA touch screen interface
- Extensive reporting capabilities
- The measurement modes include spectrum monitor, frequency sweep and time trace modes
- Eco Mode to conserve battery life when not in use
- Measurement method is of reverse (reflected) PIM, 3rd and 5th order. (iPA-2100A 3rd, 5th and 7th order)
- Residual PIM operating system ports < -117dBm/-160dBc maximum (<-125dBm/-168dBc typical)
- Multiple interface ports comprising of 1x RF output (7-16 DIN female), 1x USB 2.0 Host, 1x USB 2.0 Slave, 1x SD; 1x monitor port (SMB female), 1x SMA-RP (Wi-Fi external antenna)
- Wide operating temperature range of -10?C to 45?C
TRS-RenTelco is an authorized distributor of ConcealFab PIM Hunting and Mitigation Soluitions. See the catalog on the resource tab.
- Configurations
- Resources
R92-0287, R92-0443, R92-0445
See Configuration Details
-
R92-0287
Battery IPA (Quantity 2 pcs )
-
R92-0443
Dual Battery Charging Cradle
-
R92-0445
Hard Case Assembly IPA
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-MiniB
Qty: 1 -
Charger USB
Qty: 1 -
Battery Lithium Ion
Qty: 3 -
Cradle Dual Charging
Qty: 1 -
Charger Car USB
Qty: 1 -
Strap Shoulder
Qty: 1 -
Carabiner with Screw Keylock
Qty: 2 -
Adapter 7/16 Din(m) - 7/16 Din(f)
Qty: 1 -
Antenna WiFi
Qty: 1 -
Tablet and Accessories
Qty: 1 -
AC Adapter
Qty: 1 -
Void- USB Drive with Software and Manuals
Qty: 1 -
Memory Card SDHC 4GB Or Greater
Qty: 1
