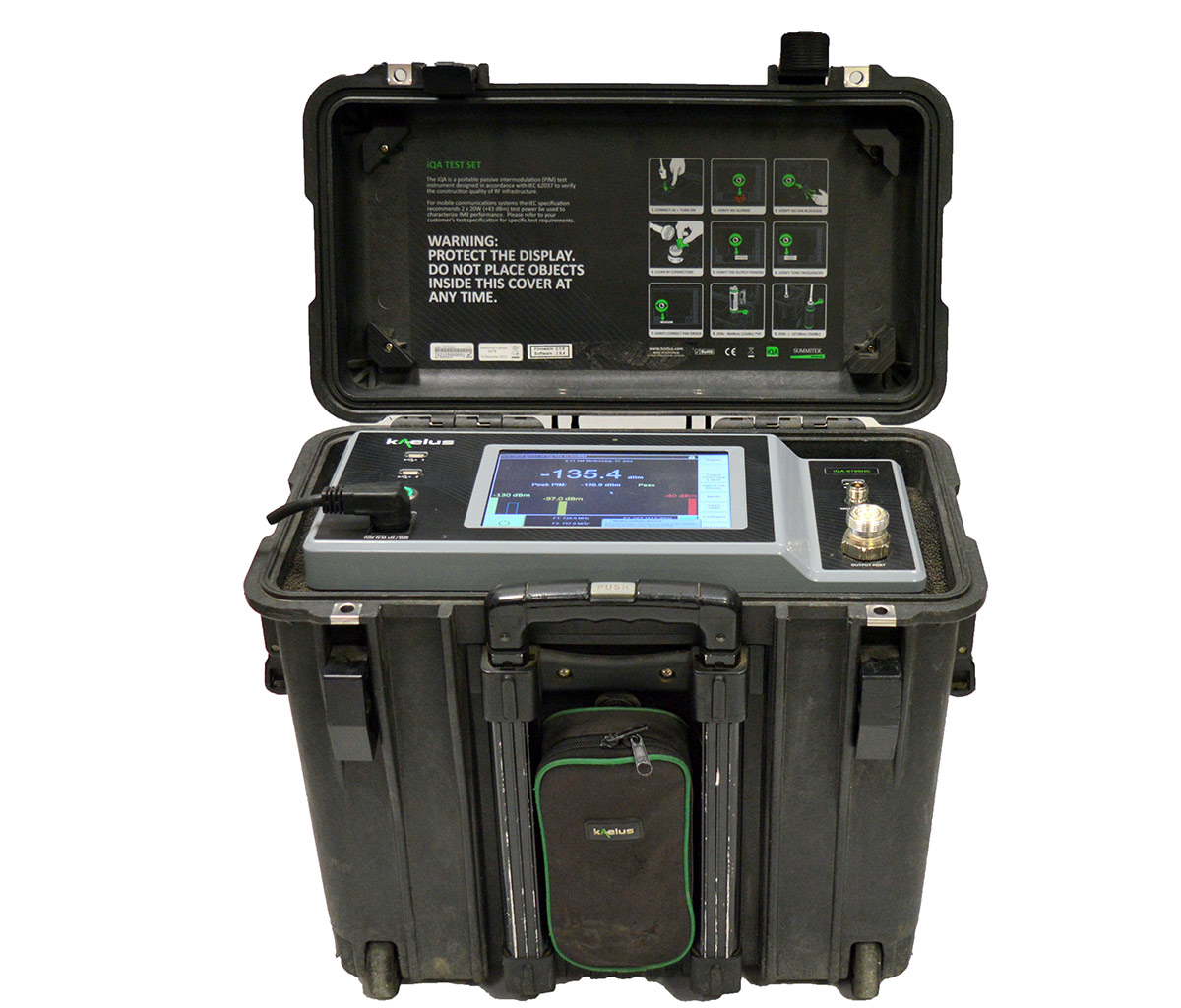

Kaelus IQA-700HC

PIM Test Set 700 MHz, 20 W, 7/16 DIN(f)

The Kaelus (formerly Summitek) iQA-700HC is a Passive Intermodulation or PIM Test Set. The iQA-700HC is part of Kaelus's iQA series of portable PIM testers. The iQA series is designed for those applications where greater operator control is desired or required to better analyze and understand cellular base station RF infrastructure quality and performance. These systems provide an interactive operator interface via a touch screen LCD display. As with the IMT series analyzers, the iQA analyzers perform an industry standard two tone PIM measurement at 20 Watts per carrier. The operator can select the frequency and power level of the test tones and measure reflected, IM3, IM5, and IM7 results. The iQA test sets are completely portable and have the ability to provide hard copy reports.

Here is the list of specifications for the Kaelus (formerly Summitek) iQA-700HC:


  • Measurement method: Reverse (reflected) PIM, 3rd, 5th, 7th, 9th and 11th order
  • Residual PIM: < -115dBm/-158dBc max (<-125dBm/-168dBc typ) (x2 @ 20W)
  • User interface ports: 3x USB, x1 LAN, 1x RF output (7-16 DIN female), 1x monitor port (N female)
  • Display: 8.4in (213mm) touch screen display


  • Frequency increment: 100 kHz
  • Frequency accuracy: ? 5ppm (max), aging ? 1ppm (max) after first year
  • Power per tone (adjustable): 2x 2 to 20W ( 33 to 43dBm)
  • Power accuracy (per tone): ? 0.5dB (max)


  • Measurement noise floor: < -128dBm
  • Measurement range: -55dBm to -128dBm

The Kaelus (formerly Summitek) iQA-700HC is available for rent and purchase. Request a quote at TRS-RenTelco today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Adapter 7/16 Din(m) - 7/16 Din(f)

    Qty: 1
  • void- USB Drive with Software and Manuals

    Qty: 1
