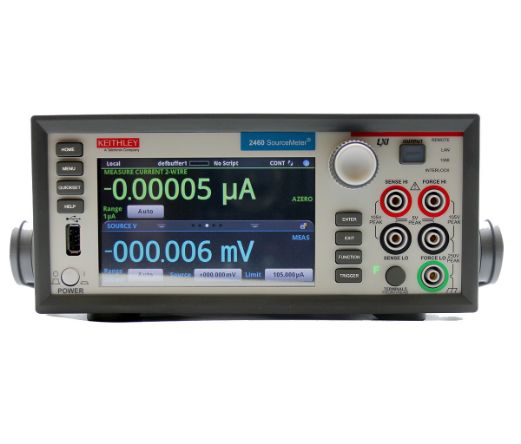

Keithley 2460

SourceMeter

Expand your measurement capabilities with the high-performance Keithley 2460 Source Measure Unit that combines the functionalities of analyzers, curve tracers, and I-V systems, in just one instrument.

The Keithley 2460 SourceMeter? features an innovative 5-inch, high-resolution capacitive touchscreen graphical user interface (GUI) that helps minimize the learning curve and makes for convenient operations for engineers and scientists. It supports parallel testing of multiple devices for semiconductor labs and high throughput production tests. The SourceMeter? also offers programming flexibility and unmatched system integration.

The 2460 gives wide coverage (up to 105 V, 7 A DC/7 A pulse, 100 W max.) for optimally characterizing and testing high power materials and devices such as silicon carbide (SiC), gallium nitride (GaN), DC-DC converters, power MOSFETs, solar cells and panels, LEDs and lighting systems, electrochemical cells and batteries, and more.

Keithley 2460 - Features and Specifications:

  • Max Voltage: 100 V
  • Max Current: 7 A
  • DC Power: 100 W
  • Basic measurement accuracy: 0.012%
  • Resolution: 6 1/2 digits
  • Wideband Noise: 2 mV rms typ.
  • Sweep Types: Linear, Log, Dual Linear, Dual Log, Custom
  • Source and sink (4-quadrant) operation
  • >250,000 Point Reading Buffer
  • >3000 Readings/second
  • SCPI Programming TSP Scripting
  • GPIB, USB, Ethernet (LXI)
  • Front: Banana Jacks. Rear: Mass Screw Terminal Connection

The Keithley 2460 high current SourceMeter? Source Measure Unit (SMU) instrument is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.

Read More
  • Configurations
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable RJ45 Crossover

    Qty: 1
  • Cable USB-A - USB-B

    Qty: 1
  • Test Lead Kit

    Qty: 1
  • Plug for Interlock Mini-Clamp II

    Qty: 1
  • Connector Kit Screw Terminal

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
