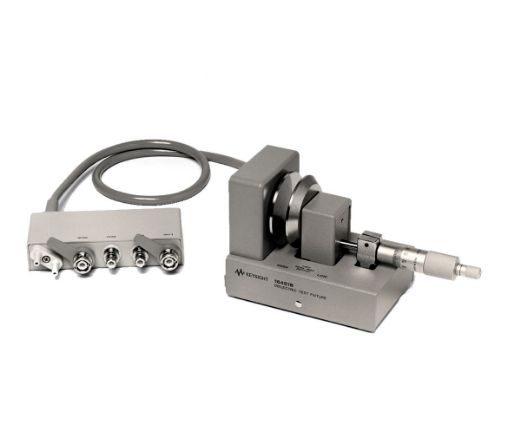

Keysight Technologies 16451B
Dielectic Test Fixture
Rent or Lease
Description: The 16451B is used to evaluate the dielectric constant of solid dielectric materials accurately, and complies with ASTM D150. The 16451B employs the parallel plate method, which sandwiches the material between two electrodes to form a capacitor. LCR meter or an Impedance Analyzer is then used to measure the capacitance created from the fixture. Applicable Instruments: 4263B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, E4980A, (4192A, 4194A, 4263A, 4278A)* * denotes the instrument is obsolete. Frequency: . 30 MHz Maximum Voltage: /-42 V peak max. (AC DC) Operating Temperature: 0C to 55C
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Hex 2.5 mm
Qty: 1 -
Test Fixture with Electrode A Attached Or In Case. Un-guarded Electrode and Covers
Qty: 1 -
Electrode B
Qty: 1 -
Electrode C
Qty: 1 -
Electrode-D
Qty: 1 -
Carrycase
Qty: 1 -
Error Compensation Electrode
Qty: 1
