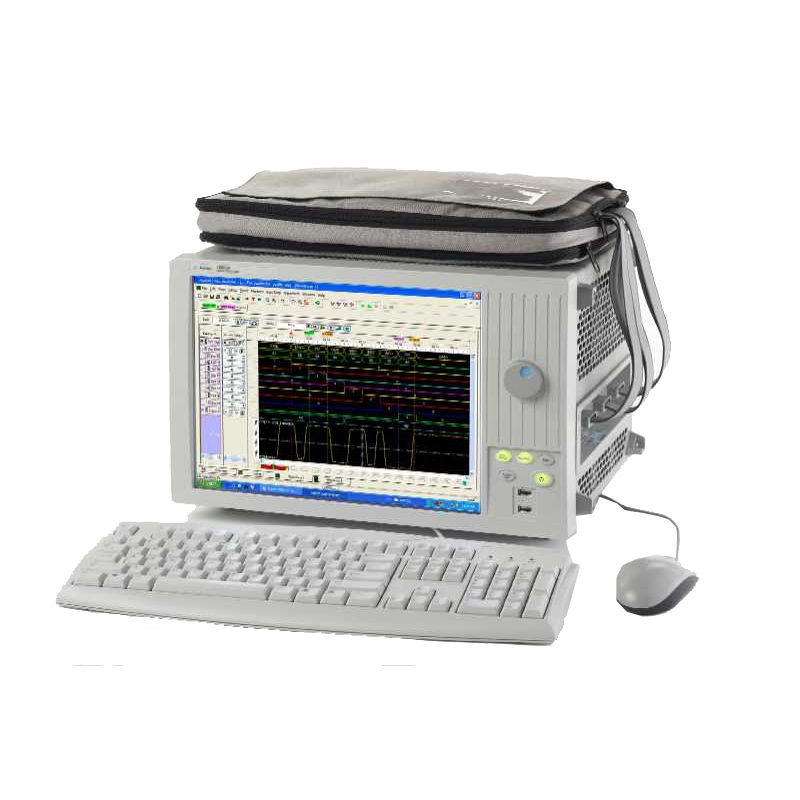

Keysight Technologies 16806A
204-Channel Portable Logic Analyzer
Logic Analyzer Configuration * 15-inch (38.1 cm) color display with touch screen available * 204-channel portable logic analyzer with up to 32 M acquisition memory depth * Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments) Timing Analysis (Asynchronous Sampling) * 4 GHz (250 ps) timing zoom with 64 K memory * 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory * 500 MHz transitional timing State Analysis (Synchronous Sampling) * State clock rates up to 450 MHz * Data rates: up to 500 Mb/s * Automated threshold/sample position setup for accurate measurements on high-speed buses * Simultaneous eye diagrams on all channels identify problem signals quickly Configuration Considerations * Selectable memory depths: 1 M, 4 M, 16 M, 32 M * Compatible with 40-pin logic analyzer probes
Read More
- Configurations
- Resources
- FAQsAI
--, 001, 103
See Configuration Details
-
001
1MB Memory
-
103
Touch Screen
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable Logic Y-Type for 2 Input Pods
Qty: 6 -
Probing Solutions Card
Qty: 1 -
Accessory Pouch
Qty: 1 -
Keyboard PS2
Qty: 1 -
Mouse Optical
Qty: 1 -
DVD Software Logic Analysis Ver5.90.1104
Qty: 1 -
Manual Quick Start 16800 series
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 16806A Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight 16806A?
The Keysight 16806A is a 204-channel portable logic analyzer designed for high-performance timing and state analysis of digital systems, featuring extensive memory depth and advanced triggering capabilities.
What are the key features of the Keysight 16806A?
Key features include up to 32 M acquisition memory depth, 4 GHz timing zoom, 1 GHz conventional timing, 450 MHz state clock rates, and automated setup for high-speed bus measurements.
What applications is the Keysight 16806A suitable for?
It is ideal for debugging and verifying digital systems in applications such as embedded system design, digital hardware verification, and signal integrity analysis.
How does the Keysight 16806A enhance digital system testing?
It provides comprehensive single-ended signal support, adjustable threshold levels, simultaneous eye diagrams, and in-depth analysis to quickly identify and resolve problem signals.
What voltage levels does the Keysight 16806A support?
The analyzer supports voltage levels adjustable from -5 V to 5 V in 10 mV increments.
What accessories are included with the Keysight 16806A?
Accessories include power cords, Y-type logic cables, probing solutions card, accessory pouch, PS2 keyboard, optical mouse, software DVD, and a quick start manual.
Is the Keysight 16806A portable and user-friendly?
Yes, it features a 15-inch color touchscreen display, making it portable and easy to use in various testing environments.
What is the channel capacity of the Keysight 16806A?
The analyzer supports up to 204 channels, allowing extensive testing of complex digital systems.
What are the memory depth options for the Keysight 16806A?
Selectable memory depths are 1 M, 4 M, 16 M, and 32 M, providing flexibility for different testing requirements.
Where can the Keysight 16806A be rented, leased, or purchased?
The Keysight 16806A can be rented, leased, or purchased through TRS-RenTelco.
