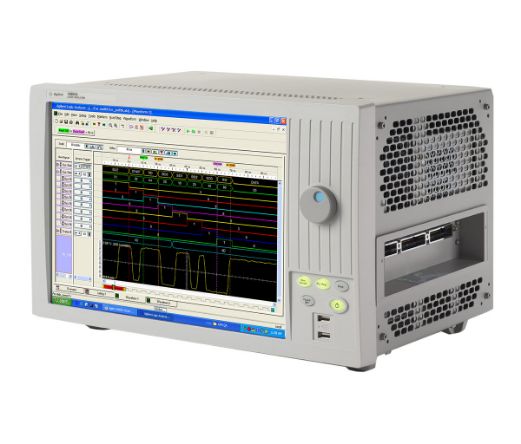

Keysight Technologies 16823A

102-Channel Portable Logic Analyzer

The Keysight (formerly Agilent) 16823A is a 102-Channel Portable Logic Analyzer that includes the likes of logic analysis, pattern generation, application software and high-quality probing, all of which comes in one compact and affordable device.

Here are some of the top specifications of the Keysight (formerly Agilent) 16823A:

  • 15-inch (38.1 cm) color display with touch screen available
  • 102-channel portable logic analyzer with up to 32 M acquisition memory depth
  • Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
  • 48-channel pattern generator with up to 300 MVector/s speed and 16 M vector depth Timing Analysis (Asynchronous Sampling)
  • 4 GHz (250 ps) timing zoom with 64 K memory
  • 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
  • 500 MHz transitional timing State Analysis (Synchronous Sampling)
  • State clock rates up to 450 MHz
  • Data rates: up to 500 Mb/s
  • Automated threshold/sample position setup for accurate measurements on high-speed buses
  • Simultaneous eye diagrams on all channels identify problem signals quickly Configuration Considerations
  • Selectable memory depths: 1 M, 4 M, 16 M, 32 M
  • Compatible with 40-pin logic analyzer probes
  • Pattern Generator clock and data pods are ordered separately

You can acquire the Keysight (formerly Agilent) 16823A for rent or lease at TRS-RenTelco. Request a quote today.

Read More
  • Configurations
  • Resources
--, 032, 103
See Configuration Details
  • 032

    Increase Acquisition Memory Depth To 32m

  • 103

    Touch Screen

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable Logic Y-Type for 2 Input Pods

    Qty: 3
  • Stylus

    Qty: 1
  • Probing Solutions Card

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Manual Installation and Quick Start Guide

    Qty: 1
  • Keyboard USB

    Qty: 1
  • Mouse Optical

    Qty: 1
  • DVD Software Logic Analysis Ver5.90.1104

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 032, 103, 500
See Configuration Details
  • 032

    Increase Acquisition Memory Depth To 32m

  • 103

    Touch Screen

  • 500

    Increase Maximum State Speed To 500 Mb/S

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable Logic Y-Type for 2 Input Pods

    Qty: 3
  • Stylus

    Qty: 1
  • Probing Solutions Card

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Manual Installation and Quick Start Guide

    Qty: 1
  • Keyboard USB

    Qty: 1
  • Mouse Optical

    Qty: 1
  • DVD Software Logic Analysis Ver5.90.1104

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, 032, 500
See Configuration Details
  • 032

    Increase acquisition Memory Depth to 32M

  • 500

    Increase maximum State speed to 500 Mb/s

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Cable Logic Y-Type for 2 Input Pods

    Qty: 3
  • Stylus

    Qty: 1
  • Probing Solutions Card

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Manual Installation and Quick Start Guide

    Qty: 1
  • Keyboard USB

    Qty: 1
  • Mouse Optical

    Qty: 1
  • DVD Software Logic Analysis Ver5.90.1104

    Qty: 1
