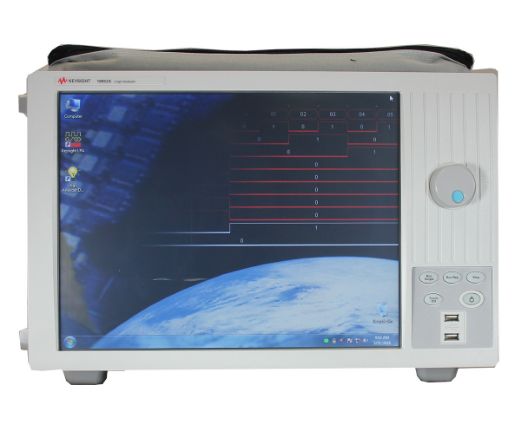

Keysight Technologies 16852A

68-Channel Portable Logic Analyzer

The Keysight 16852A is a 68-channel portable logic analyzer with 2.5 GHz timing in deep memory from the brand formerly known as Agilent.

Keysight 16952A - Key Features & Specifications:

Timing analysis (asynchronous sampling)

  • 2.5 GHz/5GHz (400 ps/200 ps) deep conventional and transitional timing analysis (full/half channel)
  • Up to 128M/256M deep memory (full/half channel)
  • 12.5 GHz (80 ps) Timing Zoom with 256 K memory

State analysis (synchronous sampling)

  • 350 MHz state clock/700 Mbps data rate (standard)*
  • 700 MHz state clock/1400 Mbps data rate (optional)*
  • Up to 128M deep memory
  • Reliable measurements on eye openings as small as 200 ps by 100 mV

Trigger sequencer

  • 1.4 GHz standard

Probing

  • Single-ended direct connect flying lead, Mictor and Soft Touch Pro
  • Compatible with U4201A cable plus any 90-pin header probes

You can rent or buy the Keysight, formerly Agilent 16852A portable logic analyzer from TRS-RenTelco. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.

*Custom store qualification timing mode used for < 12.5 MHz clock rates for equivalent state mode

Read More
  • Configurations
  • Resources
---, 700
See Configuration Details
  • ---

    Base Unit

  • 700

    Increase Maximum State Speed To 700 Mhz, 1.4 Gsa/S

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Accessory Pouch

    Qty: 1
  • Keyboard USB

    Qty: 1
  • Mouse Optical

    Qty: 1
