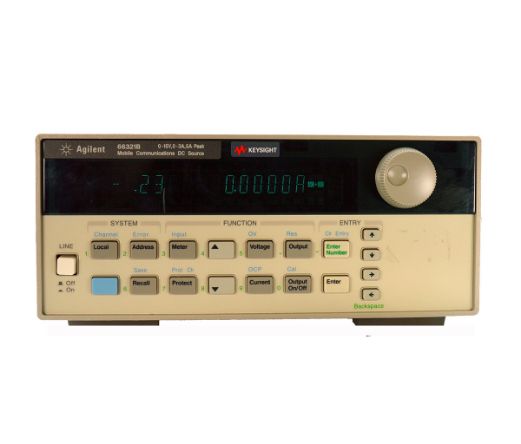

Keysight Technologies 66321B
Mobile Communications DC Source w/ Battery Emulation
Key Specifications:
- Output RatingsVoltage: 0 to 15 V
- Current: 0 to 3 A
- Peak Current for up to 7 ms: 5 A Programming accuracy at 25C /-5C (% of setting plus fixed)
- Voltage: 10 mV
- Current: 1.33 mA Ripple & Noise (20 Hz to 20 MHz)
- Voltage rms: 1 mV
- Peak-to-Peak: 6 mV
- Current rms: 2 mA Readback Accuracy
- DC readback accuracy (at 25C /-5C): 0.04% , 5 mV
- AC DC readback accuracy (at 25C /-5C) with DC plus a sinewave input > 25 mV rms: 1% , 5 mV, (60 Hz to 10 kHz)
If you are looking for a new or well-maintained used Keysight (formerly Agilent) - 66321B Mobile Comm DC Source w/ Battery Emulation on rent, lease or for sale, contact us or request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Terminal Block 4-Pin Connector note: installed on some units
Qty: 1 -
Cord Power
Qty: 1 -
Connector 5-Pin
Qty: 1 -
Jumper Assembly
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 14565B
See Configuration Details
-
14565B
Device characterization Software w/ Test automation, fixed perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Terminal Block 4-Pin Connector note: installed on some units
Qty: 1 -
Cord Power
Qty: 1 -
Connector 5-Pin
Qty: 1 -
Jumper Assembly
Qty: 2 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.3.29517
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 230
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Terminal Block 4-Pin Connector note: installed on some units
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 66321B Spec Sheet
