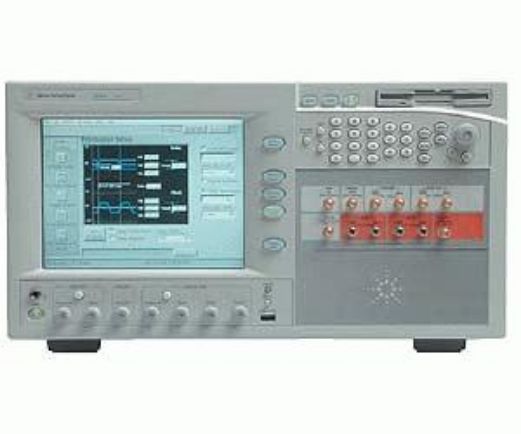

Keysight Technologies 81142A
13.5 GHz Serial Pulse Data Generator, 2.4 mm (f)
The new Keysight (formerly Agilent) 81142A 13.5GHz Serial Pulse Data Generator provides what is needed to conduct physical layer tests e.g. precision low jitter signals or full control of data streams for stress tests. Its linear delay modulation is essential for jitter tolerance and jitter transfer measurements. The Keysight 81142A will enable computer and semiconductor test engineers to accurately characterize components being developed for the next-generation serial buses used in high-speed transmission systems.
Key Benefits of the 81142A:
- Pulse, Data Pattern and PRBS generation from 150MHz up to 13.5GHz
- Differential outputs for data, clock and trigger
- Trigger and external clock input
- Fastest transition times < 20 ps
- Data formats: NRZ, R1 and RZ
- Low jitter, high accuracy signals with Jitter < 1ps RMS
- Up to 1GHz jitter modulation bandwidth
- 32Mbit Memory for long, %22real world%22 patterns
- Sequencing and looping for protocol based data
- Event trigger capabilities
- Subrate clock for easy generation of reference clock
Rent or lease the Keysight (formerly Agilent) 81142A Serial Pulse Data Generator from TRS-RenTelco with 24/7 customer service. Request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4 mm(m) - 3.5 mm(f)
Qty: 4 -
Cord Power
Qty: 1 -
Stylus
Qty: 1 -
Operating Note
Qty: 1 -
Terminator SMA Input 50 Ohm
Qty: 4 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 81142A Spec Sheet
