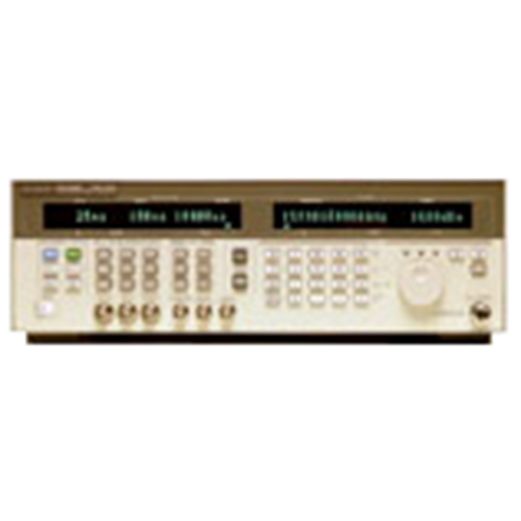

Keysight Technologies 83732B

10 MHz - 20, GHz Synthesized Signal Generator, Type N (f)

Achieve effective frequency coverage and modulation with excellent reliability with the Keysight (formerly Agilent) 83732B Synthesized Signal Generator.

The 83732B includes features such as pulse modulation for testing of radar and EW receivers, scan modulation for simulation of a scanning antenna, frequency modulation for simulation of comms data, and phase modulation for satellite and radar applications.

Keysight 83732B Features and Specifications:

  • Frequency range: 10MHz to 20GHz
  • Resolution: 1kHz
  • Harmonics: <-55 dBc (at levels < 6 dBm)
  • Maximum pulse repetition frequency: >3MHz
  • Input impedance: 50 ohmes nominal; TTL drive levels
  • Pulse repetition frequency: 3Hz to >3MHz
  • Pulse repetition interval (PRI): 300 ns to 419 ms
  • Pulse width (Tw): 25 ns to 419 ms

The Keysight 83732B Synthesized Signal Generator is available for rent or lease at TRS-RenTelco with 24/7 support. Contact us at 800-874-7123 to know more.

Read More
  • Configurations
  • Resources
--, 1E1, 1E5, 1E8
See Configuration Details
  • 1E1

    Adds 90 dB Step Attenutator

  • 1E5

    High-stability timebase

  • 1E8

    1 Hz Frequency Resolution

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • CD Manuals

    Qty: 1
Rent or Lease

Checkout first to get details on the cost.

Buy Used

Checkout first to get details on the cost.
