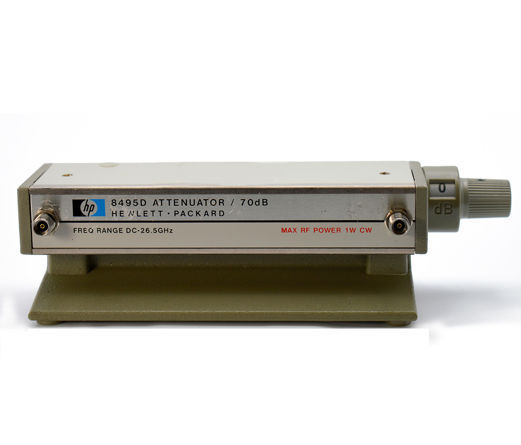

Keysight Technologies 8495D

DC - 26.5 GHz, 70 dB, Manual Step Attenuator
The Keysight (formerly Agilent) 8495D dc to 26.5 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. Custom step attenuator/switch combinations are possible. The Keysight (formerly Agilent) 11716A/B/C interconnect kits provide quick connection of Keysight (formerly Agilent) 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

Features
  • Frequency range: dc to 26.5 GHz
  • Attenuation range: 0 to 70 dB, 10 dB steps
  • Insertion loss at 0 dB: 0.4 dB 0.09 dB/GHz
  • Maximum SWR: 1.6 to 12.4 GHz, 1.9 to 18 GHz, 2.2 to 26.5 GHz
  • Repeatability life: 0.03 dB maximum to 18 GHz, 0.05 dB maximum to 26.5 GHz, 5 million cycles per section
  • Maximum RF input power: 1 W (average), 100 W (peak)
  • Connector type: 3.5 mm female
Read More
  • Configurations
  • Resources
--, 004
See Configuration Details
  • 004

    APC-3.5 (f) connectors

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Manual Operation and Service
