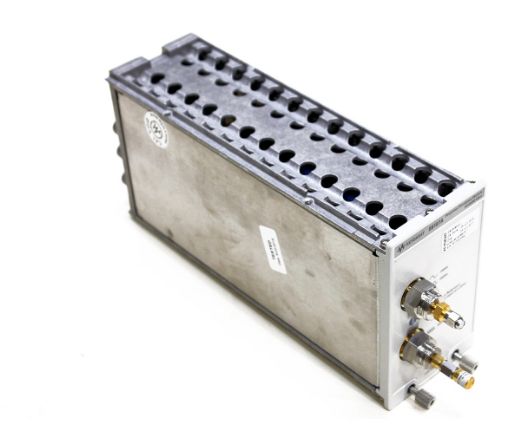

Keysight Technologies 86107A

Precision timebase reference module

The Keysight (formerly Agilent) 86107A is a precision timebase reference module, that enables precision jitter analysis of electrical signals at very high rates above 10 Gb/sec. and optical signals at even higher rates above 20 GB/sec.

The key specifications of the Keysight 86107A precision timebase reference module include:

  • Input Signal Type: Synchronous clock, square wave to sine wave shape
  • Input Signal Characteristic levels: 0.2 - 1.5 Vpp
  • Input Signal Trigger range: 2 to 48 GHz (depends on options)
  • Electrical Input: 3.5 mm male (2.4 mm male for frequencies > 25 GHz BW)
  • Bandwidth: 15, 20, 48 GHz
  • Timebase Jitter: < 200 fs RMS (for frequencies > 4 GHz), < 280 fs RMS (for frequencies < 4 GHz)
  • Compatibility: 86100A/B/C Infiniium DCA/DCA-J Mainframes

TRS-RenTelco offers the Keysight (formerly Agilent) 86107A precision timebase reference module for rent or lease, and the equipment is shipped with minimal lead time. Our experienced team of metrologists and technicians calibrates the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us today, request a quote and avail our 24/7 customer support.

Read More
  • Configurations
  • Resources
--, 010
See Configuration Details
  • 010

    2.5 GHz and 10 GHz clock input capability

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Termination 50 Ohm SMA

    Qty: 1
  • Adapter APC 3.5 mm(f) - APC 3.5 mm(f)

    Qty: 1
  • USB Drive with Software and Manuals

    Qty: 1
