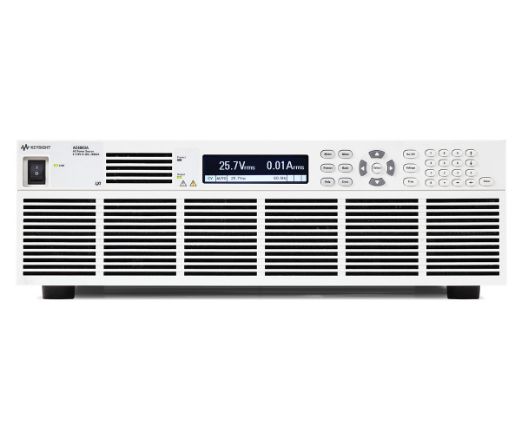

Keysight Technologies AC6803A
2000 VA, 270 V, 10 A Basic AC Power Source,
Rent or Lease
The Keysight AC6803A basic AC source provides a basic AC source alternative with:
- A complete AC and DC power and measurement solution.
- A simple, intuitive user interface tested over time that allows users to easily access and view setup and measurement information directly from the front panel or programmatically.
- Flexible IO with standard LAN/LXI-Core and USB interfaces.
AC Output Ratings:
- Power: 2000 VA
- Ranges: 135 Vrms, 20 A or 270 Vrms, 16 A or 380 V, 10 A
- Maximum peak current: 60 A for 135 Vrms; 30 A for 270 Vrms
- Frequency: 40 to 500 Hz
DC Output Ratings:
- Power: 1600 W
- Ranges: 190 V, 8 A
Programming Accuracy:
- Voltage: 0.3% of full scale for 135 V range; 0.25% of full scale for 270 V range
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Output Cover
Qty: 1 -
Cover Set AC Input
Qty: 1 -
OPERATING AND SERVICE GUIDE
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, GPIB
*This item has already been added to your cart. Check your cart for quantity and availability.
User Manual - Keysight Technologies AC6800A series
Datasheet - Keysight Technologies AC6800A series
Video - Measuring Inrush Current with an AC Source Keysight AC6800 and Reducing Inrush Current
