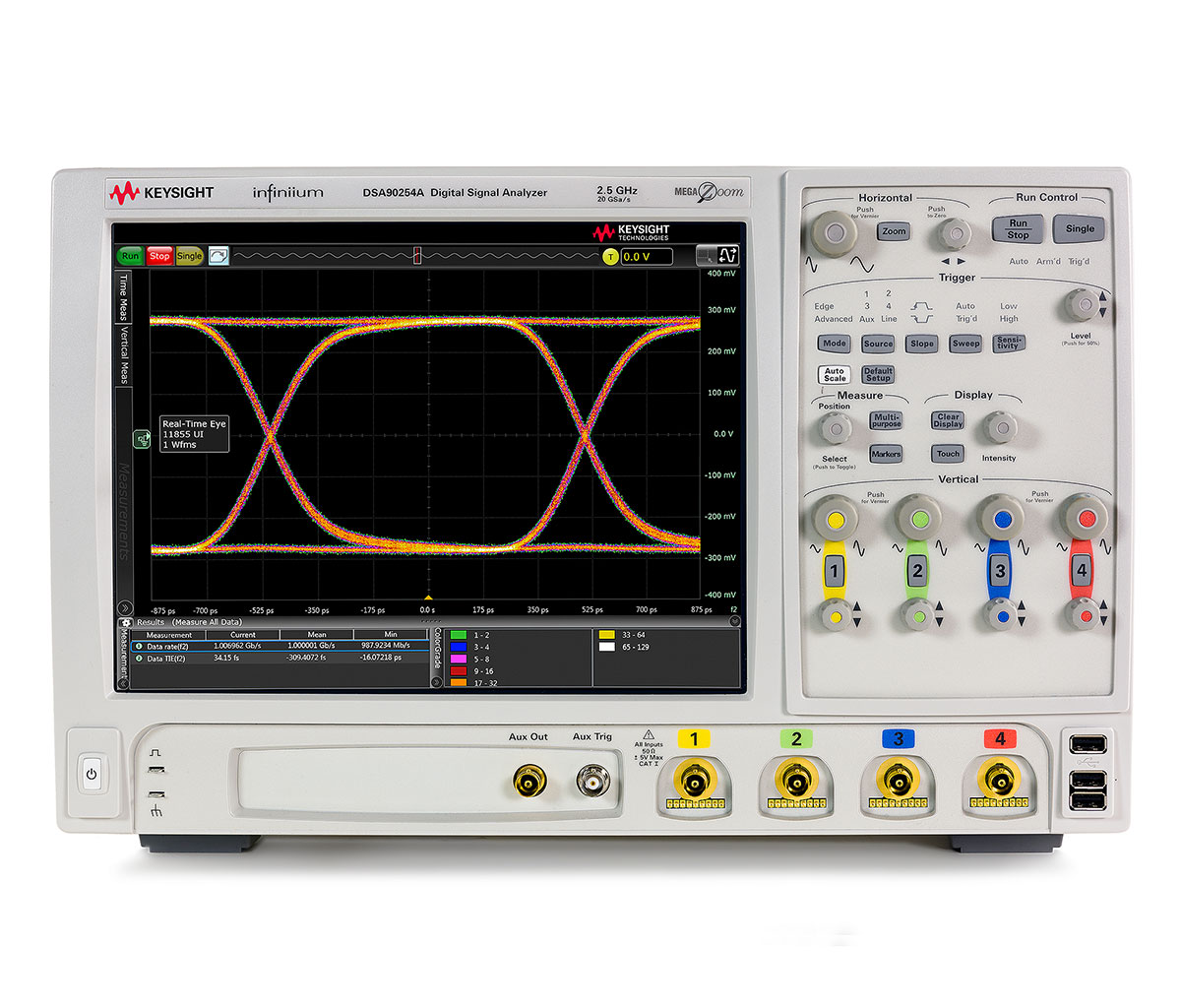

Keysight Technologies DSA90254A
4 Ch 2.5 GHz Oscope
Get superior measurement accuracy with a low noise floor and deep jitter analysis capability, and capture longer signal traces with the Keysight (formerly Agilent) DSA90254A digital signal analyzer.
The DSA90254A gives accurate, quick and effective compliance test results and is highly reliable for debugging and analysis applications. With full-bandwidth probing solutions and hardware accelerated de-embedding and equalization techniques, the DSA90254A is best-suited for high-speed measurements.
Keysight DSA90254A - Features and Specifications:
- 2.5 GHz bandwidth
- 50 Mpts to 1 Gpts on each channel
- 20 GSa/s on each of 4 analog channels
- Lowest noise floor: 0.64 mVrms at 50 mV/div
- Includes Serial Data Analysis, Noise Reduction, and EZJIT software
- Deepest jitter analysis capabilities (PRBS^23) and most accurate real-time Tj and Rj characterization for data rates at 8.5 Gb/s and below
- De-embedding that's hardware-accelerated for easy compensation for probe, fixture, and channel effects.
The Keysight (formerly Agilent) DSA90254A Digital Signal Analyzer is available for rent or lease at TRS-RenTelco with 24/7 customer support. Contact us for more information or request a quote today.
- Configurations
- Resources
--, 801, 803, 805, DSA, N5475A
See Configuration Details
-
801
80-GB removable Hard disk Drive. Replaces Internal Hard disk with a removable Hard disk. Order the
-
803
Additional 2 GB CPU Memory (4 GB total)
-
805
GPIB Card Option (New Units only. No after purchase Addition possible.)
-
DSA
Includes DSO OptionS 002, 003, 004, 005, 20M
-
N5475A
Transit case for 90000 Series Oscilloscopes
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter SMA(m) - SMA(m)
Qty: 1 -
Load(m) 50 Ohm
Qty: 1 -
Adapter BNC(f) - SMA(m)
Qty: 1 -
Stylus
Qty: 1 -
Probe Deskew PV Fixture
Qty: 1 -
Adapter BNC(m) - SMA(m)
Qty: 1 -
Cover Front
Qty: 1 -
Power Cord Notched Heavy Duty Right Angle
Qty: 1 -
Case Plastic
Qty: 1 -
Case Transit for DSA90000
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 009, 031, 032, 801, 803, 805, DSA, N5475A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter BNC(f) - SMA(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 008, 021, 029
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter BNC(f) - SMA(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 801, 803, 805, DSA, N5472B, N5472C, N5475A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter BNC(f) - SMA(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 040, 801, 803, 805, DSA, N5475A
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter BNC(f) - SMA(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
