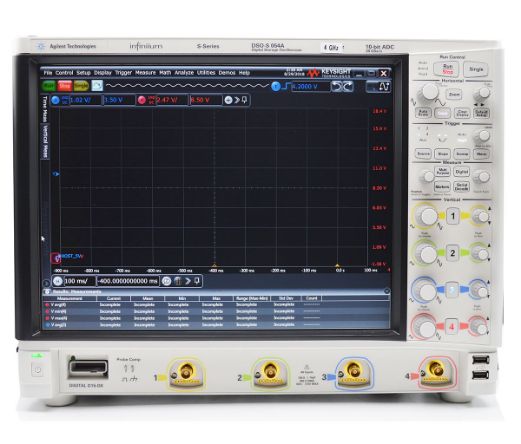

Keysight Technologies DSOS404A
4 Ch 4 GHz Oscilloscope - Infiniium S Series
The Keysight (formerly Agilent) DSOS404A Real Time Oscilloscope is part of the Keysight Infiniium S-series of high definition oscilloscopes.
The Keysight Infiniium S-Series high-definition oscilloscopes incorporate new technology to deliver superior measurements. A 10-bit ADC, low-noise front end, correction filters, vertical scaling support down to 2 mV/division, and a precise time base produce high-fidelity measurements. In addition, its advanced frame and broad range of capability enable the S-Series oscilloscopes to tackle a wide range of test needs.
Key specifications of the Keysight DSOS404A:
- Bandwidth: 4 GHz
- Channels: 4
- Max Memory Depth: 800 Mpts (2 channels), 400 Mpts (4 channels)
- Max Sample Rate: 20 GSa/s (2 channels), 10 GSa/s (4 channels)
- Display Size: 15 inch
- ADC Bits: 10 bits
- Noise Floor: 768 ?Vrms at 50 mV/div
- Effective Number of Bits (ENOB): 7.2
- Typical Rise/Fall Time: 107.5 ps (10-90%), 77.5 ps (20-80%)
TRS-RenTelco offers the Keysight (formerly Agilent) DSOS404A RealTime Oscilloscope for rent or for lease, with our 365 day, 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.
Get this device with minimal lead time. Contact us to request a quote today.
- Configurations
- Resources
--, 200
See Configuration Details
-
200
Includes 200 Mpts/CH Memory
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Probe N2873A
Qty: 4 -
Accessory Pouch
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Cover Front Protection
Qty: 1 -
Cable Calibration 50 Ohm BNC(m) - BNC(m)
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 400
See Configuration Details
-
400
Memory Upgrade, 400 Mpts/800 Mpts (4-ch/2-ch), fixed perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Probe N2873A
Qty: 4 -
Accessory Pouch
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Cover Front Protection
Qty: 1 -
Cable Calibration 50 Ohm BNC(m) - BNC(m)
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
