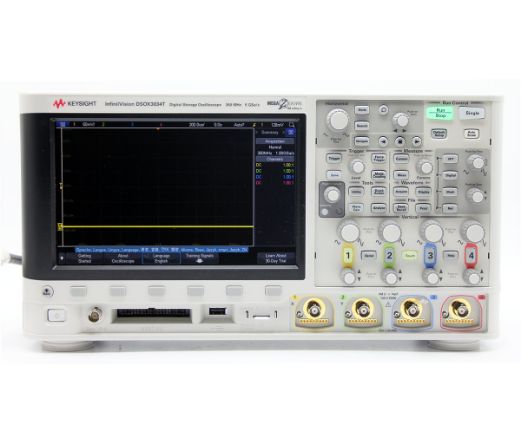

Keysight Technologies DSOX3034T

4-channel, 350 MHz Oscilloscope

The Keysight DSOX3034T is a 4-channel model in the Keysight's InfiniiVision 3000 X-Series (350MHZ) of oscilloscopes. Highlights of the DSOX3034T include 1,000,000 waveforms/ sec. 2 GSa/s per channel, 4 GSa/s half-channel interleavedmode., 4Mpts (Optional, 2Mpts standard), and the ability to upgrade capabilities, such as serial measurement applications in the future.

Here's a full list of specifications for the Keysight DSOX3034T:

  • Bandwidth: 350 MHz
  • Bandwidth Upgrades: Available
  • Channels: 4
  • Max Memory Depth: 4 Mpts
  • Max Sample Rate: 5 GSa/s
  • Display Size: 8.5 inch capacitive touch
  • Waveform Update Rate: 1,000,000 wfms/s
  • ADC Bits: 8 bits
  • Built-In Instruments (Optional): Digital Channels, 3-digit DVM, 20 MHz AWG, 8-digit Counter
  • Special Triggers: Touch Zone Trigger
  • Protocol Trigger and Decodes: Optional
  • Operating System: Embedded
  • Real-Time: Yes

The Keysight DSOX3034T is available for rent or purchase at TRS-RenTelco. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.

Read More
  • Configurations
  • Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Probe Passive 500 MHz x10

    Qty: 4
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
--, GENA
See Configuration Details
  • GENA

    Node-locked perpetual license

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Probe Passive 500 MHz x10

    Qty: 4
Rent or Lease

Check out first to get details on the cost.

*This item has already been added to your cart. Check your cart for quantity and availability.
