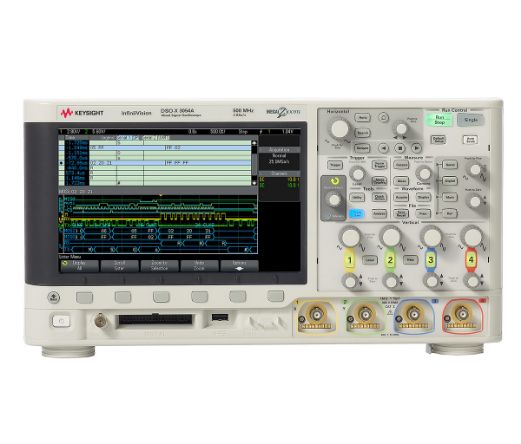

Keysight Technologies DSOX3054A
4 Ch 500 MHz Oscilloscope
Analyze and display waveforms or digital signals with the Keysight (formerly Agilent) DSOX3054A digital oscilloscope. With a touch screen, modern interface, and a waveform update rate of up to 1,000,000 wfm/s, the DSOX3054A can deliver a wide range of serial decodes.
It comes with 7-in-1 instrument integration and impeccable signal integrity, giving a resolution of up to 12 bits. The Keysight DSOX3054A can be used for the maintenance and repair of systems along with measurement and testing applications.
Keysight DSOX3054A - Features and Specifications:
- 8.5-inch touch screen display
- Built-in 20 MHz function generator
- Memory of 2 Mpts (standard) and 4 Mpts (optional)
- Sample rate 4 GS/s for half channel and 2 GS/s for full channel
- Bandwidth of 500MHz (-3dB)
- Waveform update rate - up to 1 million waveforms per second
The Keysight DSOX3054A digital oscilloscope is available for rent or lease at TRS-RenTelco. Contact us or request a quote.
- Configurations
- Resources
**, ** 232, ** AER, ** AMS, ** DVM, ** EDK, ** FLEX, ** LMT, ** LSS, ** MAT, ** MEMUP, ** PWR, ** SGM, ** SND, ** VID, ** WAVEGEN, --
See Configuration Details
-
**
Sale price for Base Model only, options below can be added for additional cost
-
** 232
RS232/UART Serial Decode and Trigger, fixed perpetual license
-
** AER
MIL-STD 1553 and ARINC 429 Serial Triggering and Analysis, fixed perpetual license
-
** AMS
CAN and LIN Automotive Serial Decode, fixed perpetual license
-
** DVM
Digital Volt Meter -2.5-digit DVM + 5-digit counter, fixed perpetual license
-
** FLEX
Flexray Measurement
-
** LMT
Limit Mask Testing, fixed perpetual license
-
** EDK
Education Kit for DSO X 3000 Series Oscilloscopes, fixed perpetual license
-
** LSS
I2C and SPI Low Speed Serial Decode, fixed perpetual license
-
** MAT
Advanced math Measurement
-
** MEMUP
Memory Upgrade - 4 Mpts of MegaZoom IV
-
** PWR
Power Analysis Application for 3000X Series Oscilloscopes, fixed perpetual license
-
** SGM
Segmented Memory, fixed perpetual license
-
** SND
I2S Decode and Triggering Option, fixed perpetual license
-
** VID
Enhanced Video/TV Application Package, fixed perpetual license
-
** WAVEGEN
WaveGen 20 MHz Function/Arbitrary Waveform Generator, installed fixed perpetual license
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Probe Passive x10 500 MHz
Qty: 4
