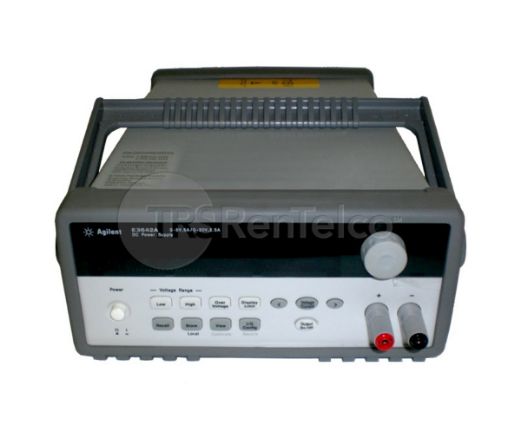

Keysight Technologies E3642A
50W Power Supply, 8V, 5A or 20V, 2.5A
Key Specifications: Output Ratings (@ 0C to 40C) * Range 1: 0 to 8 V / 5 A * Range 2: 0 to 20 V / 2.5 A Programming Accuracy (@ 25C /-5C), /-(% output offset) * Voltage: <0.05% 10 mV * Current: <0.2% 10 mA Ripple & Noise 20 Hz to 20 MHz * Normal Mode Voltage: <5 mVpp / 0.5 mVrms * Normal Mode Current: <4 mArms * Common Mode Current: <1.5 microArms Readback Accuracy (@ 25C /-5C), /-(% output offset) * Voltage: <0.05% 5 mV * Current: <0.15% 5 mA
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.3.29517
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies E3642A Manual
Keysight Technologies E3642A Spec Sheet
