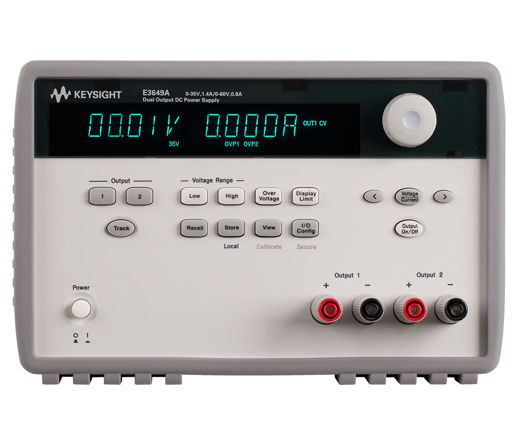

Keysight Technologies E3649A
100W Dual Output (2 - 35V/1.4A or 2 - 60V/.8A) DC PS
Key Specifications Output Ratings (@ 0C to 40C) 2 Outputs * Range 1: 0 to 35 V / 1.4 A * Range 2: 60 V / 0.8 A Programming Accuracy (@ 25C /-5C), /-(% output offset) * Voltage: <0.05% 10 mV (<0.1% 25 mV for output 2 of E3646/47/48/49A) * Current: <0.2% 10 mA Ripple & Noise 20 Hz to 20 MHz * Normal Mode Voltage: <8 mVpp / 1 mVrms * Normal Mode Current: <4 mArms * Common Mode Current: <1.5 microArms Readback Accuracy (@ 25C /-5C), /-(% output offset) * Voltage: <0.05% 5 mV (<0.1% 25 mV for output 2 of E3646/47/48/49A) * Current: <0.15% 5 mA (<0.15% 10 mA for output 2 of E3646/47/48/49A)
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Bumper Kit
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
100W Dual Output (2 - 35V/1.4A or 2 - 60V/.8A) DC PS
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies E3649A Manual
Keysight Technologies E3649A Spec Sheet
