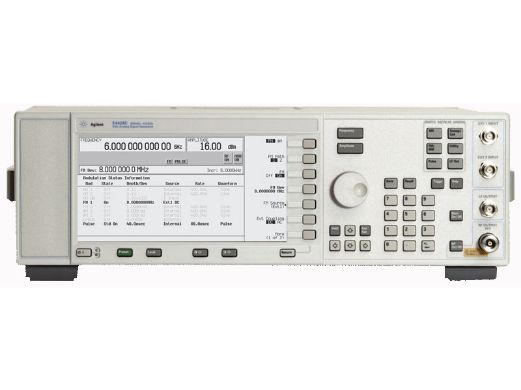

Keysight Technologies E4428C-506
6 GHz ESG Analog Signal Generator, Type N (f)
The Keysight (formerly Agilent) E4428C-506 is an Analog Signal Generator, which provides excellent all-inclusive RF and analog modulation performance up to 6 GHz. The analog signal generator delivers outstanding spectral purity, level accuracy, output power, and analog modulation performance up to 6 GHz for all general-purpose test needs. This makes the E4428C EASG a superb choice for general-purpose tests requiring CW, AM, ?M, and FM receiver test signals in the cellular, ISM, and UNII frequency bands.
Lowest Single-Sideband (SSB) phase noise performance in its price class: Single-Sideband (SSB) phase noise is an extremely important specification of a signal generator if it is to be used for measuring the adjacent channel selectivity of a receiver. Your test results might indicate a failure when your receiver is actually functioning properly if the phase noise of the signal generator is too high at frequency offsets equal to the channel spacing. The E4428C ESG analog signal generator will meet your demanding performance requirements by providing a SSB phase noise performance of -134 dBc/Hz at 20 kHz offset from a 1 GHz carrier. Other applications requiring high spectral purity considerations include LO substitution, low-jitter clock stimulus, blocking/interference signals, and in-channel measurements close to the carrier. It is also well-suited to address multi-level/multi-channel interfaces using any standard or custom data format, for example high-speed backplane connections using PAM-4 or PAM-8 format, as well as technologies in the mobile application space.
TRS-RenTelco offers the Keysight (formerly Agilent) E4428C-506 Analog Signal Generator for rent or lease with 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We ship the product with minimal lead time. Contact us and request a quote today.
- Configurations
- Resources
--, 506
See Configuration Details
-
506
Frequency range from 250KHz to 6GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Void- USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 506, R52A-002-L
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
USB Software I/O Libraries, v18.2.28229
Qty: 1 -
Void- USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 506, UNB
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
USB Software I/O Libraries, v18.2.28229
Qty: 1 -
Void- USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies E4428C Manual
Keysight Technologies E4428C Spec Sheet
