Keysight Technologies E4990A
20 Hz to 120 MHz.Impedance Analyzer has a frequency
Rent or Lease
Keysight Technologies - E4990A

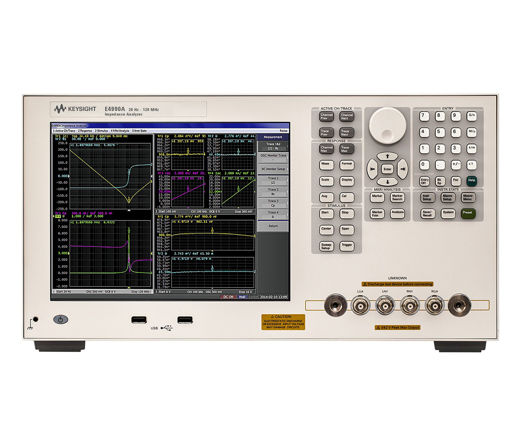

The E4990A Impedance Analyzer with a frequency range of 20 Hz to 120 MHz, industry best 0.045% (typ.) basic accuracy over wide impedance range, with 40 V built-in DC bias source, for component, semiconductor and materials measurement.
E4990A Product Highlights
• Five upgradable frequency options; 20 Hz to 10/20/30/50/120 MHz
• Basic impedance measurement accuracy of ±0.08% (±0.045%, typ)
• 25 mΩ to 40 MΩ wide impedance measurement range (10% measurement accuracy range)
• Measurement parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D, Q, Complex Z, Complex Y, Vac, Iac, Vdc, Idc
• Built-in DC bias range: 0 V to ±40 V, 0 A to ±100 mA
• Enhanced measurement speed option (option 001, for 10M/20M/30M/50M options only)
• 4-channel and 4-trace on 10.4-inch color LCD with touch screen
