Keysight Technologies E5071C-4K5
4-port, 300 kHz - 20 GHz ENA Network Analyzer (S-Parameter)
Rent or Lease

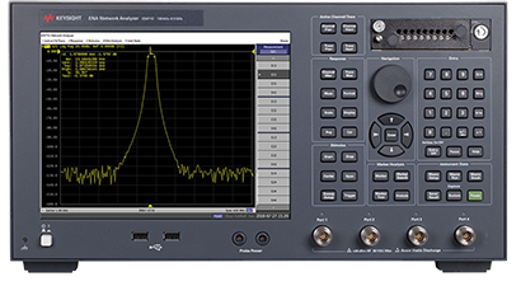

Keysight Technologies – E5071C-4K5
The Keysight Technologies E5071C-4K5 is a top of the line performance RF network analyzer. In fact, the ENA Network Analyzer with its best in class performance and blistering test speeds makes it the perfect companion for a variety of manufacturing and R&D functions that require the evaluation of RF components and circuits for a frequency of up to 20 GHz.
The Keysight Technologies E5071C-4K5 ENA Series offers the highest performance at the lowest frequency range. No other network analyzer can match its measurement speed of 39 ms with 1601 points full 2-port calibration, trace noise of < 0.004 dBrms at 70 kHz IFBW, or dynamic range of > 123 dB.
E5071C-4K5 Product Highlights
- Wide dynamic range: > 123 dB dynamic range at test port (typical)
- Fast measurement speed: 39 ms @ full 2-port cal, 1601 points
- Low trace noise: 0.004 dB rms @ 70 kHz IFBW
- Integrated 2- and 4-ports with balanced measurements
Keysight Technologies & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Network/Impedance Analyzers solution for your job.
Renting Network/Impedance Analyzers
With TRS-RenTelco renting Network/Impedance Analyzers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Keysight Technologies.
- Configurations
- Resources
- FAQsAI
--, 010, 1E5, 4K5, 810, 820
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
010
Time domain analysis
-
1E5
High Stability Timebase
-
810
Add keyboard
-
820
Add mouse
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E5, 4K5, 810, 820, TDR
See Configuration Details
-
810
Add keyboard
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
820
Add mouse
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 019, 1E5, 4K5
See Configuration Details
-
019
Standard Data Storage
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 4K5, TDR
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 1E5, 4K5, TDR
See Configuration Details
-
TDR
Enhanced Time Domain Analysis
-
008
Frequency-offset measurements
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 017, 1E5, 4K5, TDR
See Configuration Details
-
017
Removable Data Storage
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Keys Replacement for Removable Hard Drive
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 4K5, TDR
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Connecting Bar BNC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 017, 1E5, 4K5
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
017
Removable Data Storage
-
1E5
High Stability Timebase
-
010
Time domain analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Key for Hard Drive
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 019, 1E5, 4K5, TDR
See Configuration Details
-
019
Standard Data Storage
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 4K5
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Connecting Bar BNC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 017, 1E5, 4K5, TDR
See Configuration Details
-
017
Removable Data Storage
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Connecting Bar BNC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 017, 4K5, TDR
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
008
Frequency-offset measurements
-
017
Removable Data Storage
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Keys Replacement for Removable Hard Drive
Qty: 1 -
Mouse Optical
Qty: 1 -
Dongle Key Ring TRS Logo
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 019, 1E5, 4K5
See Configuration Details
-
008
Frequency-offset measurements
-
010
Time domain analysis
-
019
Standard Data Storage
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 4K5, TDR
See Configuration Details
-
TDR
Enhanced Time Domain Analysis
-
008
Frequency-offset measurements
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
010
time domain analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 017, 4K5
See Configuration Details
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
010
Time domain analysis
-
017
Removable Data Storage
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Key for Hard Drive
Qty: 1 -
Mouse Optical
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 4K5
See Configuration Details
-
010
Time domain analysis
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Connecting Bar BNC
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 017, 4K5
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 4K5, 810, 820
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 4K5, 810, 820, TDR
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 1E5, 4K5, TDR
See Configuration Details
-
008
Frequency-offset measurements
-
010
time domain analysis
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
TDR
Enhanced Time Domain Analysis
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 017, 1E5, 4K5
See Configuration Details
-
017
Removable Data Storage
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Keys Replacement for Removable Hard Drive
Qty: 1 -
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Dongle Key Ring TRS Logo
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 1E5, 4K5, 790, 810, 820
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 1E5, 4K5, 810, 820
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E5, 4K5, 810, 820
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E5, 4K5, 790, 810, 820, TDR
See Configuration Details
-
1E5
High Stability Timebase
-
4K5
4-port Test Set, 300 kHz to 20 GHz with Bias Tees
-
790
Measurement wizard assistant software
-
810
Add keyboard
-
820
Add mouse
-
TDR
Enhanced Time Domain Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E5, 4K5, 790, 810, 820, TDR
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 1E5, 4K5, 810, 820
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 4K5, TDR
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 1E5, 4K5
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the frequency range of the Keysight E5071C-4K5 network analyzer?
The E5071C-4K5 is a 4-port vector network analyzer covering 300 kHz to 20 GHz with built-in bias tees. This high-frequency capability combined with the 4-port architecture makes it ideal for characterizing complex microwave components, differential devices, and active circuits requiring DC bias up to 20 GHz.
What type of connectors does the E5071C-4K5 have?
The E5071C-4K5 features 3.5 mm male connectors on all four test ports. These precision 50 ohm connectors are designed for frequencies up to 26.5 GHz and provide excellent repeatability and low VSWR for high-frequency measurements across the analyzer's full 20 GHz operating range.
What is the system dynamic range of the E5071C-4K5?
At 3 kHz IF bandwidth, the E5071C-4K5 achieves 98 dB dynamic range from 100 MHz to 6 GHz, stepping down to 92 dB (6 to 8.5 GHz), 80 dB (8.5 to 10.5 GHz), 75 dB (10.5 to 15 GHz), and 71 dB (15 to 20 GHz). With 10 Hz IF bandwidth, dynamic range improves to 123 dB (100 MHz to 6 GHz) and remains above 96 dB even at 20 GHz.
What are the bias tee capabilities of the E5071C-4K5?
The E5071C-4K5 includes integrated bias tees on all four ports, allowing simultaneous DC biasing and RF measurement from 300 kHz to 20 GHz. This enables characterization of active devices such as amplifiers, mixers, and transistors in their operating conditions without external bias tees, simplifying test setups and improving measurement accuracy.
What is the output power range of the E5071C-4K5?
The E5071C-4K5 provides a nominal output power of -5 dBm with a sweep range of -25 to 10 dBm (1 MHz to 6 GHz), stepping down to -25 to 0 dBm at the high end (15 to 20 GHz). The source attenuator can be adjusted in 10 dB steps from 0 to 60 dB, allowing the power range to be shifted as needed for sensitive or high-power device testing.
What calibration kits work with the E5071C-4K5?
The E5071C-4K5 uses 3.5 mm calibration kits such as the 85052D economy kit (DC to 26.5 GHz) for mechanical calibration, or electronic calibration modules like the N4691B ECal (300 kHz to 26.5 GHz) or N4433A 4-port ECal (300 kHz to 20 GHz). The 4-port ECal modules significantly reduce calibration time and improve repeatability for multiport measurements.
What is the crosstalk specification of the E5071C-4K5?
Crosstalk isolation on the E5071C-4K5 varies by frequency band. It measures -118 dB from 45 MHz to 4 GHz, -123 dB from 4 to 6 GHz, -120 dB from 6 to 8.5 GHz, -112 dB from 8.5 to 15 GHz, and -106 dB from 15 to 20 GHz. Below 10 MHz, crosstalk increases to -68 to -100 dB depending on the specific frequency sub-band.
What is the test port noise floor of the E5071C-4K5?
The E5071C-4K5 specifies a test port noise floor of -123 dBm/Hz from 100 MHz to 6 GHz, stepping to -117 dBm/Hz (6 to 8.5 GHz), -105 dBm/Hz (8.5 to 10.5 GHz), -100 dBm/Hz (10.5 to 15 GHz), and -96 dBm/Hz (15 to 20 GHz). This low noise floor enables sensitive measurements across the full 20 GHz bandwidth.
