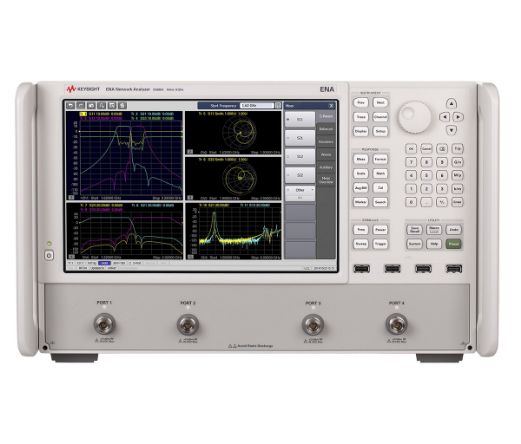

Keysight Technologies E5080A-495
4-port, 9 kHz - 9 GHz ENA Network Analyzer (S-Parameter)
The Keysight (formerly Agilent) E5080A-495 Network Analyzer comes with 4 ports and has a frequency range up to 9 GHz. This device offers measurement speed and efficiency, while also allowing for easy handling.
Key Features and Specifications of the Keysight E5080A-495:
- Maximum Frequency: 9 GHz
- Dynamic Range: 135 dB
- Output Power: 15 dBm
- Trace Noise: 0.0015 dBrms
- Number of Built-In Ports: 2 or 4 ports
- Harmonics: -20 dBc
- Noise Floor: -136 dBm
- Best Speed at 201 Point, 1 Sweep: 2 ms
Applications
- S-Parameters
- Gain Compression
- Multiport
- Balance Measurements
- Return Loss
- Time Domain
- Insertion Loss/Gain
Components
- Cables
- Antennas
- Mixers/Frequency Converters
- Filters/Duplexers
- Amplifiers
- Resonators
- Connectors
- Isolators
- Switches
- Benchtop: Yes
TRS-RenTelco offers the Keysight (formerly Agilent) E5080-495 Network Analyzer for rent or for lease with 24/7 customer support. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We shall ship the product with minimal lead time. Contact us to request a quote today.
- Configurations
- Resources
- FAQsAI
--, 009, 010, 017, 495, UNQ
See Configuration Details
-
009
Frequency Offset Mode
-
010
Time Domain Analysis
-
017
Removable Solid State Drive
-
495
4-port Test Set, 9 Khz To 9 Ghz With Bias Tees
-
UNQ
Standard Stability Timebase
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Key for Hard Drive
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 019, 1E5, 495, 790
See Configuration Details
-
019
Standard Data Storage
-
1E5
High Stability Timebase
-
495
4-port test set, 9 kHz to 9 GHz with bias tees
-
790
Measurement wizard assistant software
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 017, 1E5, 495
See Configuration Details
-
017
Removable Data Storage
-
1E5
High Stability Timebase
-
495
4-port test set, 9 kHz to 9 GHz with bias tees
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Key for Hard Drive
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies E5080A-495 Spec Sheet
Keysight Technologies E5080A-495 Configuration Guide
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight E5080A-495?
The Keysight E5080A-495 is a 4-port, 9 kHz to 9 GHz ENA network analyzer designed for high-performance network analysis.
What unique technology does the E5080A-495 feature?
It features an integrated S-parameter test set and supports time domain analysis and frequency offset mode.
What are the size and weight specifications of the E5080A-495?
Specific dimensions are not provided; refer to the Keysight datasheet for detailed specifications.
What is the dynamic range of the E5080A-495?
The dynamic range is 135 dB.
How is the E5080A-495 powered?
It operates on a standard AC power supply, suitable for laboratory applications.
What accessories are included with the E5080A-495?
Accessories include a power cord, connecting bar BNC, front cover, and USB drive with software and manuals.
What applications is the E5080A-495 suitable for?
Ideal for S-parameters, gain compression, multiport and balance measurements, return loss, time domain, and insertion loss/gain.
What are the benefits of using the E5080A-495?
Benefits include high measurement accuracy, wide frequency range, and automation capabilities.
What additional features does the E5080A-495 offer?
The analyzer includes time domain analysis, frequency-offset measurements, and a high stability timebase.
How can one rent or lease the Keysight E5080A-495 from TRS-RenTelco?
The E5080A-495 can be rented or leased by requesting a quote through the TRS-RenTelco website.
