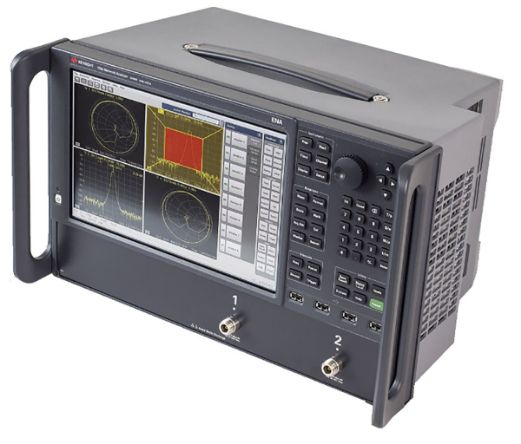

Keysight Technologies E5080B-2K0
2-port, 9 kHz - 20 GHz ENA Network Analyzer (S-Parameter)
Rent or Lease
With the Keysight (formerly Agilent) E5080B-2K0 ENA network analyzer, technicians can choose from a broad range of measurement applications for meeting RF tests and microwave measurement requirements. The E5080B-2K0 combines built-in pulse generators and modulators, spectrum analysis, and time-domain analysis to fully characterize modern devices quickly and without the need for additional test hardware.
The E5080B-2K0 is flexible and has various applications in production and general-component testing and design verification. Featuring software applications that include mixer measurements, noise figure, and spectrum analysis, the Keysight E5080B-2K0 ENA network analyzer delivers deep insights into testing requirements.
Keysight E5080B-2K0 Features and Specifications:
- Two-port test set
- Frequency range: 9kHz to 20GHz
- Frequency resolution: 1Hz
- Frequency accuracy: 7 ppm
- RF connector type: 3.5mm male
- Impedance: 50 ohm (nominal)
- Nominal power (preset power level): 0 dB
- Dynamic range: 135 dB to 152 dB
- Trace noise: 0.0005 dBrms
- Measurement speed: 2 ms (201 points)
The Keysight (formerly Agilent) E5080B-2K0, two-port, 20GHz ENA network analyzer (S-parameter) is available for lease or rent with TRS-RenTelco with 365-day support. Contact us at 800-874-7123 to learn more.
