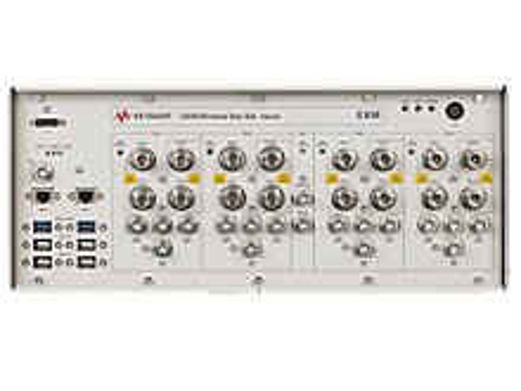

Keysight Technologies E6640A

EXM Wireless Test Set

Key Features & Specifications

Optimize multi-device testing
* Up to four TRX channels per EXM, with up to 6 GHz bandwidth on each TRX
* Two full-duplex and two half-duplex or four full-duplex ports per TRX
* Customizable to connect up to 32 DUTs with multi-port adapter (MPA) technology
* Independent source and analyzer on each TRX allows efficient use of test resources

Test multi-format devices
* Cellular: LTE/LTE-Advanced FDD, LTE/LTE-Advanced TDD, HSPA , W-CDMA, 1xEV-DO, cdma2000, GSM/EDGE-Evo, TD-SCDMA, DECT and PHS
* Connectivity: 802.11a/b/g/n/j/p/ac/af/ah, WLAN MIMO 2x2/3x3/4x4, Bluetooth, WiMAX, multi-satellite GNSS, FM, Zigbee and digital video

Maximize throughput and yield
* Accelerate test execution by capturing multiple format cellular and WLAN measurements via advanced sequencing and single-acquisition multiple measurements (SAMM)
* Receiver EVM for 160 MHz 802.11ac: less than or equal to -43 dB (typical)
* Absolute level accuracy, 380 MHz to 3.8 GHz: less than or equal to plus or minus 0.2 dB (typical)
* Output power range, 380 MHz to 6 GHz: 5 to -130 dBm (typical)

Get up and running in hours, not days, with validated turnkey chipset solutions
* Reduce test-development time and cost with chipset-specific calibration and verification routines
* Leverage local application engineers' expertise to optimize the EXM for your needs

Read More
  • Configurations
  • Resources
--, 4FD, KYB, M44, MSE, TRX1-001, TRX1-506, TRX1-B1X, TRX2-002, TRX2-506, TRX2-B1X, TRX3-003, TRX3-506, TRX3-B1X, TRX4-004, V9065B-SFP, V9077B-KFP, Y9071B-2FP, Y9072B-2FP, Y9073B-1FP, Y9073B-2FP, Y9073B-3FP, Y9076B-1FP, Y9077B-2FP, Y9077B-3FP, Y9077B-4FP, Y9077B-WFP, Y9079B-1FP, Y9079B-2FP, Y9080B-1FP, Y9080B-2FP, Y9081B-2FP, Y9082B-1FP, Y9082B-2FP
See Configuration Details
  • TRX3-B1X

    160 Mhz Bandwidth

  • TRX4-004

    Trx4 Transceiver Hardware

  • Y9071B-2FP

    Gsm/Edge Measurement And Waveform Application, Fixed Perpetual License

  • Y9072B-2FP

    Cdma2000 Measurement And Waveform Application, Fixed Perpetual License

  • Y9073B-1FP

    W-Cdma Measurement And Waveform Application, Fixed Perpetual License

  • 4FD

    Selects Trx Configuration For 4fd

  • KYB

    Keyboard, Usb

  • M44

    Up To 4x4 True Mimo, Fixed Perpetual License

  • MSE

    Mouse, Usb

  • TRX1-001

    Trx1 Transceiver Hardware

  • TRX1-506

    Frequency Range, 380 Mhz To 6 Ghz

  • TRX1-B1X

    160 Mhz Bandwidth

  • TRX2-002

    Trx2 Transceiver Hardware

  • TRX2-506

    Frequency Range, 380 Mhz To 6 Ghz

  • TRX2-B1X

    160 Mhz Bandwidth

  • TRX3-003

    Trx3 Transceiver Hardware

  • TRX3-506

    Frequency Range, 380 Mhz To 6 Ghz

  • Y9077B-4FP

    Wlan 802.11 Ac Measurement And Waveform Application, Fixed Perpetual License

  • Y9077B-WFP

    Wlan 802.11 Ac Wave 2 Measurement And Waveform Application, Fixed Perpetual License

  • V9077B-KFP

    Wlan Combined Stream Mimo Measurements, Fixed Perpetual License

  • Y9081B-2FP

    Bluetooth Measurement And Waveform Application, Fixed Perpetual License

  • V9065B-SFP

    Switched Mimo Capability, Fixed Perpetual License

  • Y9073B-2FP

    Hsdpa/Hsupa Measurement And Waveform Application, Fixed Perpetual License

  • Y9073B-3FP

    Hspa+ Measurement And Waveform Application, Fixed Perpetual License

  • Y9076B-1FP

    1xev-Do Measurement And Waveform Application, Fixed Perpetual License

  • Y9079B-1FP

    Td-Scdma Measurement And Waveform Application, Fixed Perpetual License

  • Y9079B-2FP

    Td-Hspa Measurement And Waveform Application, Fixed Perpetual License, Requires 1fp Or 1tp

  • Y9080B-1FP

    Lte Fdd Measurement And Waveform Application, Fixed Perpetual License

  • Y9080B-2FP

    Lte-Advanced Fdd Measurement And Waveform Application, Fixed Perpetual License

  • Y9082B-1FP

    Lte Tdd Measurement And Waveform Application, Fixed Perpetual License

  • Y9082B-2FP

    Lte-Advanced Tdd Measurement And Waveform Application, Fixed Perpetual License

  • Y9077B-2FP

    Wlan 802.11 A/B/G/P Measurement And Waveform Application, Fixed Perpetual License

  • Y9077B-3FP

    Wlan 802.11 N Measurement And Waveform Application, Fixed Perpetual License
