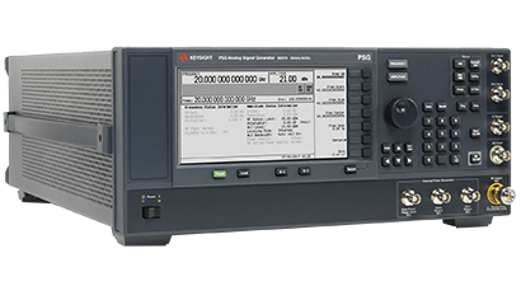

Keysight Technologies E8257D-550
100 kHz - 50 GHz PSG Analog Signal Generator, 2.4 mm (m)
Rent or Lease • Buy Used From $80,500
Keysight Technologies - E8257D-550
The Keysight Technologies E8257D-550 PSG analog signal generator delivers industry-leading output power, level accuracy, and phase noise performance to 20 GHz. The E8257D-550 PSG's high output power and superior level accuracy often eliminates the need of an external amplifier for testing high power devices.
The Keysight Technologies E8257D-550 PSG also minimizes test uncertainty by helping to identify errors early in the design process. This PSG Analog Signal Generator also has a world-class phase noise performance which is ideal for local oscillator, low jitter clock substitution and adjacent channel selectivity tests. When testing advanced RF and microwave radar, communications, and control systems, the PSG delivers the performance you demand.
E8257D-550 Product Highlights
- Take on your toughest test requirements with metrology-grade frequency and level accuracy, excellent distortion, and spurious characteristics
- Measure across a wide frequency range: 50 GHz
- Test high-power devices and overcome test system losses with options capable of generating up to 1 W (+30 dBm) of output power
- Get extremely low phase noise: –91 dBc/Hz at 100 Hz offset and –126 dBc/Hz at 10 kHz offset (10 GHz), to address Doppler radar, ADC and receiver-blocking tests
- Characterize devices and circuits by adding AM, FM, PM & pulse modulation to your signal
Keysight Technologies & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Generators solution for your job.
Renting Generators
With TRS-RenTelco renting Generators equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Keysight Technologies.
- Configurations
- Resources
- FAQsAI
--, 007, 1E1, 1EA, 1EH, 550, UNW
See Configuration Details
-
1EH
Improved harmonics below 2 GHz
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EA
High output power
-
UNW
Narrow pulse modulation
-
550
Frequency range from 250 kHz to 50 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EH, 1EU, 550, UNW, UNY
See Configuration Details
-
1E1
Step Attenuator
-
1EH
Improved harmonics below 2 GHz
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EH, 1EU, 550, UNT, UNW, UNY
See Configuration Details
-
1EH
Improved harmonics below 2 GHz
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
-
1E1
Step Attenuator
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 008, 1E1, 1EH, 1EU, 550, UNT, UNW, UNY
See Configuration Details
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
-
007
Analog ramp sweep
-
1EH
Improved harmonics below 2 GHz
-
008
Removable flash memory
-
UNT
AM, FM, phase modulation, and LF output
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EH, 1EU, 550, UNT, UNW, UNY
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EH
Improved harmonics below 2 GHz
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNT, UNW, UNY
See Configuration Details
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNT, UNW
See Configuration Details
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 1EH, 550, UNT, UNW, UNX
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EA
High output power
-
1EH
Improved harmonics below 2 GHz
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNX
Ultra-low phase noise performance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EA, 550, UNT, UNU, UNX
See Configuration Details
-
1E1
Step Attenuator
-
1EA
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNU
Pulse Modulation
-
UNX
Ultra-low phase noise performance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 550, UNT, UNW, UNX
See Configuration Details
-
1E1
Step Attenuator
-
UNX
Ultra-low phase noise performance
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 550
See Configuration Details
-
1E1
Step Attenuator
-
550
Frequency range from 250 kHz to 50 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNY
See Configuration Details
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNT, UNW, UNY
See Configuration Details
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 550, UNT, UNU, UNX
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EA
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNU
Pulse Modulation
-
UNX
Ultra-low phase noise performance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EH, 1EU, 550, UNU, UNY
See Configuration Details
-
1E1
Step Attenuator
-
1EH
Improved harmonics below 2 GHz
-
550
Frequency range from 250 kHz to 50 GHz
-
UNU
Pulse Modulation
-
UNY
Enhanced ultra low phase noise
-
1EU
High output power
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550, UNY
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EH, 1EU, 550, H30, UNT, UNW
See Configuration Details
-
1EH
Improved harmonics below 2 GHz
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
H30
RF Upconverter
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 008, 1E1, 1EH, 1EU, 550, UNW, UNY
See Configuration Details
-
1E1
Step Attenuator
-
007
Analog ramp sweep
-
008
Removable flash memory
-
1EH
Improved harmonics below 2 GHz
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNW
Narrow pulse modulation
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550
See Configuration Details
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNT, UNU, UNY
See Configuration Details
-
550
Frequency range from 250 kHz to 50 GHz
-
1E1
Step Attenuator
-
1EU
High output power
-
UNU
Pulse Modulation
-
UNY
Enhanced ultra low phase noise
-
UNT
AM, FM, phase modulation, and LF output
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 550, UNY
See Configuration Details
-
1E1
Step attenuator
-
550
Frequency range from 250 kHz to 50 GHz
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 1EH, 550, UNT, UNW, UNX
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EA
High output power
-
1EH
Improved harmonics below 2 GHz
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNX
Ultra-low phase noise performance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 1EH, 550, UNT, UNW, UNX
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EA
High output power
-
1EH
Improved harmonics below 2 GHz
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNW
Narrow pulse modulation
-
UNX
Ultra-low phase noise performance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EA, 550, UNT, UNU
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 550
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 1EH, 550, UNW, UNX
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EA
High output power
-
1EH
Improved harmonics below 2 GHz
-
550
Frequency range from 250 kHz to 50 GHz
-
UNW
Narrow pulse modulation
-
UNX
Ultra-low phase noise performance
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EA, 1EH, 550, UNW, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EH, 1EU, 550, UNW, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EH, 1EU, 550, UNT, UNW, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNT, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550, UNT, UNU, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 550, UNY
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1EH, 550, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550, R50C011MU3, UNT, UNY
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
R50C011MU3
Keysight Calibration + Uncertainties - 3 years
-
UNT
AM, FM, phase modulation, and LF output
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550, UNT, UNY
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EA, 550, UNT, UNW, UNX
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550, UNY
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 007, 1E1, 1EU, 550, UNT
See Configuration Details
-
007
Analog ramp sweep
-
1E1
Step Attenuator
-
1EU
High output power
-
550
Frequency range from 250 kHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF output
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EU, 550, UNT
See Configuration Details
-
1E1
Step attenuator
-
1EU
High output power
-
550
Frequency range from 259 KHz to 50 GHz
-
UNT
AM, FM, phase modulation, and LF outputs
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 550, UNY
See Configuration Details
-
1E1
Step attenuator
-
550
Frequency range from 250 kHz to 50 GHz
-
UNY
Enhanced ultra low phase noise
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter 2.4mm(f) - 2.4mm(f)
Qty: 1 -
Adapter 2.92 mm(f) - 2.4 mm(f)
Qty: 1 -
Cord Power
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
50 ohm SMA Terminator, male
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What frequency range does the Keysight E8257D-550 cover?
The E8257D-550 PSG analog signal generator covers a specified range of 250 kHz to 50 GHz with tunable operation from 100 kHz to 50 GHz. This extended millimeter-wave performance supports applications in 5G FR2 component validation, millimeter-wave radar development, and satellite communication subsystem testing.
What maximum output power does the E8257D-550 deliver at millimeter-wave frequencies?
From 3.2 to 15 GHz, the E8257D-550 provides +5 dBm specified with +18 to +21 dBm typical. From 15 to 30 GHz, specified power is +5 dBm with +14 to +16 dBm typical. At 30 to 50 GHz, output remains at +5 dBm specified with +11 to +14 dBm typical, maintaining usable power well into the millimeter-wave bands.
How does the E8257D-550 phase noise perform with the Option UNX low noise mode?
At 10 GHz carrier with Option UNX, the E8257D-550 achieves -49 dBc/Hz typical at 10 Hz offset, -91 dBc/Hz at 100 Hz, -107 dBc/Hz at 1 kHz, and -126 dBc/Hz at 100 kHz. Option UNY provides an additional mode with further close-in improvements, making the PSG one of the lowest phase noise sources available at these frequencies.
Can the E8257D-550 generate low-level signals for sensitive receiver testing?
Yes, with Option 1E1 step attenuator, the E8257D-550 can generate signals as low as -110 dBm across its full frequency range. The step attenuator provides coarse attenuation in 10 dB steps, with fine power control via the ALC loop, enabling precise low-level signal generation for receiver sensitivity and selectivity measurements.
What is the broadband noise floor of the E8257D-550?
The E8257D-550 maintains broadband noise below -148 dBc/Hz typical from 10 MHz to 20 GHz at offsets greater than 10 MHz. From 20 to 40 GHz, broadband noise is less than -141 dBc/Hz typical. Above 40 GHz, it stays below -135 dBc/Hz typical, ensuring a clean noise floor for demanding receiver and system-level tests.
Does the E8257D-550 support pulse modulation across its full frequency range?
Yes, the E8257D-550 supports pulse modulation from 250 kHz to 50 GHz. The internal pulse modulator provides on/off ratios greater than 80 dB typical above 3.2 GHz. An optional internal pulse generator delivers pulse widths as narrow as 20 ns with rise and fall times of approximately 10 ns, suitable for radar and EW testing.
How does the E8257D-550 SWR performance change across frequency bands?
The E8257D-550 maintains SWR below 1.4:1 typical from 250 kHz to 2 GHz when internally leveled. From 2 to 20 GHz, SWR is less than 1.6:1 typical. At 20 to 40 GHz, SWR increases to 1.8:1 typical, and from 40 to 50 GHz it is 2.0:1 typical. These values apply with the step attenuator in auto mode.
What non-harmonic spurious suppression does the E8257D-550 achieve?
The E8257D-550 maintains non-harmonic spurious levels of -80 dBc specified (-88 dBc typical) from 250 MHz to 1 GHz at offsets greater than 3 kHz. From 3.2 to 10 GHz, spurious is -62 dBc specified (-70 dBc typical). Above 40 GHz, non-harmonic spurious remains below -44 dBc specified (-52 dBc typical), suitable for spectral purity sensitive measurements.
