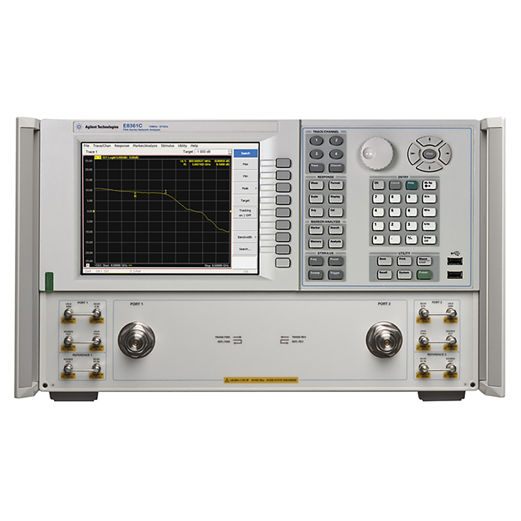

Keysight Technologies E8363C
40 GHz PNA Network Analyzer, 2.4 mm (m)
The Keysight (formerly Agilent) E8363C Network Analyzer is a versatile device that can be applied to various passive and active devices including the likes of amplifiers, filters and more. With a flexible user interface, up to ten markers per trace, 32 measurement channels with unlimited traces, cutting edge calibration potential, a configurable test set, Linear, log, power, CW, and segment sweep and an integrated high resolution touch screen display, the E8363C is a comprehensive and feature rich device for all your network based testing needs.
Key Specifications:
- 110 dB of dynamic range <0.006 dB trace noise
- <26 usec/point measurement speed, 32 channels, 16,001 points
- TRL/LRM calibration, on-wafer, in-fixture, waveguide, and antenna measurements
- Mixer conversion loss, return loss, isolation, and absolute group delay
- Amplifier gain compression, harmonic, IMD, and pulsed-RF
The E8363C is available at TRS-RenTelco in both rent and lease options, with 24-7 customer support from our team of experts. Request a quote to acquire it today.
- Configurations
- Resources
--, 010, 014, 080, 081, 083, UNL
See Configuration Details
-
081
Reference-receiver switch
-
010
Add time domain capability
-
014
Configurable test set deck
-
080
Frequency-offset measurements
-
083
Frequency converter measurement application
-
UNL
Extended power range with bias tee
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable RF Jumper
Qty: 6 -
Jumper Cable Guard
Qty: 2 -
Handle Kit 6-Hole
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
