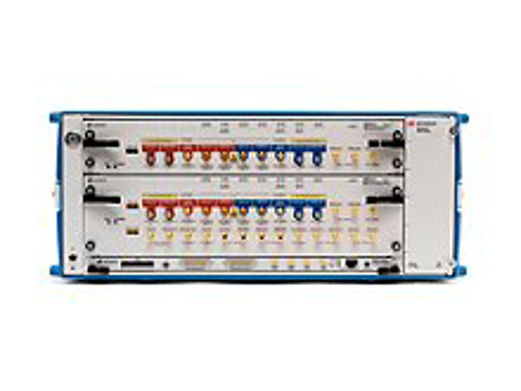

Keysight Technologies M8020A-16G-2CHN-GEN

High-Performance generator

Keysight Technologies - M8020A-16G-2CHN-GEN

The high-performance Keysight J-BERT M8020A enables fast, accurate receiver characterization of single- and multi-lane devices running up to 16 or 32 Gb/s.

With today’s highest level of integration, the M8020A streamlines your test setup. In addition, automated in situ calibration of signal conditions ensures accurate and repeatable measurements. Through interactive link training, it can behave like the link partner of your device under test. The J-BERT M8020A will accelerate insight into your design.

M8020A-16G-2CHN-GEN Product Highlights

            • data rates up to 8.5/ 16 Gb/s for pattern generator and error detector

            • expandable to 32 Gb/s with M8062A, 32 Gb/s BERT front-end

            • integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, sinusoidal interference (common-mode and differential-mode), SSC (triangular and arbitrary, residual)

            • 8-tap de-emphasis (positive and negative) up to 20 dB

            • integrated and adjustable ISI for loss emulation

            • interactive link training for SAS-3, USB 3.0/3.1 and PCI Express supporting 8 GT/s and 16 GT/s

            • interactive TxEQ training for IEEE 10GBASE-KR, 25GBASE-KR, and 100GBASE-KR4

            • built-in clock data recovery and equalization

            • system integration with M8070A software for M8000 BER series

            • seamless operation with BERT/scope and arbitrary waveform generators

Keysight Technologies & TRS-RenTelco

TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry.  Our close relationship with Keysight Technologies allows us to ensure we have the right Data Generators/Analyzers solution for your job.

Renting Data Generators/Analyzers

With TRS-RenTelco renting Data Generators/Analyzers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.

Links to Additional Information

Keysight Technologies Products from TRS-RenTelco

Other Data Generators/Analyzers from TRS-RenTelco

Keysight Technologies Home Page


Read More
  • Configurations
  • Resources
--, BU2, M8020A-0G4, M8041A-0G2, M8041A-0G3, M8041A-0G7, M8041A-G16, M8041A-UED
See Configuration Details
  • BU2

    Bundle consisting of one M9505A 5-slot AXIe Chassis with USB Option

  • M8020A-0G4

    Multi-tap De-emphasis, Module-wide License

  • M8041A-0G2

    Second Channel for Pattern Generator, License

  • M8041A-0G3

    Advanced Jitter Sources for Receiver Characterization, Module-wide License

  • M8041A-0G7

    Upgrade of M8041A to Advanced Interference Sources for Receiver Characterization, Module-wide License

  • M8041A-G16

    Pattern Generator one Channel, Data Rate up to 16 Gb/s

  • M8041A-UED

    Upgrade to BERT from M8041A-G08 and M8041A-G16, Module-wide License

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Terminator SMA Input 50 Ohm

    Qty: 8
  • Cable USB-A - USB-MiniB

    Qty: 1
  • Filler Blade

    Qty: 4
  • Chassis AXIe 5-Slot with Integrated System Module

    Qty: 1
  • Power Cord Assembly Heavy Duty with Square Plug

    Qty: 1
  • Heel Ground Strap

    Qty: 1
  • System Module

    Qty: 1
  • Rosenberger Cable Discharger and Cable

    Qty: 1
  • Cable Pair Assembly Matched SF102EA/2x11SK258/850mm

    Qty: 1
  • High-Performance BERT Generator/Analyzer/Clock Module

    Qty: 1
  • M8020 Laptop with AC Adapter and Battery

    Qty: 1
  • Case Transit

    Qty: 1
  • ESD Mat with Ground Cord Anti-Static

    Qty: 1
  • USB Software I/O Libraries, v18.3.29517

    Qty: 1
