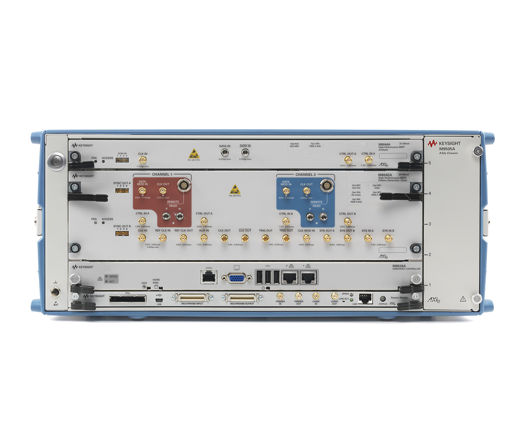

Keysight Technologies - M8040A-64G-GEN
The Keysight Technologies M8040A-64G-GEN is a highly integrated BERT (Bit Error Rate Tester) for physical layer characterization and compliance testing. With support for PAM-4 and NRZ signals and data rates up to 64 GBaud (corresponds to 128 Gbit/s) it covers all flavors of 200 and 400 GbE standards.
The M8040A BERT offers true error analysis and provides repeatable and accurate results optimizing the performance margins of your 400GbE devices. The M8040A can be used for receiver (input) testing for many popular interconnect standards that use PAM-4 and NRZ data formats, such as: 400 GbE, 50/100/200 GbE, OIF CEI-56G and CEI-112G, 64G/112G Fibre Channel, Infiniband-HDR and proprietary interfaces for chip-to-chip, chip-to-module, backplanes, repeaters and active optical cables. Freely defined test points, e.g. jitter frequencies, without the need for pre-calculating pattern. Integrated sources for periodic jitter, random jitter and bounded uncorrelated jitter stress generation.
M8040A-64G-GEN Product Highlights
- data rates from 2 to 64 Gbaud PAM4 signal
- built-in de-emphasis, analyzer equalization, and clock recovery
- integrated and calibrated jitter injection: RJ, PJ1, PJ2, SJ, BUJ, and clk / 2 jitter
- two pattern generator channels per module to emulate aggressor lane
- interactive link training and SKP OS filtering for 8 / 16 / 32 GT/s PCI Express®
- algorithmic PRBS, QPRBS, and memory-based patterns, pattern sequencer
- for PAM4, gray coding, FEC encoding, and precoder and error distribution analysis
- all options and modules are upgradeable
- offers true error analysis and provides repeatable and accurate results, optimizing the performance margins of your devicesseamless operation with BERT/scope and arbitrary waveform generators
Keysight Technologies & TRS-RenTelco
TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry. Our close relationship with Keysight Technologies allows us to ensure we have the right Data Generators/Analyzers solution for your job.
Renting Data Generators/Analyzers
With TRS-RenTelco renting Data Generators/Analyzers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.
Additional Information
Manufacturer Home Page | Keysight Technologies.
- Configurations
- Resources
- FAQsAI
--, M8040A-BU1, M8045A-0G3, M8045A-0G4, M8045A-0P3, M8045A-0P6, M8045A-801 - 1ST, M8045A-801 - 2ND, M8045A-G64, M8057B-FG
See Configuration Details
-
M8040A-BU1
Bundle consisting of one M9505A 5-slot AXIe Chassis and one M9537A AXIe Embedded PC Controller with 16GB RAM Option
-
M8045A-0G3
Advanced Jitter Sources for Receiver Characterization, Module-wide License
-
M8045A-0G4
De-emphasis, Module-wide License
-
M8045A-0P3
PAM-4 Encoding up to 32 GBaud, Module-wide License
-
M8045A-0P6
PAM-4 Extension up to 64 GBaud, Module-wide License
-
M8045A-801 - 1ST
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-801 - 2ND
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-G64
Pattern Generator one Channel NRZ, Data Rate up to 64 GBaud (requires Remote Head, e.g. M8057A)
-
M8057B-FG
Remote Head for M8045A Pattern Generator, 1 Channel
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
ESD Mat with Ground Cord Anti-Static
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Chassis AXIe 5-Slot with Integrated System Module
Qty: 1 -
Power Cord Assembly Heavy Duty with Square Plug
Qty: 1 -
Heel Ground Strap
Qty: 1 -
Rosenberger Cable Discharger and Cable
Qty: 1 -
Termination Plug Coaxial
Qty: 4 -
Case Transit
Qty: 1 -
Remote Head for M8045A
Qty: 1 -
Cable External DUT
Qty: 2 -
Pattern Generator - Clock Module BERT 32 GBd
Qty: 1 -
Controller Embedded AXIe High Performance
Qty: 1 -
Filler Panel (Dark Color)
Qty: 1 -
Load Fixed 2.4 mm(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, M8040A-BU1, M8045A-0G3, M8045A-0G4, M8045A-0P3, M8045A-801 - 1ST, M8045A-801 - 2ND, M8045A-G64, M8057A-FG
See Configuration Details
-
M8040A-BU1
Bundle Consisting Of One M9505a 5-Slot Axie Chassis And One M9537a Axie Embedded Pc Controller With 16gb Ram Option
-
M8045A-0G3
Advanced Jitter Sources For Receiver Characterization, Module-Wide License
-
M8045A-0G4
De-Emphasis, Module-Wide License
-
M8045A-801 - 1ST
Short Cable 1.85 Mm (M) To 1.85 Mm (M), 0.15 M, Absolute Matching 699 Ps +- 1 Ps
-
M8045A-801 - 2ND
Short Cable 1.85 Mm (M) To 1.85 Mm (M), 0.15 M, Absolute Matching 699 Ps +- 1 Ps
-
M8045A-G64
Pattern Generator One Channel Nrz, Data Rate Up To 64 Gbaud (Requires Remote Head, E.G. M8057a)
-
M8057A-FG
Remote Head For M8045a Pattern Generator, 1 Channel
-
M8045A-0P3
Pam-4 Encoding Up To 32 Gbaud, Module-Wide License
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
ESD Mat with Ground Cord Anti-Static
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Chassis AXIe 5-Slot with Integrated System Module
Qty: 1 -
Power Cord Assembly Heavy Duty with Square Plug
Qty: 1 -
Heel Ground Strap
Qty: 1 -
Rosenberger Cable Discharger and Cable
Qty: 1 -
Termination Plug Coaxial
Qty: 4 -
Case Transit
Qty: 1 -
Remote Head for M8045A
Qty: 1 -
Cable External DUT
Qty: 2 -
Pattern Generator - Clock Module BERT 32 GBd
Qty: 1 -
Controller Embedded AXIe High Performance
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, M8040A-BU1, M8045A-0G3, M8045A-0G4, M8045A-0P3, M8045A-0P6, M8045A-801 - 1ST, M8045A-801 - 2ND, M8045A-G64, M8057A-FG
See Configuration Details
-
M8040A-BU1
Bundle consisting of one M9505A 5-slot AXIe Chassis and one M9537A AXIe Embedded PC Controller with 16GB RAM Option
-
M8045A-0G3
Advanced Jitter Sources for Receiver Characterization, Module-wide License
-
M8045A-0G4
De-emphasis, Module-wide License
-
M8045A-0P3
PAM-4 Encoding up to 32 GBaud, Module-wide License
-
M8045A-0P6
PAM-4 Extension up to 64 GBaud, Module-wide License
-
M8045A-801 - 1ST
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-801 - 2ND
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-G64
Pattern Generator one Channel NRZ, Data Rate up to 64 GBaud (requires Remote Head, e.g. M8057A)
-
M8057A-FG
Remote Head for M8045A Pattern Generator, 1 Channel
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Termination Plug Coaxial
Qty: 4 -
Power Cord Assembly Heavy Duty with Square Plug
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Heel Ground Strap
Qty: 1 -
ESD Mat with Ground Cord Anti-Static
Qty: 1 -
Case Transit
Qty: 1 -
Rosenberger Cable Discharger and Cable
Qty: 1 -
Cable External DUT
Qty: 2 -
Pattern Generator - Clock Module BERT 32 GBd
Qty: 1 -
Remote Head for M8045A
Qty: 1 -
Chassis AXIe 5-Slot with Integrated System Module
Qty: 1 -
Controller Embedded AXIe High Performance
Qty: 1 -
Filler Panel (Dark Color)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, M8040A-BU1, M8045A-0G3, M8045A-0G4, M8045A-0G9, M8045A-0P3, M8045A-0P6, M8045A-801 - 1ST, M8045A-801 - 2ND, M8045A-G64, M8057b-FG
See Configuration Details
-
M8040A-BU1
Bundle consisting of one M9505A 5-slot AXIe Chassis and one M9537A AXIe Embedded PC Controller with 16GB RAM Option
-
M8045A-0G3
Advanced Jitter Sources for Receiver Characterization, Module-wide License
-
M8045A-0G4
De-emphasis, Module-wide License
-
M8045A-0P3
PAM-4 Encoding up to 32 GBaud, Module-wide License
-
M8045A-0P6
PAM-4 Extension up to 64 GBaud, Module-wide License
-
M8045A-801 - 1ST
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-801 - 2ND
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-G64
Pattern Generator one Channel NRZ, Data Rate up to 64 GBaud (requires Remote Head, e.g. M8057A)
-
M8057b-FG
Remote Head for M8045A Pattern Generator, 1 Channel
-
M8045A-0G9
Forward Error Correction (FEC) Encoding, Module-wide License
*This item has already been added to your cart. Check your cart for quantity and availability.
--, M8040A-BU3, M8045A-0G3, M8045A-0G4, M8045A-0G6, M8045A-0P3, M8045A-0P6, M8045A-801 - 1ST, M8045A-801 - 2ND, M8045A-G64, M8057B-FG
See Configuration Details
-
M8040A-BU3
Bundle consisting of one M9505A 5-slot AXIe Chassis and one M9537A AXIe Embedded PC Controller with 16GB RAM and Windows 10 Option
-
M8045A-0G3
Advanced Jitter Sources for Receiver Characterization, Module-wide License
-
M8045A-0G4
De-emphasis, Module-wide License
-
M8045A-0G6
Reference Clock Multipler, Module-wide License
-
M8045A-0P3
PAM-4 Encoding up to 32 GBaud, Module-wide License
-
M8045A-0P6
PAM-4 Extension up to 64 GBaud, Module-wide License
-
M8045A-801 - 1ST
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-801 - 2ND
Short Cable 1.85 mm (m) to 1.85 mm (m), 0.15 m, absolute matching 699 ps +- 1 ps
-
M8045A-G64
Pattern Generator one Channel NRZ, Data Rate up to 64 GBaud (requires Remote Head, e.g. M8057A)
-
M8057B-FG
Remote Head for M8045A Pattern Generator, 1 Channel
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Termination Plug Coaxial
Qty: 4 -
Power Cord Assembly Heavy Duty with Square Plug
Qty: 1 -
Cable USB-A - USB-MiniB
Qty: 1 -
Heel Ground Strap
Qty: 1 -
ESD Mat with Ground Cord Anti-Static
Qty: 1 -
Case Transit
Qty: 1 -
Rosenberger Cable Discharger and Cable
Qty: 1 -
Cable External DUT
Qty: 2 -
Pattern Generator - Clock Module BERT 32 GBd
Qty: 1 -
Remote Head for M8045A
Qty: 1 -
Chassis AXIe 5-Slot with Integrated System Module
Qty: 1 -
Controller Embedded AXIe High Performance
Qty: 1 -
Filler Panel (Dark Color)
Qty: 1 -
Load Fixed 2.4 mm(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What are the new features in version 4.0 of the M8040A BERT?
Version 4.0 of the M8040A introduces several key enhancements including more output voltage with the new M8057B remote head, and a reference clock multiplier capability with Option 0G6 providing bandwidth of 2/5 MHz. The M8057B remote head offers improved amplitude capabilities of 160 mV to 1.8 Vpp differential for symbol rates below 58 Gbaud, compared to the M8057A's specifications.
What is the difference between the M8057A and M8057B remote heads?
The M8057B remote head provides enhanced output voltage capabilities compared to the M8057A. For symbol rates below 58 Gbaud, the M8057B offers 80 mV to 0.9 Vpp single-ended and 160 mV to 1.8 Vpp differential, while the M8057A provides 50 mV to 0.6 Vpp single-ended and 100 mV to 1.2 Vpp differential. Both remote heads are required for each channel and contain an adjustable gain amplifier without re-timer, with a 0.85 m cable length.
How does the M8040A support PCI Express 5.0 testing?
The M8040A supports PCI Express 5.0 receiver testing through integrated clock recovery, interactive link training and SKP OS filtering for 8/16/32 GT/s PCI Express. Automated receiver test automation software N5991PB5A is available specifically for PCI Express 5.0 base specification compliance testing, along with N5991PA3A for automated LinkEQ RX and TX testing, enabling comprehensive PCIe 5 receiver characterization.
Can the M8040A lock to an external reference clock?
Yes, the M8040A can lock its system clock to an external reference clock. With Option 0G6, it provides reference clock multiplier functionality with selectable bandwidths of 2 MHz or 5 MHz. The system supports multiple clock modes including internal PLL with internal reference, reference PLL with bandwidth below 1 kHz for 10/100 MHz inputs, direct mode for 8.1 to 16.2 GHz, and m/n PLL with loop bandwidth 100 kHz for 10 MHz to 16.2 GHz input frequency range.
What automated test software is available for the M8040A?
Keysight provides several automated receiver test solutions for the M8040A including M8091BSPA for IEEE 802.3bs pre-compliance receiver testing (400GAUI and 200GAUI), M809256PA for OIF CEI-56G-VSR PAM4 pre-compliance testing, N5991PB5A for PCI Express 5.0 receiver test automation, N5991PA3A for automated LinkEQ RX and TX testing, N4917BSCA optical receiver stress test solution, and N5990A-104 for Thunderbolt 3 receiver testing. These solutions simplify compliance testing and characterization.
What is the Error Distribution Analysis feature on the M8040A?
The Error Distribution Analysis M8070EDAB is a licensed software package that offers burst error analysis, frame loss ratio estimation, and error mapping. It calculates metrics including symbol-error per frame distribution with user-definable symbol and frame length, consecutive error distance distribution, counted and estimated frame loss ratio, and provides an error map for insight into burst error mechanisms. It requires M8070B version 6.0 or higher.
What output amplitude accuracy can I expect from the M8040A?
The M8040A provides amplitude accuracy of plus or minus 10% plus or minus 10 mV typical (AC) at 5 Gbaud when measured with DCA-X N1045A using a clock pattern in the middle of the eye. The system supports data delay range of 0 to 10 ns with 100 fs resolution, and skew between normal and complement output is 3 ps maximum at the end of the recommended cable pair.
How many channels can the M8040A pattern generator support?
The M8045A pattern generator module supports one or two channels, with the second channel requiring Option 0G2 and an additional M8057A or M8057B remote head. The two-channel configuration enables emulation of aggressor lanes for crosstalk testing. Each channel can independently generate patterns from 2.025 to 32.4 Gbaud (Option G32) or up to 58.0 Gbaud (Option G64) with both NRZ and PAM4 formats selectable from the user interface.
