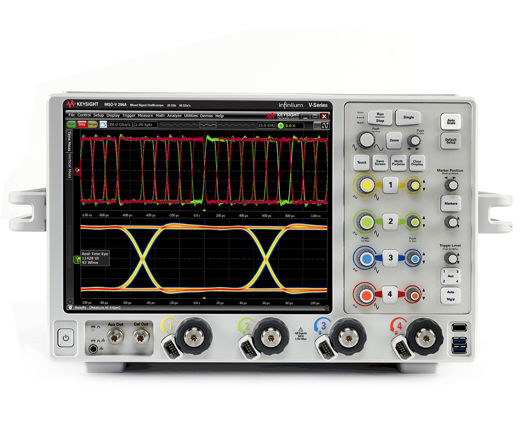

Keysight Technologies MSOV204A

4+16 channel 20 GHz, Analog Channel

The Keysight MSOV204A is 20 GHz, 4 Analog Channel mixed signal oscilloscope that is engineered to deliver superior measurement accuracy. In the positioning of emerging high-speed serial bus technology, identifying spectral content of wide-bandwidth RF signals, or analyzing transient physical phenomena, the truest representation of the signals under test is needed, and that is where the Keysight MSOV204A comes in. The Keysight Infiniium V-Series oscilloscopes are engineered to deliver superior measurement accuracy. Employing a proprietary Indium Phosphide integrated circuit process, the Keysight MSOV204A has enabled the V-Series to have high-frequency capability while yielding the low noise and jitter measurement floors.

The MSOV204A oscilloscope, along with other scopes in Keysight's V-series, offers more than 40 measurement-specific application packages including jitter, triggering, measurement and analysis tools and full compliance certification test suites. With 4 analog plus 16 digital channels, the Keysight MSOV204A can capture a longer signal trace with up to 80 GSa/s sample rate and 2 Gpts of acquisition memory.

Keysight MSOV204A - Features and Specifications:

  • 20 GHz bandwidth
  • Sample rate - 80 GSa/s
  • 2 Gpts memory
  • Low intrinsic jitter (100 fs)
  • True analog bandwidth to 33 GHz
  • 16 Digital Channels
  • 4 Analog Channels
  • High resolution 12.1 inch XGA capacitive touchscreen
  • USB 3.0 for fast data offload (up to 200 MB/s)
  • Five USB 3.0 host and device ports
  • Three USB 2.0 ports provide connectivity to USB keyboard, mouse, and other peripherals
  • PrecisionProbe for the most accurate correction to the probe tip
  • InfiniiMode feature allows differential, single-ended and common mode measurements without probe reconnection.

The Keysight MSOV204A is available for rent or lease at TRS-RenTelco with 365-day customer sup

Read More
  • Configurations
  • Resources
--, DSA
See Configuration Details
  • DSA

    Dsa Includes 100m Memory, High-Speed Sda And Ezjit Complete Features Installed

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Kit Wrist Strap

    Qty: 1
  • Mouse Optical Wheel

    Qty: 1
  • Adapter APC 3.5 mm(f) - APC 3.5 mm(f)

    Qty: 5
  • Power Cord Notched Heavy Duty Right Angle

    Qty: 1
  • Connector Saver Collar

    Qty: 1
  • Keyboard MINI

    Qty: 1
  • Cable Calibration

    Qty: 1
  • Cable MSO 90 Pin

    Qty: 1
  • Calibrator Board Assembly MSO

    Qty: 1
  • Case Pelican

    Qty: 1
  • Cover Front

    Qty: 1
