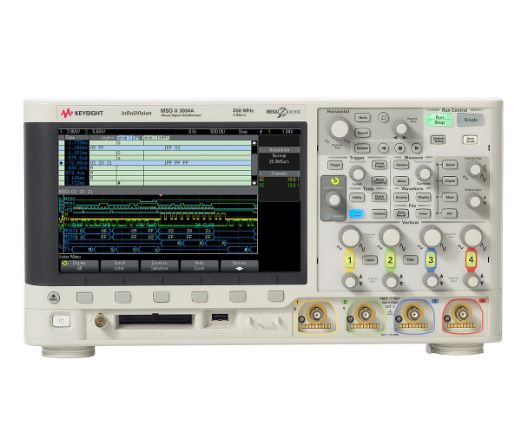

Keysight Technologies MSOX3034A

4+16 channel MSO 350MHz, with capacitive touchscreen

The Keysight (formerly Agilent) MSOX3034A digital, mixed signal oscilloscope comes with a 5-in-1 instrument integration, a waveform update rate of 1 million waveforms per second, and an upgradeable bandwidth. With 16 additional channels, this scope gives you enough channels for the job, with triggering, acquisition, and viewing all in one MSO.

This Keysight MSOX3034A is an industry-leading solution for serial decoding and signal modulation. You can also characterize signals with the help of the oscilloscope's built-in voltmeter and counter. It also has a protocol analyzer. The MSOX3034A comes with a 3-year warranty and a calibration certificate.

Keysight (formerly Agilent) MSOX3034A - Features and Specifications:

  • Analog bandwidth of 350 MHz
  • 4 analog input channels
  • Calculated rise time is less than or equal to 1 ns
  • Up to 4 Mpts of waveform memory
  • 8.5-inch WVGA display with 64 levels of intensity grading
  • Waveform update rate - 1 million wfm/s
  • Vertical resolution of 8 bits
  • Sample rate of 2 GS/s per channel

Get new or used Keysight (Formerly Agilent) MSOX3034A for rent or sale at TRS-RenTelco. Contact us or request a quote today.

Read More
  • Configurations
  • Resources
**, ** 232, ** AER, ** AMS, ** DVM, ** EDK, ** FLEX, ** LMT, ** LSS, ** MAT, ** MEMUP, ** PWR, ** SGM, ** SND, ** VID, ** WAVEGEN, --
See Configuration Details
  • **

    Base Model

  • ** 232

    RS232/UART Serial Decode and Trigger, fixed perpetual license

  • ** AER

    MIL-STD 1553 and ARINC 429 Serial Triggering and Analysis, fixed perpetual license

  • ** AMS

    CAN and LIN Automotive Serial Decode, fixed perpetual license

  • ** DVM

    Digital Volt Meter -2.5-digit DVM + 5-digit counter, fixed perpetual license

  • ** EDK

    Education Kit for DSO X 3000 Series Oscilloscopes, fixed perpetual license

  • ** LMT

    Limit Mask Testing, fixed perpetual license

  • ** LSS

    I2C and SPI Low Speed Serial Decode, fixed perpetual license

  • ** MAT

    Advanced math Measurement

  • ** MEMUP

    Memory Upgrade - 4 Mpts of MegaZoom IV

  • ** PWR

    Power Analysis Application for 3000X Series Oscilloscopes, fixed perpetual license

  • ** SGM

    Segmented Memory, fixed perpetual license

  • ** SND

    I2S Decode and Triggering Option, fixed perpetual license

  • ** VID

    Enhanced Video/TV Application Package, fixed perpetual license

  • ** WAVEGEN

    WaveGen 20 MHz Function/Arbitrary Waveform Generator, installed fixed perpetual license

  • ** FLEX

    Flexray Measurement

Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • Cord Power

    Qty: 1
  • Carrycase Soft

    Qty: 1
  • Cover Protection

    Qty: 1
  • Logic Cable Kit

    Qty: 1
  • Probe Passive x10 500 MHz

    Qty: 4
