Keysight Technologies N1046A-12F

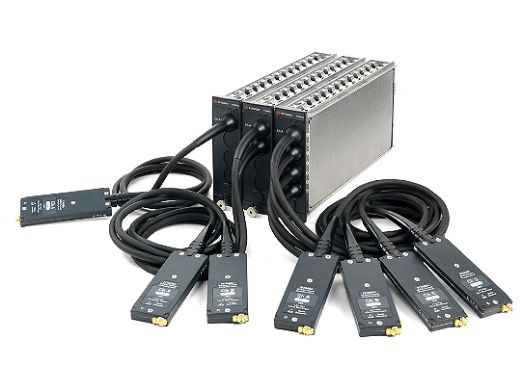

100 GHz, 2 Channel Remote Head, 1 mm, Female
Rent or Lease
Keysight N1046A-12F 100 GHz, 2 Channel Remote Head, 1 mm, Female for the 86100D DCA-X
Read More
- Configurations
- Resources
- FAQsAI
--, N1046A-12F
See Configuration Details
-
N1046A-12F
100 GHz, 2 Channel Remote Head, 1
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Torque Wrench 5/16 in 5 in lb
Qty: 1 -
Cable Management Kit Green
Qty: 6 -
Cable Management Kit Blue
Qty: 6 -
Clip Set Cable Management Pink
Qty: 6 -
Cable Management Set Yellow
Qty: 6 -
Filler Panel Assembly (Carbon Black)
Qty: 1 -
Torque Wrench 6 mm 4 in (8710-2812)
Qty: 1 -
Clip 2 remote Heads Carbon Black
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, N1046A-12F, R-50C-011-3, R-55A-001-3
See Configuration Details
-
N1046A-12F
100 GHz, 2 Channel Remote Head, 1
-
R-55A-001-3
KeysightCare Assured - Extend to 3yrs
-
R-50C-011-3
Calibration Plan - Return to Keysight - 3yrs
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Torque Wrench 5/16 in 5 in lb
Qty: 1 -
Torque Wrench 6 mm 4 in (8710-2812)
Qty: 1 -
Cable Management Set Yellow
Qty: 6 -
Clip Set Cable Management Pink
Qty: 6 -
Cable Management Kit Blue
Qty: 6 -
Cable Management Kit Green
Qty: 6 -
Clip 2 remote Heads Carbon Black
Qty: 1 -
Filler Panel Assembly (Carbon Black)
Qty: 1 -
Adapter 1.0 mm(m) - 1.85 mm(f)
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What bandwidth does the N1046A-12F module provide?
The N1046A-12F module provides 100 GHz electrical bandwidth with 2 channels. This ultra-wideband capability delivers a transition time of approximately 3.5 ps (10 to 90%, calculated from TR = 0.35/BW), making it one of the highest-bandwidth electrical sampling modules available for the N1000A DCA-X platform and well suited for characterization at data rates exceeding 80 GBd.
How many channels does the Keysight N1046A-12F configuration support?
The N1046A-12F configuration includes 2 electrical channels, both operating at 100 GHz bandwidth. The N1000A DCA-X mainframe supports up to 16 channels simultaneously when multiple modules are installed, so combining several N1046A modules enables large-scale parallel signal analysis on high-speed digital designs.
What is the RMS noise specification for the N1046A at 100 GHz?
The N1046A at 100 GHz bandwidth (Option 1xF) has characteristic RMS noise of 600 to 750 microvolts and a maximum specification of 950 microvolts. This low noise floor, combined with the module's 16-bit hardware A/D converter, ensures an excellent signal-to-noise ratio for accurate eye diagram and jitter measurements on very high-speed signals.
Is the N1046A-12F compatible with SIRC filtering?
Yes, the N1046A supports System Impulse Response Correction (SIRC) filtering when used with Option IRC. For the 100 GHz configuration (Option 1xF), the SIRC filter range spans from 22.5 GHz to 130 GHz. SIRC filtering improves reference filter response, enables non-standard reference receiver rates or bandwidths, and can increase the effective channel bandwidth by up to 50%.
What is the DC accuracy specification for the N1046A module?
The N1046A provides single-marker DC accuracy of plus or minus 2 mV plus or minus 4% of (reading minus channel offset). This specification is valid when the module is operated within the warranted temperature range of +10 to +40 degrees Celsius and after at least one hour of warm-up with valid self-calibration. The DC offset range is plus or minus 500 mV referenced from the center of the screen.
What sampling rate and vertical resolution does the N1046A deliver?
The N1046A supports a sample rate up to 250 kHz when installed in the N1000A DCA-X mainframe. It uses a 16-bit hardware A/D converter, which is the highest vertical resolution available in the DCA-X module family. This combination of fast sampling and fine amplitude resolution is critical for capturing subtle signal impairments in next-generation serial link designs.
What is the maximum safe input signal level for the N1046A?
The N1046A has a maximum safe input signal range of +2 V to negative 1 V. The specified input dynamic range relative to channel offset is plus or minus 400 mV, and the scale factor can be adjusted from 1 mV per division to 100 mV per division. The nominal input impedance is 50 ohms.
What applications is the N1046A 100 GHz module designed for?
The N1046A 100 GHz module is designed for precision measurements on ultra-high-speed digital designs from 50 MBd to more than 80 GBd. Key applications include electrical ASIC, FPGA, and IC design characterization, optical transceiver production test, serial bus compliance verification, and high-speed channel analysis via TDR/TDT and S-parameter measurements on cables, connectors, and PCBs.
